Date & Time (UTC) 2021-07-31 15:01:45.1
Date & Time (Local) 1400/5/9  19:31:45.1

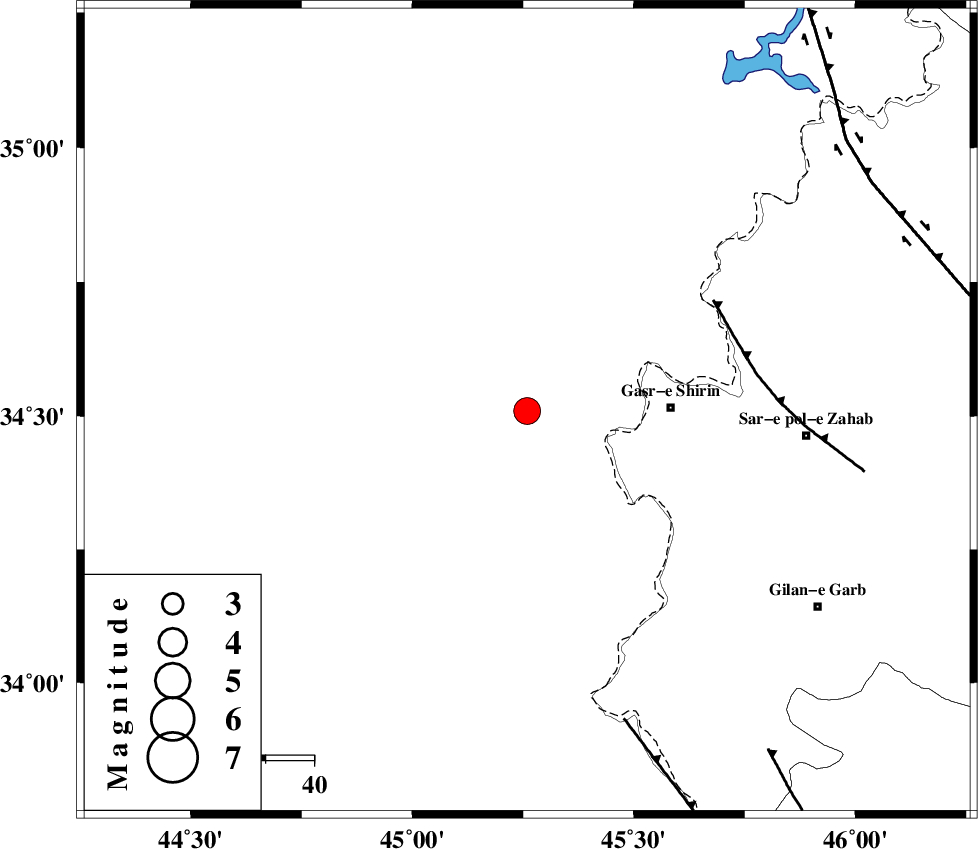

Location Lat:34.509 Lon: 45.259
Region Iraq, 30 km -West of Qasr-E-Shirin
Nearest Cities
23 km North West of Khosravi, Kermanshah Province
30 km West of Qasr-E-Shirin, Kermanshah Province
32 km North West of Seyyed sohrab, Kermanshah Province
38 km West of Aqabarar, Kermanshah Province
47 km West of Mirmiru, Kermanshah Province
Depth 12 km
Faults within 150 km:
MFF8 (Length: 48 km) , Distance to epicenter: 45 km
ZFF4 (Length: 128 km) , Distance to epicenter: 67 km
HZF4 (Length: 492 km) , Distance to epicenter: 85 km
Number of Phases 11
RMS 0.5
Number of Stations 11
Error in Latitude >4.9 km
Error in Longitude 4.9 km
Error in Depth 11.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
164566IIEES SCMAHBZ 212021-07-31 15:02:242021-08-03 08:20:00n
164567IIEES SCZNJKZ 0.0712021-07-31 15:02:412021-08-03 08:20:00n
164568IIEES SCGTMRZ 0.312021-07-31 15:02:442021-08-03 08:20:00n
164569IIEES SCKHMZZ 0.112021-07-31 15:02:482021-08-03 08:20:00n
164570IIEES SCGIDEZ 0.212021-07-31 15:02:542021-08-03 08:20:00n
164571IIEES SCGRMIZ 0.0712021-07-31 15:02:582021-08-03 08:20:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCILBAZ EPg E2021-07-31 15:02:070.1y0132138
IIEES SCSNGEZ EPn E2021-07-31 15:02:17-0.1y020271
IIEES SCMAHBZ EPn E2021-07-31 15:02:24-0.3y02549
IIEES SCAZRZ EPn E2021-07-31 15:02:370.2y035811
IIEES SCZNJKZ EPn E2021-07-31 15:02:41-0.6y039252
IIEES SCQABGZ EPn E2021-07-31 15:02:450.5y041671
IIEES SCGTMRZ EPn E2021-07-31 15:02:44-0.8y0424122
IIEES SCKHMZZ EPn E2021-07-31 15:02:480.6y0442101
IIEES SCMRDZ EPn E2021-07-31 15:02:520.9y04685
IIEES SCGIDEZ EPn E2021-07-31 15:02:540.3y049257
IIEES SCGRMIZ EPn E2021-07-31 15:02:58-0.6y053226
