Date & Time (UTC) 2021-10-05 11:36:02.1
Date & Time (Local) 1400/7/13  15:06:02.1

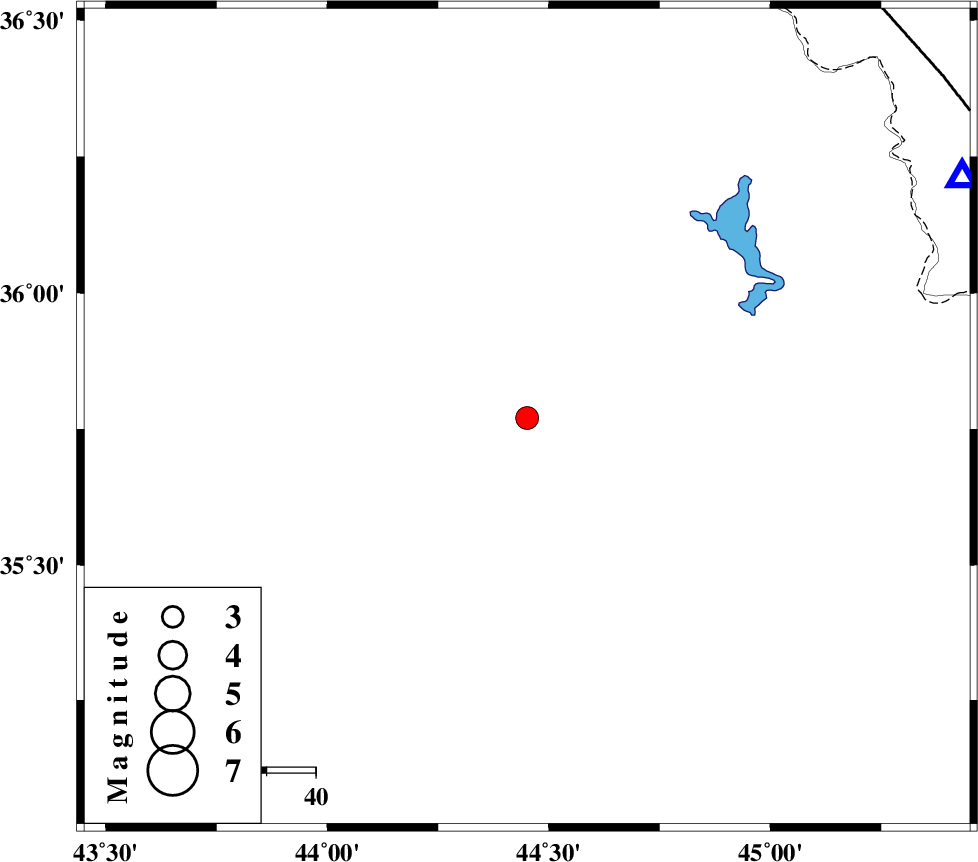

Location Lat:35.771 Lon: 44.451
Region Iraq, 92 km North-West of Sulaymaniyah
Nearest Cities
92 km North West of Sulaymaniyah, Iraq Province
95 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province
101 km South West of Sardasht, Azarbaijan Gharbi Province
107 km South West of Bersiv, Azarbaijan Gharbi Province
107 km South West of Felas, Azarbaijan Gharbi Province
Depth 12 km
Faults within 150 km:
PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 107 km
HZF4 (Length: 492 km) , Distance to epicenter: 111 km
Number of Phases 9
RMS 0.5
Number of Stations 9
Error in Latitude >9.6 km
Error in Longitude 9.6 km
Error in Depth 29.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here


UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165735IIEES SCSRSLZ 112021-10-05 11:36:192021-10-11 06:53:00n
165736IIEES SCMAHBZ 112021-10-05 11:36:282021-10-11 06:53:00n
165737IIEES SCSNGEZ 0.212021-10-05 11:36:442021-10-11 06:53:00n
165738IIEES SCKHMZZ 0.0312021-10-05 11:37:182021-10-11 06:53:00n


AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCSRSLZ EPg E2021-10-05 11:36:190.1y010161
IIEES SCMAHBZ EPg E2021-10-05 11:36:28-0.2y015846
IIEES SCSNGEZ EPn E2021-10-05 11:36:440.5y0274106
IIEES SCILBAZ EPn E2021-10-05 11:36:460.9y0288146
IIEES SCZNJKZ EPn E2021-10-05 11:36:56-2.8n439475
IIEES SCMAKUZ EPn E2021-10-05 11:36:59-0.1y03983
IIEES SCGRMIZ EPn E2021-10-05 11:36:50-16.6n445542
IIEES SCKHMZZ EPn E2021-10-05 11:37:18-0.7y0553114
IIEES SCGTMRZ EPn E2021-10-05 11:37:19-0.6y0565130
