Magnitude |
2.9 |
| Date & Time (UTC) | 2016-03-05 08:53:59.9 |
| Date & Time (Local) | 1394/12/15 12:23:59.9 |

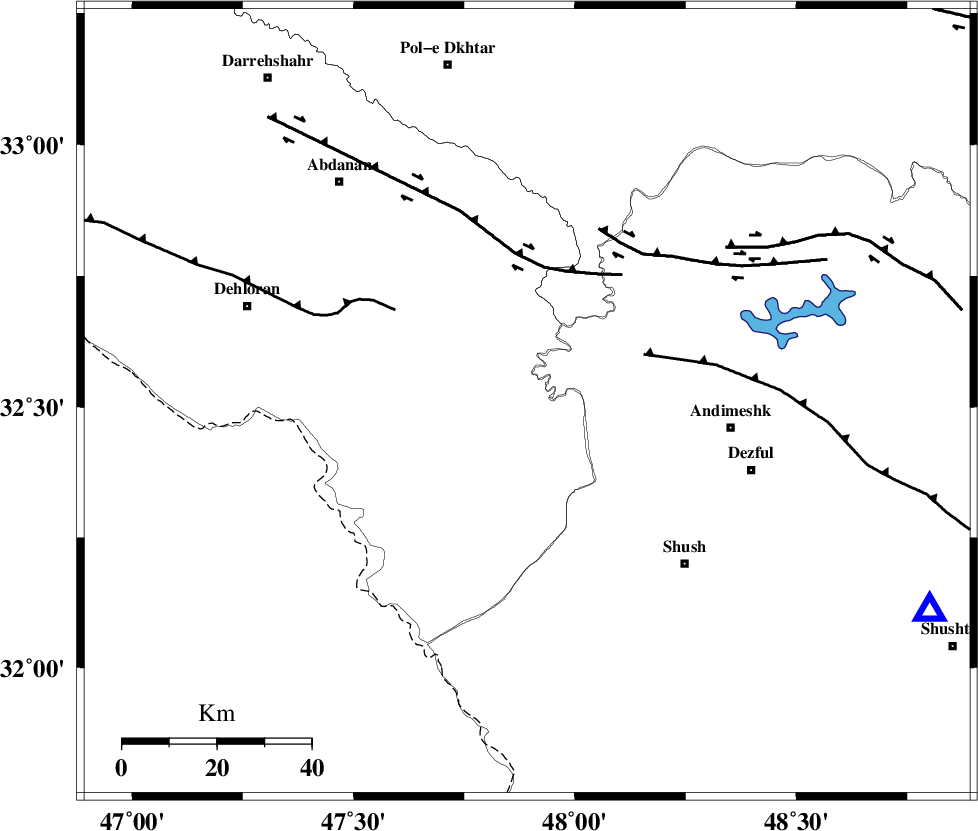

| Location | Lat:32.509 Lon: 47.892 |
| Region | Ilam Province, 43 km -West of Andimeshk |
Nearest Cities |
|
| 38 km South West of Hoseinieh, Khoozestan Province | |
| 42 km South West of Bidruyeh, Khoozestan Province | |
| 43 km North West of Andimeshk, Khoozestan Province | |
| 48 km North West of Shush, Khoozestan Province | |
| 50 km North West of Dezful, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 27 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 29 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 34 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 6 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104787 | IIEES | KHMZ | E | 49 | 0.47 | 2016-03-05 08:55:24 | 2016-03-05 10:15:00 | n |
| 104788 | IIEES | KHMZ | N | 42.5 | 0.62 | 2016-03-05 08:55:26 | 2016-03-05 10:15:00 | n |
| 104789 | IIEES | SNGE | N | 29.1 | 0.58 | 2016-03-05 08:55:41 | 2016-03-05 10:15:00 | n |
| 104790 | IIEES | ASAO | E | 29.5 | 0.59 | 2016-03-05 08:55:41 | 2016-03-05 10:15:00 | n |
| 104791 | IIEES | ASAO | N | 34.4 | 0.49 | 2016-03-05 08:55:45 | 2016-03-05 10:15:00 | n |
| 104792 | IIEES | GHVR | E | 15.8 | 0.57 | 2016-03-05 08:56:08 | 2016-03-05 10:15:00 | n |
| 104793 | IIEES | AHRM | E | 13.7 | 0.72 | 2016-03-05 08:56:52 | 2016-03-05 10:15:00 | n |
| 104794 | IIEES | AHRM | N | 19.3 | 0.36 | 2016-03-05 08:56:52 | 2016-03-05 10:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-03-05 08:54:38 | 0 | y | 237 | 54 | |
| IIEES | SNGE | Z | Pn | E | 2016-03-05 08:54:43 | -0.23 | y | 291 | 350 | |
| IIEES | SNGE | N | Sg | E | 2016-03-05 08:55:21 | 0 | y | 291 | 350 | |
| IIEES | ASAO | Z | Pn | E | 2016-03-05 08:54:45 | 0.49 | y | 301 | 41 | |
| IIEES | ASAO | E | Sg | E | 2016-03-05 08:55:24 | -0.14 | y | 301 | 41 | |
| IIEES | GHVR | Z | Pn | E | 2016-03-05 08:54:55 | 0.22 | y | 381 | 54 | |
| IIEES | NASN | Z | Pn | E | 2016-03-05 08:55:04 | -0.45 | y | 462 | 85 | |
| IIEES | AHRM | Z | Pn | E | 2016-03-05 08:55:23 | 11.43 | n | 4 | 519 | 140 |
| IIEES | YZKH | Z | Pn | E | 2016-03-05 08:55:26 | 0.05 | y | 630 | 89 |
