Magnitude |
2.6 |
| Date & Time (UTC) | 2016-03-06 03:07:39.3 |
| Date & Time (Local) | 1394/12/16 06:37:39.3 |

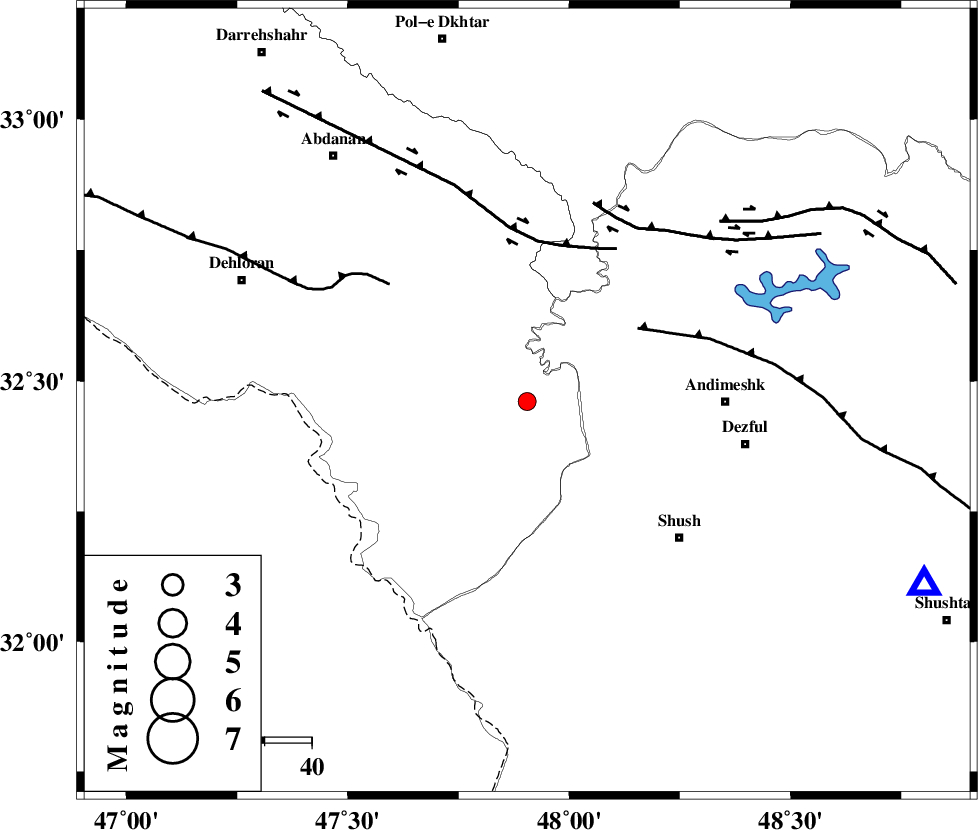

| Location | Lat:32.461 Lon: 47.905 |
| Region | Ilam Province, 42 km -West of Andimeshk |
Nearest Cities |
|
| 40 km South West of Hoseinieh, Khoozestan Province | |
| 42 km North West of Andimeshk, Khoozestan Province | |
| 43 km North West of Shush, Khoozestan Province | |
| 45 km South West of Bidruyeh, Khoozestan Province | |
| 47 km North West of Amaleh teimur, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 34 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 38 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 6.9 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104795 | IIEES | KHMZ | E | 32.9 | 0.26 | 2016-03-06 03:08:52 | 2016-03-06 06:44:00 | n |
| 104796 | IIEES | KHMZ | N | 28.7 | 0.61 | 2016-03-06 03:08:53 | 2016-03-06 06:44:00 | n |
| 104797 | IIEES | SNGE | N | 14.5 | 0.45 | 2016-03-06 03:09:14 | 2016-03-06 06:44:00 | n |
| 104798 | IIEES | ASAO | E | 21.7 | 0.46 | 2016-03-06 03:09:12 | 2016-03-06 06:44:00 | n |
| 104799 | IIEES | ASAO | N | 25.9 | 0.56 | 2016-03-06 03:09:12 | 2016-03-06 06:44:00 | n |
| 104800 | IIEES | GHVR | E | 11.6 | 0.38 | 2016-03-06 03:09:33 | 2016-03-06 06:44:00 | n |
| 104801 | IIEES | NASN | E | 5.2 | 0.77 | 2016-03-06 03:10:03 | 2016-03-06 06:44:00 | n |
| 104802 | IIEES | DAMV | N | 3.6 | 0.45 | 2016-03-06 03:10:10 | 2016-03-06 06:44:00 | n |
| 104803 | IIEES | DAMV | E | 4.4 | 0.55 | 2016-03-06 03:10:11 | 2016-03-06 06:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-03-06 03:08:18 | -0.09 | y | 239 | 53 | |
| IIEES | KHMZ | N | Sg | E | 2016-03-06 03:08:47 | 0 | y | 239 | 53 | |
| IIEES | SNGE | Z | Pn | E | 2016-03-06 03:08:23 | -0.1 | y | 296 | 350 | |
| IIEES | SNGE | N | Sg | E | 2016-03-06 03:09:02 | 0.06 | y | 296 | 350 | |
| IIEES | ASAO | Z | Pn | E | 2016-03-06 03:08:26 | 1.02 | n | 4 | 304 | 40 |
| IIEES | GHVR | Z | Pn | E | 2016-03-06 03:08:35 | 0.53 | y | 383 | 53 | |
| IIEES | NASN | Z | Pn | E | 2016-03-06 03:08:44 | -0.05 | y | 462 | 84 | |
| IIEES | DAMV | Z | Pn | E | 2016-03-06 03:08:50 | -0.42 | y | 514 | 46 |
