Magnitude |
3.5 |
| Date & Time (UTC) | 2016-03-13 23:27:32.6 |
| Date & Time (Local) | 1394/12/24 02:57:32.6 |

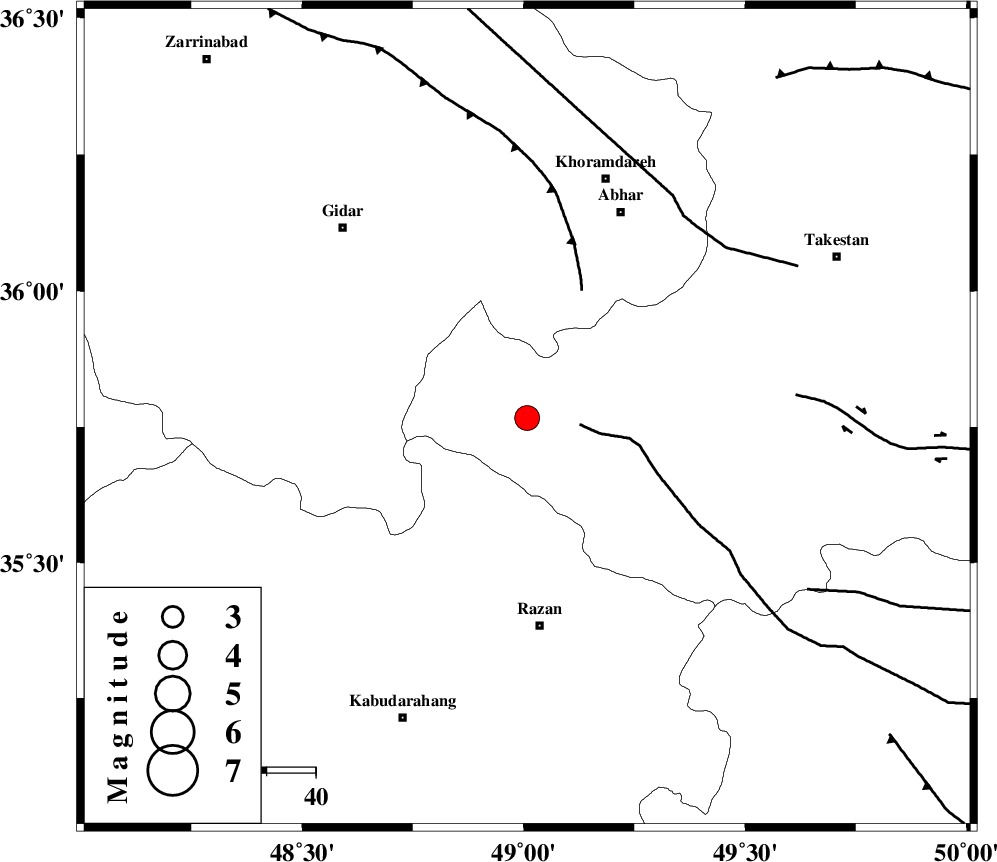

| Location | Lat:35.767 Lon: 49.008 |
| Region | Ghazvin Province, 43 km North of Razan |
Nearest Cities |
|
| 25 km North West of Ab-e garm, Ghazvin Province | |
| 29 km North West of Avaj, Ghazvin Province | |
| 31 km North East of Kahla, Zanjan Province | |
| 34 km North East of Khorandeh, Hamedan Province | |
| 35 km South West of Darsajin, Zanjan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 11 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 28 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 52 km | |
| Number of Phases | 18 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 104972 | IIEES | THKV | E | 479.5 | 0.41 | 2016-03-13 23:28:23 | 2016-03-14 08:05:00 | n |
| 104973 | IIEES | THKV | N | 445.4 | 0.31 | 2016-03-13 23:28:34 | 2016-03-14 08:05:00 | n |
| 104974 | IIEES | CHTH | E | 272.5 | 0.53 | 2016-03-13 23:28:30 | 2016-03-14 08:05:00 | n |
| 104975 | IIEES | GHVR | N | 380.4 | 0.92 | 2016-03-13 23:28:58 | 2016-03-14 08:05:00 | n |
| 104976 | IIEES | GHVR | E | 226.5 | 0.74 | 2016-03-13 23:29:00 | 2016-03-14 08:05:00 | n |
| 104977 | IIEES | DAMV | N | 283.5 | 0.4 | 2016-03-13 23:28:51 | 2016-03-14 08:05:00 | n |
| 104978 | IIEES | DAMV | E | 209.2 | 0.59 | 2016-03-13 23:28:59 | 2016-03-14 08:05:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ZNJK | Z | Pg | E | 2016-03-13 23:27:50 | 0.37 | y | 104 | 344 | |
| IIEES | ZNJK | E | Sg | E | 2016-03-13 23:28:03 | 0.2 | y | 104 | 344 | |
| IIEES | ASAO | Z | Pg | E | 2016-03-13 23:27:59 | -0.06 | y | 164 | 145 | |
| IIEES | SNGE | Z | Pg | E | 2016-03-13 23:27:59 | -0.93 | y | 168 | 244 | |
| IIEES | SNGE | N | Sg | E | 2016-03-13 23:28:20 | -0.05 | y | 168 | 244 | |
| IIEES | THKV | Z | Pg | E | 2016-03-13 23:27:55 | -4.75 | n | 4 | 170 | 84 |
| IIEES | CHTH | Z | Pg | E | 2016-03-13 23:28:03 | -1.29 | y | 192 | 85 | |
| IIEES | KHMZ | Z | Pn | E | 2016-03-13 23:28:11 | 0.79 | y | 241 | 158 | |
| IIEES | GHVR | Z | Pn | E | 2016-03-13 23:28:12 | 0.92 | y | 249 | 124 | |
| IIEES | GHVR | N | Sg | E | 2016-03-13 23:28:42 | -0.02 | y | 249 | 124 | |
| IIEES | DAMV | Z | Pn | E | 2016-03-13 23:28:13 | 0 | y | 269 | 92 | |
| IIEES | DAMV | N | Sg | E | 2016-03-13 23:28:48 | -0.36 | y | 269 | 92 | |
| IIEES | GRMI | Z | Pn | E | 2016-03-13 23:28:27 | 3.01 | n | 4 | 352 | 344 |
| IIEES | YZKH | Z | Pn | E | 2016-03-13 23:28:59 | 0.2 | y | 637 | 124 | |
| IIEES | MRVT | Z | Pn | E | 2016-03-13 23:29:03 | 0.18 | y | 666 | 70 | |
| IIEES | TABS | Z | Pn | E | 2016-03-13 23:29:17 | 0.76 | y | 779 | 105 | |
| IIEES | BJRD | Z | Pn | E | 2016-03-13 23:29:17 | -0.09 | y | 780 | 72 | |
| IIEES | BSRN | Z | Pn | E | 2016-03-13 23:29:47 | -0.12 | y | 1026 | 111 |
