Magnitude |
3.6 |
| Date & Time (UTC) | 2016-04-12 14:10:12.2 |
| Date & Time (Local) | 1395/1/24 18:40:12.2 |

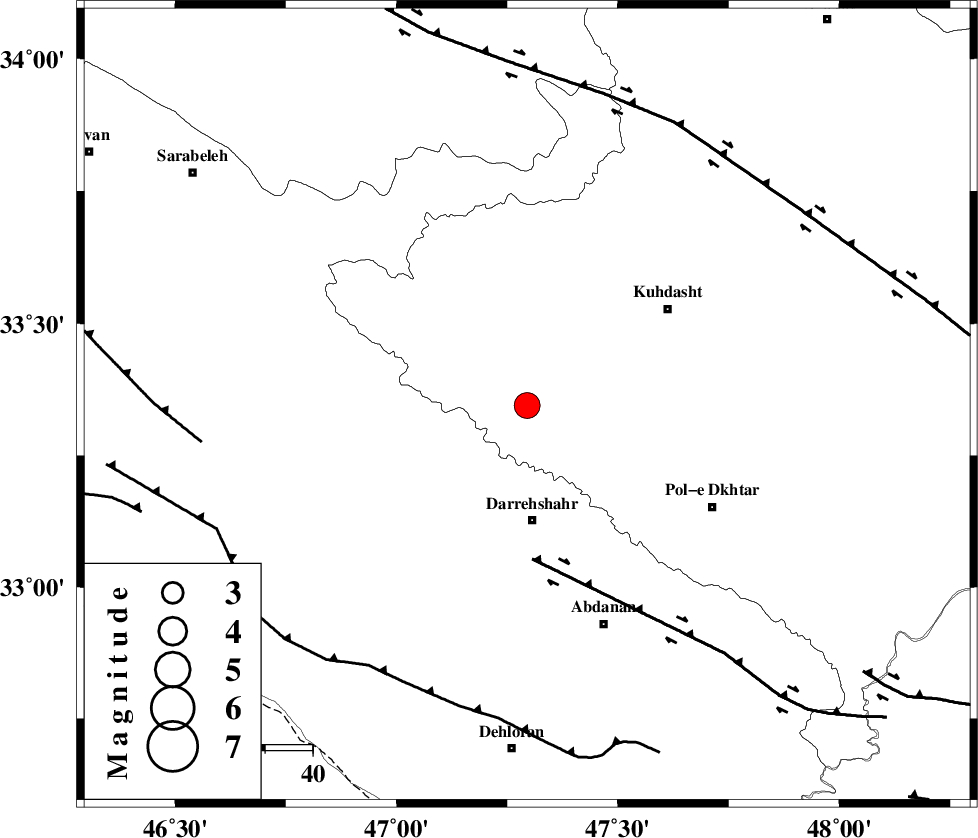

| Location | Lat:33.345 Lon: 47.295 |
| Region | Lorestan Province, 24 km North of Darreh Shahr |
Nearest Cities |
|
| 8 km of Kunani, Lorestan Province | |
| 14 km North West of Suri, Lorestan Province | |
| 14 km South of Garab, Lorestan Province | |
| 18 km North West of Chaqabol, Lorestan Province | |
| 20 km North of Dashtabad-e olia, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 32 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 64 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 67 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | 6.8 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 105390 | IIEES | SNGE | N | 300.5 | 0.41 | 2016-04-12 14:11:24 | 2016-04-13 05:38:00 | n |
| 105391 | IIEES | KHMZ | N | 457.1 | 0.86 | 2016-04-12 14:11:45 | 2016-04-13 05:38:00 | n |
| 105392 | IIEES | ASAO | N | 194.5 | 0.57 | 2016-04-12 14:11:49 | 2016-04-13 05:38:00 | n |
| 105393 | IIEES | ASAO | E | 169.6 | 0.63 | 2016-04-12 14:11:55 | 2016-04-13 05:38:00 | n |
| 105394 | IIEES | GHVR | E | 100.3 | 0.7 | 2016-04-12 14:12:15 | 2016-04-13 05:38:00 | n |
| 105395 | IIEES | GHVR | N | 211.4 | 0.94 | 2016-04-12 14:12:35 | 2016-04-13 05:38:00 | n |
| 105396 | IIEES | THKV | N | 45.8 | 0.56 | 2016-04-12 14:12:31 | 2016-04-13 05:38:00 | n |
| 105397 | IIEES | DAMV | E | 28.7 | 0.6 | 2016-04-12 14:12:31 | 2016-04-13 05:38:00 | n |
| 105398 | IIEES | DAMV | N | 58 | 0.86 | 2016-04-12 14:12:50 | 2016-04-13 05:38:00 | n |
| 105399 | IIEES | NASN | E | 21 | 0.68 | 2016-04-12 14:12:51 | 2016-04-13 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2016-04-12 14:10:44 | -0.08 | y | 194 | 1 | |
| IIEES | KHMZ | Z | Pn | E | 2016-04-12 14:10:51 | 0.03 | y | 252 | 79 | |
| IIEES | KHMZ | N | Sg | E | 2016-04-12 14:11:23 | -0.14 | y | 252 | 79 | |
| IIEES | ASAO | Z | P | E | 2016-04-12 14:10:56 | 0.79 | y | 285 | 61 | |
| IIEES | GHVR | Z | Pn | E | 2016-04-12 14:11:08 | 0.77 | y | 386 | 70 | |
| IIEES | ZNJK | Z | Pn | E | 2016-04-12 14:11:19 | 10.74 | n | 4 | 390 | 19 |
| IIEES | THKV | Z | Pn | E | 2016-04-12 14:11:13 | -0.54 | y | 435 | 48 | |
| IIEES | CHTH | Z | Pn | E | 2016-04-12 14:11:15 | -0.36 | y | 452 | 50 | |
| IIEES | DAMV | Z | Pn | E | 2016-04-12 14:11:22 | 0.11 | y | 499 | 58 | |
| IIEES | NASN | Z | Pn | E | 2016-04-12 14:11:24 | -0.2 | y | 518 | 95 | |
| IIEES | GRMI | Z | Pn | E | 2016-04-12 14:11:35 | -0.11 | y | 609 | 5 | |
| IIEES | AHRM | Z | Pn | E | 2016-04-12 14:11:37 | -0.03 | y | 626 | 141 | |
| IIEES | YZKH | Z | Pn | E | 2016-04-12 14:11:45 | -0.43 | y | 691 | 97 | |
| IIEES | SHRO | Z | Pn | E | 2016-04-12 14:12:05 | -0.08 | y | 852 | 67 | |
| IIEES | TABS | Z | Pn | E | 2016-04-12 14:12:13 | -0.28 | y | 913 | 85 | |
| IIEES | BSRN | Z | Pn | E | 2016-04-12 14:12:38 | -0.81 | y | 1120 | 95 |
