Magnitude |
2.5 |
| Date & Time (UTC) | 2016-05-18 19:43:36.4 |
| Date & Time (Local) | 1395/2/30 00:13:36.4 |
| Location | Lat:33.172 Lon: 49.51 |
| Region | Lorestan Province, 32 km South of Azna |
Nearest Cities |
|
| 21 km West of Shapoorabad, Lorestan Province | |
| 21 km West of Shapoorabad, Lorestan Province | |
| 26 km South of Sur, Lorestan Province | |
| 30 km North of Parchal, Lorestan Province | |
| 31 km South West of Aligudarz, Lorestan Province | |
| Depth | 14 km |
| Agency | |

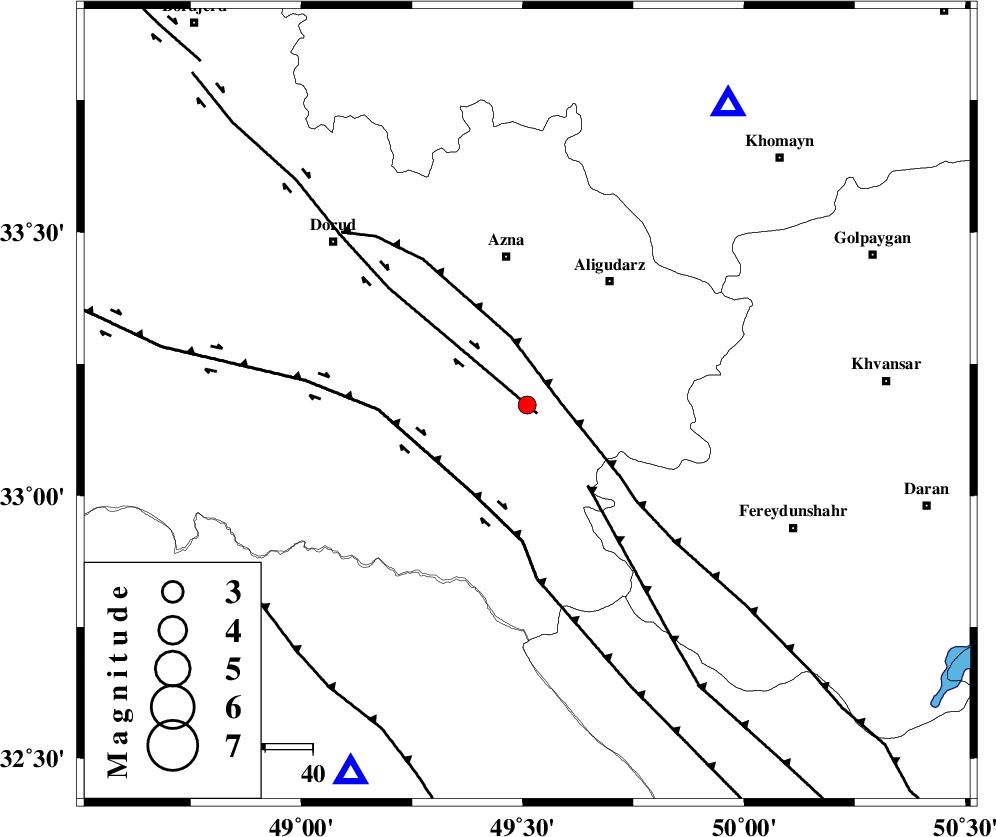

Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 3 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 7 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 21 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 7 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106203 | IIEES | KHMZ | E | 162.9 | 0.31 | 2016-05-18 19:44:01 | 2016-05-21 05:17:00 | n |
| 106204 | IIEES | ASAO | N | 66.9 | 0.76 | 2016-05-18 19:44:37 | 2016-05-21 05:17:00 | n |
| 106205 | IIEES | GHVR | N | 19.8 | 0.57 | 2016-05-18 19:44:45 | 2016-05-21 05:17:00 | n |
| 106206 | IIEES | GHVR | E | 39.8 | 0.89 | 2016-05-18 19:44:47 | 2016-05-21 05:17:00 | n |
| 106207 | IIEES | NASN | E | 13.3 | 0.72 | 2016-05-18 19:45:05 | 2016-05-21 05:17:00 | n |
| 106208 | IIEES | NASN | N | 18 | 0.43 | 2016-05-18 19:45:06 | 2016-05-21 05:17:00 | n |
| 106209 | IIEES | YZKH | E | 3.6 | 0.52 | 2016-05-18 19:45:57 | 2016-05-21 05:17:00 | n |
| 106210 | IIEES | YZKH | N | 3.5 | 0.63 | 2016-05-18 19:46:07 | 2016-05-21 05:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2016-05-18 19:43:47 | -1.99 | n | 4 | 75.8 | 34 |
| IIEES | ASAO | Z | Pg | E | 2016-05-18 19:44:02 | -0.52 | y | 160 | 17 | |
| IIEES | GHVR | Z | Pn | E | 2016-05-18 19:44:10 | -0.01 | y | 216 | 47 | |
| IIEES | GHVR | N | Sg | E | 2016-05-18 19:44:38 | 0.23 | y | 216 | 47 | |
| IIEES | NASN | Z | Pn | E | 2016-05-18 19:44:23 | 0.22 | y | 311 | 97 | |
| IIEES | NASN | N | Sg | E | 2016-05-18 19:45:03 | -0.28 | y | 311 | 97 | |
| IIEES | CHTH | Z | Pn | E | 2016-05-18 19:44:26 | 0.34 | y | 338 | 26 | |
| IIEES | YZKH | Z | Pn | E | 2016-05-18 19:44:44 | 0.09 | y | 484 | 99 |
