Magnitude |
3.4 |
| Date & Time (UTC) | 2016-06-07 18:50:25.4 |
| Date & Time (Local) | 1395/3/18 23:20:25.4 |

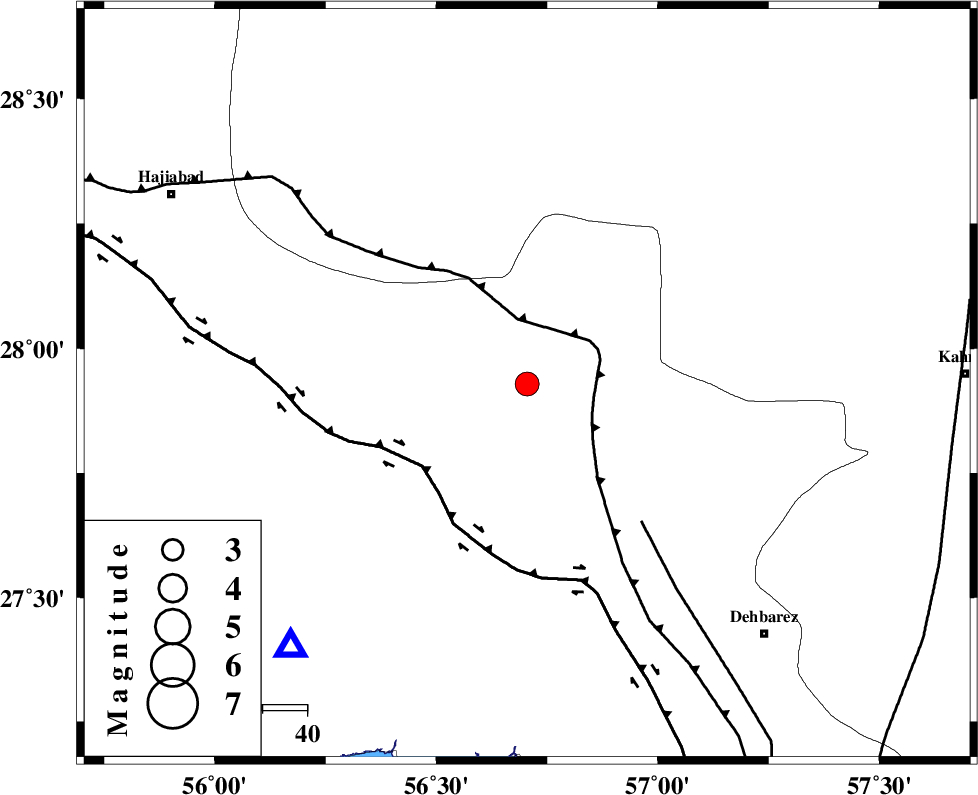

| Location | Lat:27.929 Lon: 56.705 |
| Region | Hormozgan Province, 97 km -West of Kahnuj |
Nearest Cities |
|
| 47 km East of Fareqan, Hormozgan Province | |
| 49 km South West of Sarkhan, Kerman Province | |
| 56 km North West of Ziaratali, Hormozgan Province | |
| 57 km South West of Faryab, Kerman Province | |
| 58 km North West of Fariab, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 30 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 40 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 4.3 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 106590 | IIEES | KRBR | E | 385.3 | 0.41 | 2016-06-07 18:51:31 | 2016-06-08 04:03:00 | n |
| 106591 | IIEES | KRBR | N | 419.5 | 0.46 | 2016-06-07 18:51:31 | 2016-06-08 04:03:00 | n |
| 106592 | IIEES | CHBR | N | 56.4 | 0.44 | 2016-06-07 18:52:16 | 2016-06-08 04:03:00 | n |
| 106593 | IIEES | CHBR | E | 30.9 | 0.34 | 2016-06-07 18:52:20 | 2016-06-08 04:03:00 | n |
| 106594 | IIEES | BSRN | N | 17.4 | 0.59 | 2016-06-07 18:52:53 | 2016-06-08 04:03:00 | n |
| 106595 | IIEES | BSRN | E | 17.3 | 0.41 | 2016-06-07 18:52:58 | 2016-06-08 04:03:00 | n |
| 106596 | IIEES | YZKH | N | 9.5 | 0.48 | 2016-06-07 18:53:07 | 2016-06-08 04:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2016-06-07 18:51:01 | 0.13 | y | 228 | 1 | |
| IIEES | KRBR | N | Sg | E | 2016-06-07 18:51:29 | -0.16 | y | 228 | 1 | |
| IIEES | ZHSF | Z | Pn | E | 2016-06-07 18:51:27 | 0.26 | y | 439 | 64 | |
| IIEES | CHBR | Z | Pn | E | 2016-06-07 18:51:29 | -0.28 | y | 456 | 124 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-07 18:51:35 | 0.09 | y | 505 | 27 | |
| IIEES | YZKH | Z | Pn | E | 2016-06-07 18:51:39 | 0.04 | y | 535 | 338 | |
| IIEES | TABS | Z | Pn | E | 2016-06-07 18:51:52 | 0.01 | y | 635 | 3 | |
| IIEES | SHRT | Z | Pn | E | 2016-06-07 18:52:02 | -0.11 | y | 721 | 28 |
