Magnitude |
4 |
| Date & Time (UTC) | 2016-06-26 05:38:55.8 |
| Date & Time (Local) | 1395/4/6 10:08:55.8 |

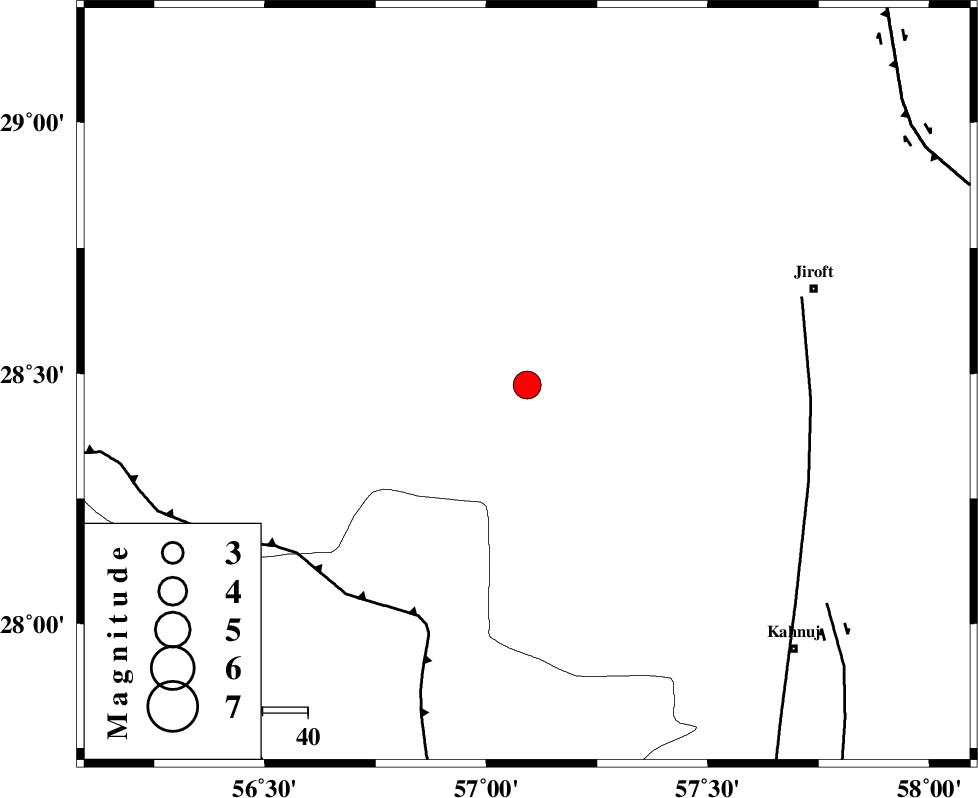

| Location | Lat:28.477 Lon: 57.092 |
| Region | Kerman Province, 67 km South-West of Jiroft |
Nearest Cities |
|
| 26 km North East of Sarkhan, Kerman Province | |
| 27 km South of Dolatabad, Kerman Province | |
| 38 km North West of Hurpasefid, Kerman Province | |
| 49 km North West of Faryab, Kerman Province | |
| 53 km North West of Mehrueye-e paeen, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 57 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 63 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 82 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | 5 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107031 | IIEES | KRBR | N | 2282.5 | 0.48 | 2016-06-26 05:39:46 | 2016-06-26 06:14:00 | n |
| 107032 | IIEES | KRBR | E | 1720.6 | 0.43 | 2016-06-26 05:39:53 | 2016-06-26 06:14:00 | n |
| 107033 | IIEES | BSRN | E | 120.7 | 0.69 | 2016-06-26 05:41:07 | 2016-06-26 06:14:00 | n |
| 107034 | IIEES | BSRN | N | 92.3 | 0.59 | 2016-06-26 05:41:13 | 2016-06-26 06:14:00 | n |
| 107035 | IIEES | CHBR | N | 234.6 | 0.43 | 2016-06-26 05:40:49 | 2016-06-26 06:14:00 | n |
| 107036 | IIEES | CHBR | E | 112.6 | 0.3 | 2016-06-26 05:40:50 | 2016-06-26 06:14:00 | n |
| 107037 | IIEES | YZKH | N | 48.3 | 0.46 | 2016-06-26 05:41:32 | 2016-06-26 06:14:00 | n |
| 107038 | IIEES | YZKH | E | 59.3 | 0.4 | 2016-06-26 05:41:32 | 2016-06-26 06:14:00 | n |
| 107039 | IIEES | AHRM | N | 157.6 | 0.6 | 2016-06-26 05:41:12 | 2016-06-26 06:14:00 | n |
| 107040 | IIEES | AHRM | E | 87.2 | 0.37 | 2016-06-26 05:41:14 | 2016-06-26 06:14:00 | n |
| 107041 | IIEES | TABS | N | 42.8 | 0.35 | 2016-06-26 05:41:49 | 2016-06-26 06:14:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-06-26 05:39:23 | -0.46 | y | 170 | 349 | |
| IIEES | KRBR | N | Sg | E | 2016-06-26 05:39:44 | -0.26 | y | 170 | 349 | |
| IIEES | ZHSF | Z | Pn | E | 2016-06-26 05:39:50 | 0.13 | y | 380 | 70 | |
| IIEES | BSRN | Z | Pn | E | 2016-06-26 05:39:57 | 0.33 | y | 433 | 26 | |
| IIEES | CHBR | Z | Pn | E | 2016-06-26 05:40:00 | -0.53 | y | 464 | 133 | |
| IIEES | YZKH | Z | Pn | E | 2016-06-26 05:40:05 | 0.58 | y | 496 | 332 | |
| IIEES | AHRM | Z | Pn | E | 2016-06-26 05:40:13 | -0.01 | y | 568 | 276 | |
| IIEES | TABS | Z | Pn | E | 2016-06-26 05:40:17 | 2.58 | n | 4 | 573 | 0 |
| IIEES | NASN | Z | Pn | E | 2016-06-26 05:40:22 | 0.3 | y | 631 | 320 | |
| IIEES | SHRT | Z | Pn | E | 2016-06-26 05:40:24 | 0.54 | y | 649 | 27 | |
| IIEES | KHMZ | Z | Pn | E | 2016-06-26 05:40:54 | 0 | y | 896 | 312 | |
| IIEES | BJRD | Z | Pn | E | 2016-06-26 05:41:10 | -0.31 | y | 1023 | 2 | |
| IIEES | SNGE | Z | Pn | E | 2016-06-26 05:41:28 | -1.19 | n | 4 | 1178 | 311 |
