Magnitude |
2.6 |
| Date & Time (UTC) | 2016-07-11 21:33:24.2 |
| Date & Time (Local) | 1395/4/22 02:03:24.2 |

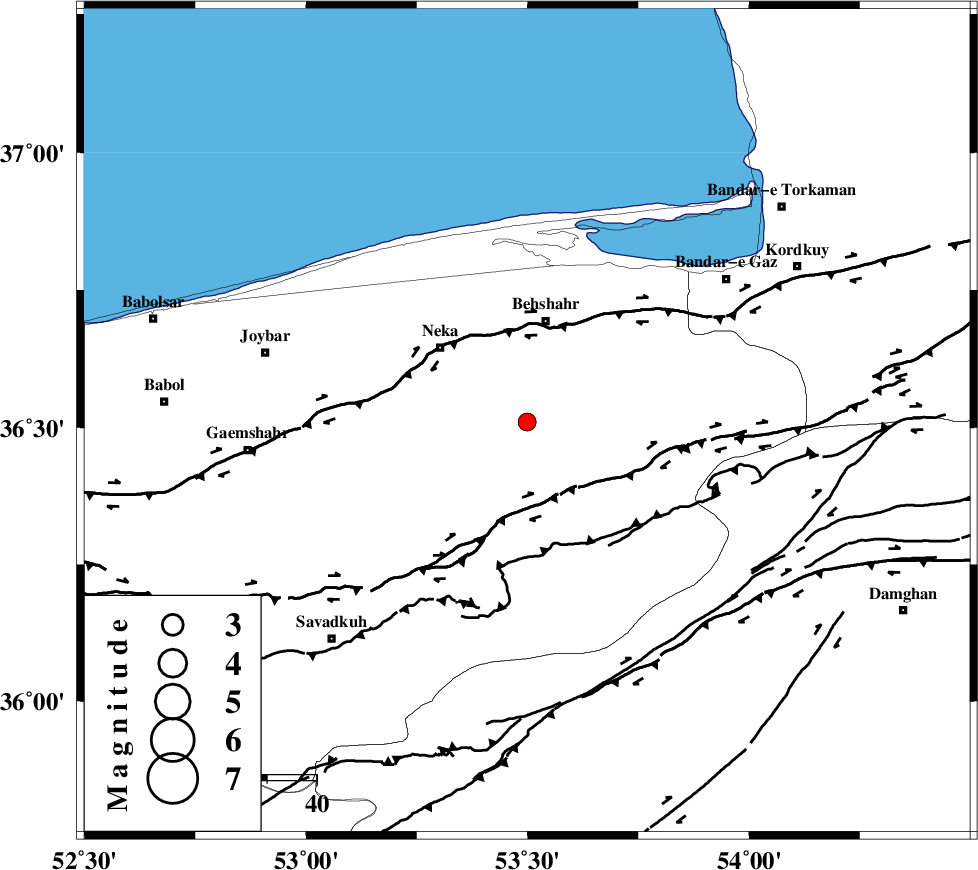

| Location | Lat:36.51 Lon: 53.499 |
| Region | Mazandaran Province, 21 km South of Behshahr |
Nearest Cities |
|
| 12 km East of Chelmardi, Mazandaran Province | |
| 19 km South of Kuhestan, Mazandaran Province | |
| 19 km South of Rostamkola, Mazandaran Province | |
| 20 km South East of Razandin sofla, Mazandaran Province | |
| 21 km South of Behshahr, Mazandaran Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 16 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 20 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 51 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107525 | IIEES | DAMV | E | 78.7 | 0.54 | 2016-07-11 21:34:15 | 2016-07-12 06:57:00 | n |
| 107526 | IIEES | DAMV | N | 60.9 | 0.48 | 2016-07-11 21:34:18 | 2016-07-12 06:57:00 | n |
| 107527 | IIEES | MRVT | E | 17.6 | 0.33 | 2016-07-11 21:34:44 | 2016-07-12 06:57:00 | n |
| 107528 | IIEES | MRVT | N | 15.8 | 0.19 | 2016-07-11 21:34:44 | 2016-07-12 06:57:00 | n |
| 107529 | IIEES | GHVR | E | 43.5 | 0.49 | 2016-07-11 21:34:58 | 2016-07-12 06:57:00 | n |
| 107530 | IIEES | GHVR | N | 15.3 | 0.53 | 2016-07-11 21:35:00 | 2016-07-12 06:57:00 | n |
| 107531 | IIEES | GIDE | E | 27.3 | 0.53 | 2016-07-11 21:35:09 | 2016-07-12 06:57:00 | n |
| 107532 | IIEES | GIDE | N | 26.4 | 0.72 | 2016-07-11 21:35:09 | 2016-07-12 06:57:00 | n |
| 107533 | IIEES | ASAO | E | 6 | 0.65 | 2016-07-11 21:35:17 | 2016-07-12 06:57:00 | n |
| 107534 | IIEES | NASN | E | 5.6 | 0.52 | 2016-07-11 21:35:34 | 2016-07-12 06:57:00 | n |
| 107535 | IIEES | ZNJK | E | 3.3 | 0.45 | 2016-07-11 21:35:33 | 2016-07-12 06:57:00 | n |
| 107536 | IIEES | ZNJK | N | 4.3 | 0.34 | 2016-07-11 21:35:36 | 2016-07-12 06:57:00 | n |
| 107537 | IIEES | YZKH | E | 4 | 0.52 | 2016-07-11 21:35:50 | 2016-07-12 06:57:00 | n |
| 107538 | IIEES | GRMI | E | 5.4 | 0.44 | 2016-07-11 21:35:39 | 2016-07-12 06:57:00 | n |
| 107539 | IIEES | GRMI | N | 3.3 | 0.28 | 2016-07-11 21:35:42 | 2016-07-12 06:57:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | DAMV | Z | Pg | E | 2016-07-11 21:33:52 | -0.2 | y | 169 | 235 | |
| IIEES | DAMV | E | Sg | E | 2016-07-11 21:34:13 | 0.26 | y | 169 | 235 | |
| IIEES | CHTH | Z | Pn | E | 2016-07-11 21:34:00 | 0.55 | y | 224 | 253 | |
| IIEES | CHTH | N | Sg | E | 2016-07-11 21:34:27 | -0.06 | y | 224 | 253 | |
| IIEES | SHRO | Z | Pn | E | 2016-07-11 21:34:01 | 0.36 | y | 233 | 103 | |
| IIEES | MRVT | Z | Pn | E | 2016-07-11 21:34:04 | -0.33 | y | 263 | 60 | |
| IIEES | GHVR | Z | Pn | E | 2016-07-11 21:34:09 | -0.29 | y | 304 | 223 | |
| IIEES | GIDE | Z | Pn | E | 2016-07-11 21:34:11 | -0.24 | y | 324 | 279 | |
| IIEES | BJRD | Z | Pn | E | 2016-07-11 21:34:18 | 0.35 | y | 372 | 68 | |
| IIEES | ASAO | Z | Pn | E | 2016-07-11 21:34:19 | 0.44 | y | 383 | 236 | |
| IIEES | NASN | Z | Pn | E | 2016-07-11 21:34:24 | 0.43 | y | 416 | 189 | |
| IIEES | ZNJK | Z | Pn | E | 2016-07-11 21:34:25 | 0.22 | y | 431 | 274 | |
| IIEES | KHMZ | Z | Pn | E | 2016-07-11 21:34:26 | -0.83 | y | 445 | 227 | |
| IIEES | TABS | Z | Pn | E | 2016-07-11 21:34:28 | 0.26 | y | 458 | 133 | |
| IIEES | YZKH | Z | Pn | E | 2016-07-11 21:34:29 | -0.55 | y | 468 | 167 | |
| IIEES | GRMI | Z | Pn | E | 2016-07-11 21:34:40 | -0.26 | y | 557 | 299 | |
| IIEES | BSRN | Z | Pn | E | 2016-07-11 21:35:00 | -0.68 | y | 723 | 133 |
