Magnitude |
2.6 |
| Date & Time (UTC) | 2016-07-16 01:22:01.5 |
| Date & Time (Local) | 1395/4/26 05:52:01.5 |

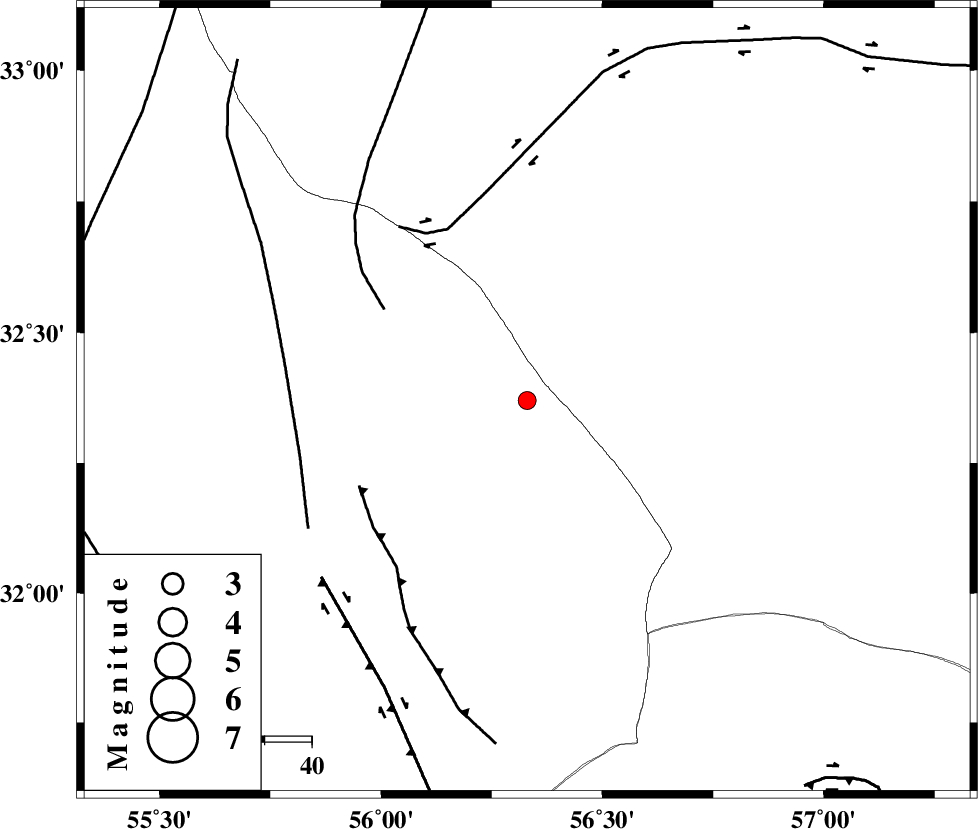

| Location | Lat:32.369 Lon: 56.33 |
| Region | Yazd Province, 131 km North-West of Ravar |
Nearest Cities |
|
| 62 km North East of Behabad, Yazd Province | |
| 74 km North East of Benestan, Yazd Province | |
| 78 km North East of Asfih, Yazd Province | |
| 87 km North East of Kushk, Yazd Province | |
| 102 km South East of Robat-e posht-e badam, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 36 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 40 km | |
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 40 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 3.3 km |
| Error in Longitude | 5 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107599 | IIEES | YZKH | E | 51.9 | 0.35 | 2016-07-16 01:22:48 | 2016-07-16 06:34:00 | n |
| 107600 | IIEES | YZKH | N | 65.8 | 0.27 | 2016-07-16 01:22:49 | 2016-07-16 06:34:00 | n |
| 107601 | IIEES | KRBR | E | 27.4 | 0.29 | 2016-07-16 01:23:22 | 2016-07-16 06:34:00 | n |
| 107602 | IIEES | KRBR | N | 35.2 | 0.54 | 2016-07-16 01:23:24 | 2016-07-16 06:34:00 | n |
| 107603 | IIEES | SHRO | N | 8.4 | 0.49 | 2016-07-16 01:23:57 | 2016-07-16 06:34:00 | n |
| 107604 | IIEES | SHRO | E | 8.6 | 0.49 | 2016-07-16 01:24:06 | 2016-07-16 06:34:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2016-07-16 01:22:28 | 0.03 | y | 160 | 27 | |
| IIEES | YZKH | Z | Pg | E | 2016-07-16 01:22:28 | -0.25 | y | 164 | 271 | |
| IIEES | BSRN | Z | Pn | E | 2016-07-16 01:22:42 | -0.44 | y | 267 | 99 | |
| IIEES | KRBR | Z | Pn | E | 2016-07-16 01:22:43 | 0.35 | y | 268 | 171 | |
| IIEES | SHRO | Z | Pn | E | 2016-07-16 01:22:59 | 0.37 | y | 405 | 356 | |
| IIEES | SHRO | N | Sg | E | 2016-07-16 01:23:54 | 0.03 | y | 405 | 356 |
