Magnitude |
2.7 |
| Date & Time (UTC) | 2016-07-24 12:05:11.1 |
| Date & Time (Local) | 1395/5/3 16:35:11.1 |

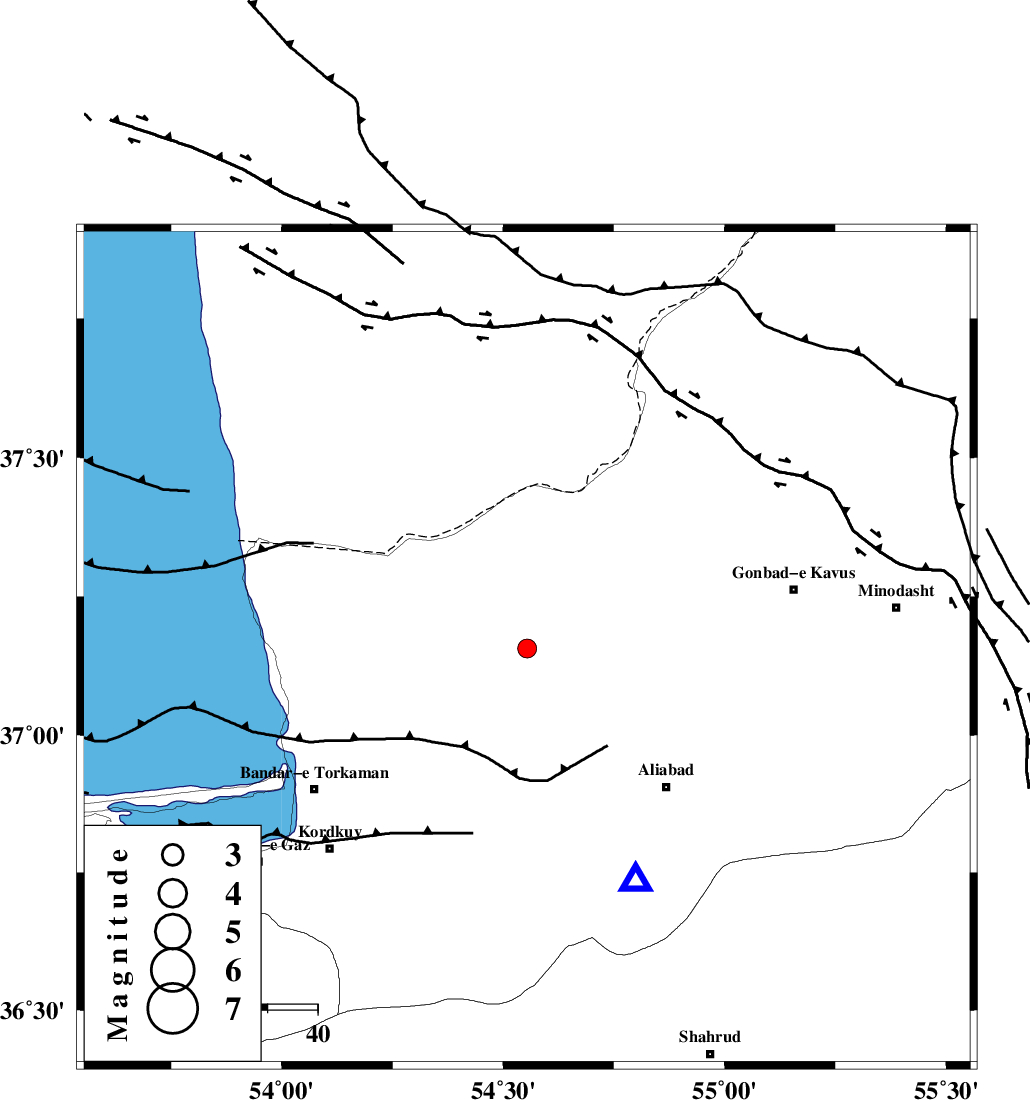

| Location | Lat:37.156 Lon: 54.554 |
| Region | Golestan Province, 18 km North-East of Aq Qaleh |
Nearest Cities |
|
| 16 km North of Qanqarmeh, Golestan Province | |
| 18 km North West of Gariduji, Golestan Province | |
| 18 km North East of Aq Qaleh, Golestan Province | |
| 20 km North of Nodeh malek, Golestan Province | |
| 33 km North East of Banavar, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 34 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 62 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 67 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 107962 | IIEES | MRVT | E | 139.8 | 0.15 | 2016-07-24 12:05:56 | 2016-07-25 05:18:00 | n |
| 107963 | IIEES | SHRO | N | 58.2 | 0.18 | 2016-07-24 12:06:04 | 2016-07-25 05:18:00 | n |
| 107964 | IIEES | DAMV | E | 40.9 | 0.54 | 2016-07-24 12:06:38 | 2016-07-25 05:18:00 | n |
| 107965 | IIEES | DAMV | N | 33.3 | 0.44 | 2016-07-24 12:06:42 | 2016-07-25 05:18:00 | n |
| 107966 | IIEES | GHVR | E | 10.7 | 0.55 | 2016-07-24 12:07:20 | 2016-07-25 05:18:00 | n |
| 107967 | IIEES | GHVR | N | 11 | 0.55 | 2016-07-24 12:07:23 | 2016-07-25 05:18:00 | n |
| 107968 | IIEES | NASN | N | 3.6 | 0.48 | 2016-07-24 12:07:37 | 2016-07-25 05:18:00 | n |
| 107969 | IIEES | YZKH | N | 3.8 | 0.44 | 2016-07-24 12:07:21 | 2016-07-25 05:18:00 | n |
| 107970 | IIEES | YZKH | E | 4.5 | 0.4 | 2016-07-24 12:07:22 | 2016-07-25 05:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pg | E | 2016-07-24 12:05:35 | -0.14 | y | 147 | 67 | |
| IIEES | MRVT | N | Sg | E | 2016-07-24 12:05:53 | 0.01 | y | 147 | 67 | |
| IIEES | SHRO | Z | Pg | E | 2016-07-24 12:05:40 | -0.25 | y | 182 | 134 | |
| IIEES | SHRO | N | Sg | E | 2016-07-24 12:06:03 | 0.32 | y | 182 | 134 | |
| IIEES | BJRD | Z | Pn | E | 2016-07-24 12:05:51 | 0.2 | y | 260 | 76 | |
| IIEES | DAMV | Z | Pn | E | 2016-07-24 12:05:54 | 0.39 | y | 287 | 235 | |
| IIEES | CHTH | Z | Pn | E | 2016-07-24 12:06:00 | -0.03 | y | 337 | 247 | |
| IIEES | GHVR | Z | Pn | E | 2016-07-24 12:06:11 | 0.1 | y | 421 | 226 | |
| IIEES | NASN | Z | Pn | E | 2016-07-24 12:06:21 | -0.29 | y | 509 | 199 | |
| IIEES | YZKH | Z | Pn | E | 2016-07-24 12:06:24 | -0.47 | y | 529 | 180 | |
| IIEES | BSRN | Z | Pn | E | 2016-07-24 12:06:47 | -0.16 | y | 712 | 143 |
