Magnitude |
2.8 |
| Date & Time (UTC) | 2016-08-09 06:24:24.0 |
| Date & Time (Local) | 1395/5/19 10:54:24.0 |

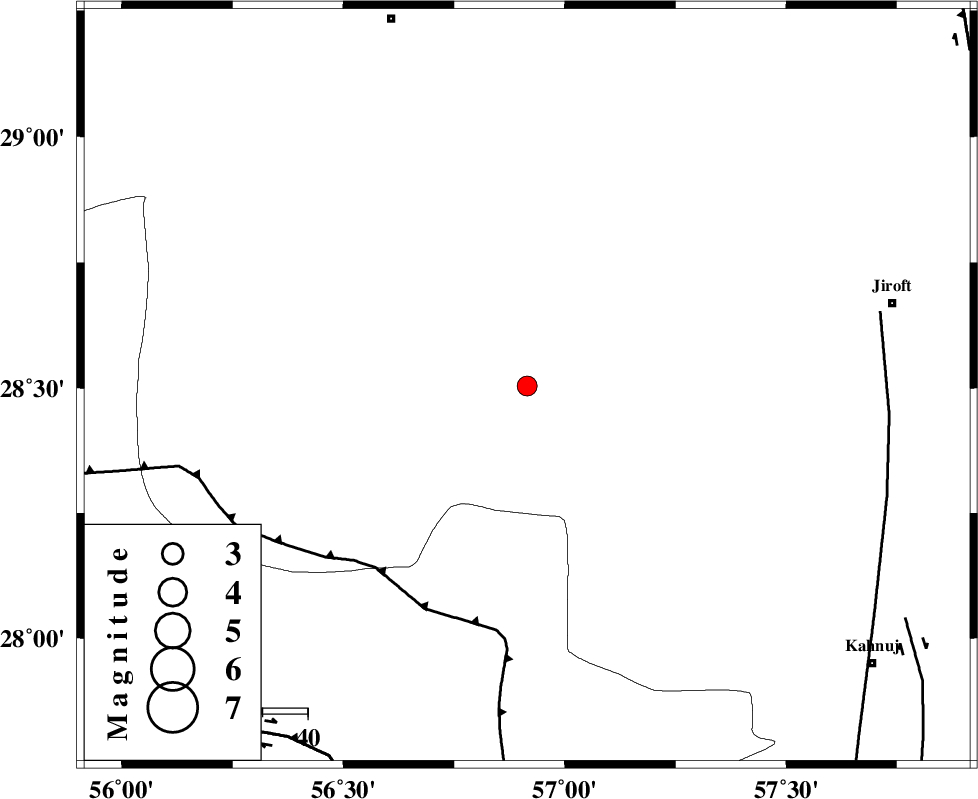

| Location | Lat:28.504 Lon: 56.915 |
| Region | Kerman Province, 83 km South-West of Jiroft |
Nearest Cities |
|
| 18 km North of Sarkhan, Kerman Province | |
| 29 km South West of Dolatabad, Kerman Province | |
| 52 km North West of Hurpasefid, Kerman Province | |
| 52 km North East of Shahmaran, Kerman Province | |
| 55 km North East of Arzuieeh, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 52 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 80 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 93 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | 7.8 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 108414 | IIEES | KRBR | N | 176.9 | 0.3 | 2016-08-09 06:25:18 | 2016-08-10 04:49:00 | n |
| 108415 | IIEES | KRBR | E | 127.3 | 0.3 | 2016-08-09 06:25:19 | 2016-08-10 04:49:00 | n |
| 108416 | IIEES | BSRN | N | 7.2 | 0.5 | 2016-08-09 06:26:38 | 2016-08-10 04:49:00 | n |
| 108417 | IIEES | BSRN | E | 10.4 | 0.47 | 2016-08-09 06:26:38 | 2016-08-10 04:49:00 | n |
| 108418 | IIEES | YZKH | N | 4.6 | 0.67 | 2016-08-09 06:26:57 | 2016-08-10 04:49:00 | n |
| 108419 | IIEES | TABS | N | 4.1 | 0.8 | 2016-08-09 06:27:28 | 2016-08-10 04:49:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2016-08-09 06:24:50 | -1.19 | n | 4 | 165 | 355 |
| IIEES | ZHSF | Z | Pn | E | 2016-08-09 06:25:20 | 0.03 | y | 395 | 71 | |
| IIEES | BSRN | Z | Pn | E | 2016-08-09 06:25:26 | -0.1 | y | 439 | 28 | |
| IIEES | YZKH | Z | Pn | E | 2016-08-09 06:25:32 | -0.06 | y | 485 | 333 | |
| IIEES | TABS | Z | Pn | E | 2016-08-09 06:25:42 | 0.19 | y | 571 | 2 | |
| IIEES | SHRT | Z | Pn | E | 2016-08-09 06:25:52 | -0.05 | y | 655 | 29 |
