Magnitude |
3.2 |
| Date & Time (UTC) | 2016-10-10 14:11:02.0 |
| Date & Time (Local) | 1395/7/19 17:41:02.0 |
| Location | Lat:28.371 Lon: 55.302 |
| Region | Fars Province, 59 km -West of Hajiabad |
Nearest Cities |
|
| 12 km North of Doborji, Fars Province | |
| 22 km North East of Fadami, Fars Province | |
| 22 km South of Tal bargah, Fars Province | |
| 24 km East of Rostaq, Fars Province | |
| 58 km North West of Darz, Fars Province | |
| Depth | 15 km |
| Agency | |

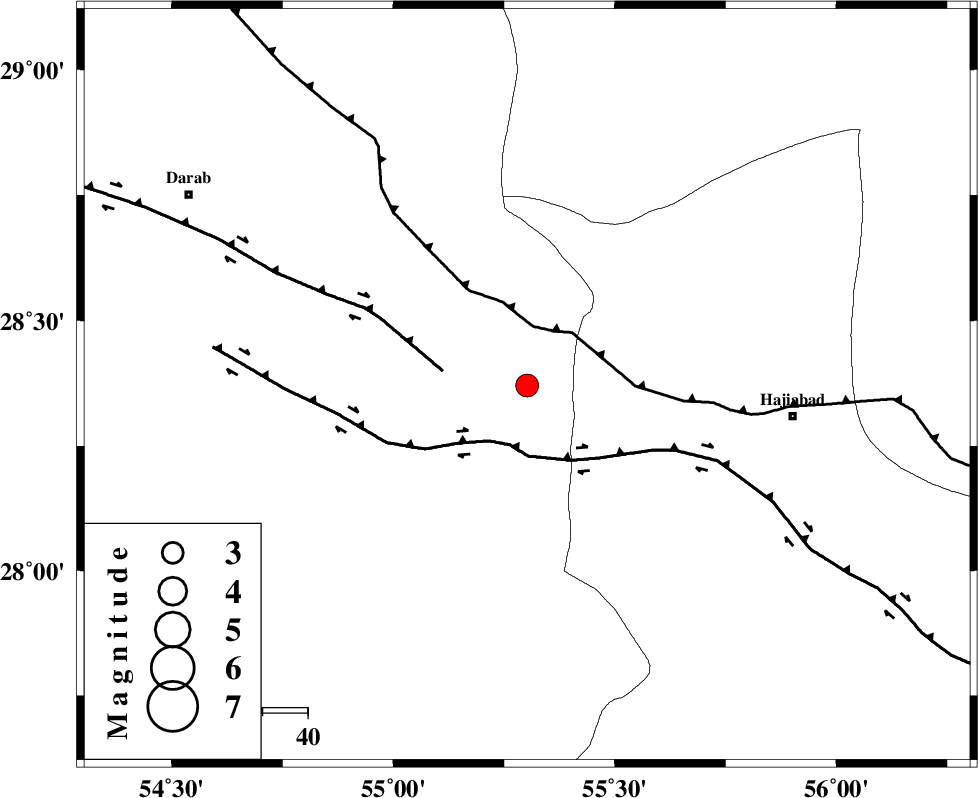

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 13 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 14 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 19 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | 5.8 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 109983 | IIEES | KRBR | N | 184.1 | 0.48 | 2016-10-10 14:12:14 | 2016-10-16 06:03:00 | n |
| 109984 | IIEES | KRBR | E | 142.3 | 0.59 | 2016-10-10 14:12:14 | 2016-10-16 06:03:00 | n |
| 109985 | IIEES | AHRM | N | 24.3 | 0.44 | 2016-10-10 14:13:10 | 2016-10-16 06:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pn | E | 2016-10-10 14:11:37 | -0.3 | y | 228 | 38 | |
| IIEES | AHRM | Z | Pn | E | 2016-10-10 14:11:58 | -0.08 | y | 395 | 279 | |
| IIEES | YZKH | Z | Pn | E | 2016-10-10 14:12:05 | -0.16 | y | 451 | 351 | |
| IIEES | BSRN | Z | Pn | E | 2016-10-10 14:12:17 | 0.3 | y | 542 | 42 | |
| IIEES | NASN | Z | Pn | E | 2016-10-10 14:12:18 | 0.48 | y | 546 | 335 | |
| IIEES | ZHSF | Z | Pn | E | 2016-10-10 14:12:18 | 0.13 | y | 551 | 74 | |
| IIEES | TABS | Z | Pn | E | 2016-10-10 14:12:25 | -0.02 | y | 610 | 16 | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-10 14:12:46 | -0.17 | y | 783 | 321 |
