Magnitude |
2.8 |
| Date & Time (UTC) | 2016-10-17 01:19:02.7 |
| Date & Time (Local) | 1395/7/26 04:49:02.7 |
| Location | Lat:29.026 Lon: 60.114 |
| Region | Sistan va Baloochestan Province, 90 km South-West of Zahedan |
Nearest Cities |
|
| 43 km South of Hesaruyeh, Sistan va Baloochestan Province | |
| 46 km North West of Mohamadabad, Sistan va Baloochestan Province | |
| 59 km South West of Mohamadabad, Sistan va Baloochestan Province | |
| 59 km North West of Nazil, Sistan va Baloochestan Province | |
| 79 km North West of Dehpayd, Sistan va Baloochestan Province | |
| Depth | 14 km |
| Agency | |

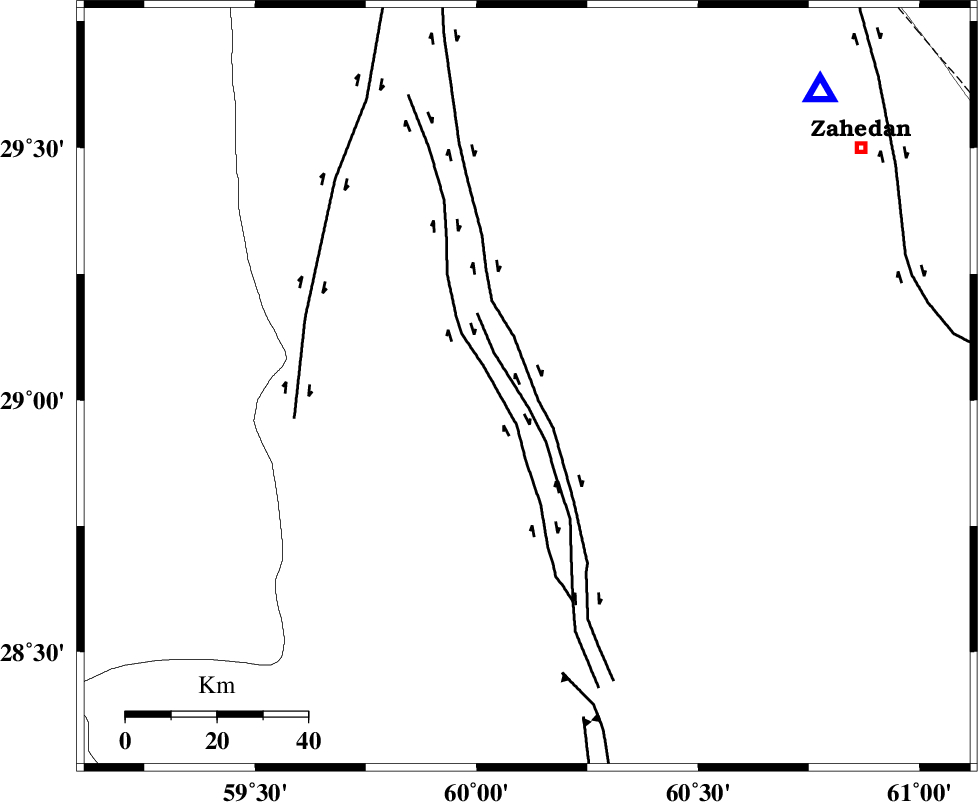

Faults within 150 km: |
|
| NOSRATABAD_F_Z3 (Length: 150 km) , Distance to epicenter: 4 km | |
| NOSRATABAD_F_Z2 (Length: 81 km) , Distance to epicenter: 4 km | |
| NOSRATABAD_F_Z1 (Length: 109 km) , Distance to epicenter: 9 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 3.3 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110006 | IIEES | KRBR | E | 23.5 | 0.59 | 2016-10-17 01:20:43 | 2016-10-17 07:22:00 | n |
| 110007 | IIEES | KRBR | N | 22.3 | 0.49 | 2016-10-17 01:20:44 | 2016-10-17 07:22:00 | n |
| 110008 | IIEES | CHBR | N | 11.8 | 0.17 | 2016-10-17 01:20:39 | 2016-10-17 07:22:00 | n |
| 110009 | IIEES | TABS | N | 4.8 | 0.66 | 2016-10-17 01:21:57 | 2016-10-17 07:22:00 | n |
| 110010 | IIEES | TABS | E | 2.4 | 0.75 | 2016-10-17 01:22:07 | 2016-10-17 07:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ZHSF | Z | Pg | E | 2016-10-17 01:19:18 | 0.17 | y | 91.2 | 45 | |
| IIEES | ZHSF | E | Sg | E | 2016-10-17 01:19:29 | -0.11 | y | 91.2 | 45 | |
| IIEES | BSRN | Z | Pn | E | 2016-10-17 01:19:53 | 0.59 | y | 339 | 344 | |
| IIEES | BSRN | E | Sg | E | 2016-10-17 01:20:37 | -0.19 | y | 339 | 344 | |
| IIEES | KRBR | Z | Pn | E | 2016-10-17 01:19:53 | -0.1 | y | 342 | 289 | |
| IIEES | CHBR | Z | Pn | E | 2016-10-17 01:19:57 | -0.18 | y | 382 | 174 | |
| IIEES | SHRT | Z | Pn | E | 2016-10-17 01:20:14 | -0.08 | y | 513 | 2 | |
| IIEES | TABS | Z | Pn | E | 2016-10-17 01:20:23 | -0.22 | y | 586 | 332 |
