Magnitude |
3.4 |
| Date & Time (UTC) | 2016-10-20 16:40:48.4 |
| Date & Time (Local) | 1395/7/29 20:10:48.4 |

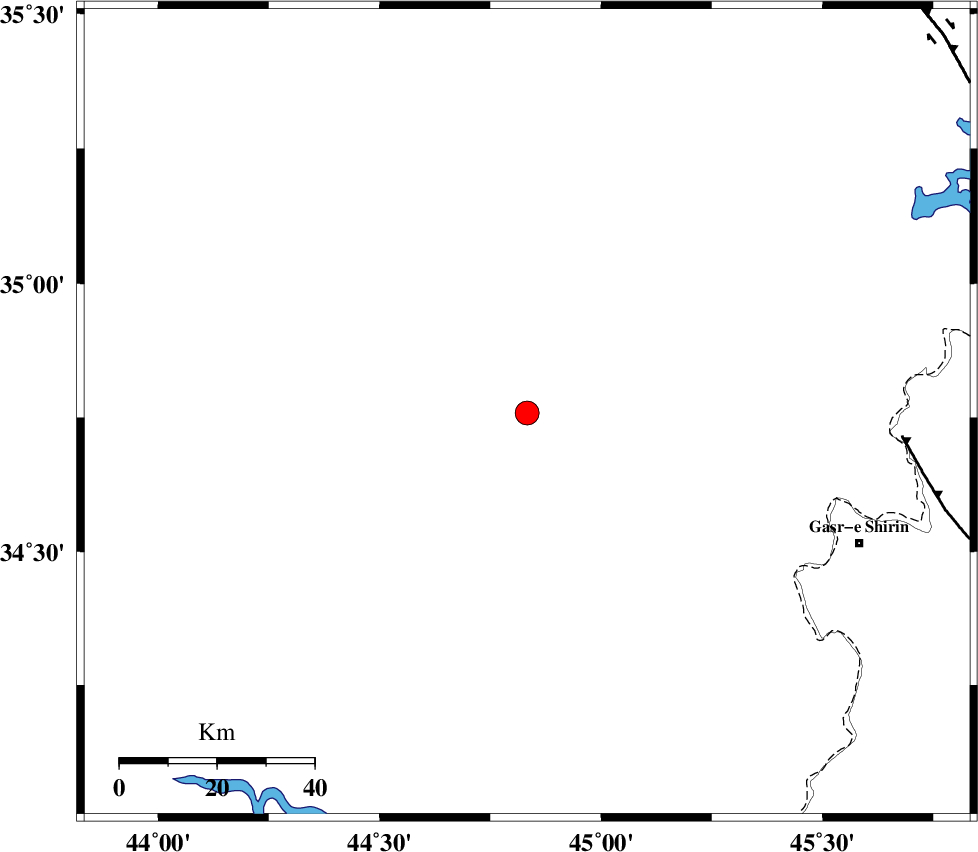

| Location | Lat:34.759 Lon: 44.833 |
| Region | Iraq, 74 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 71 km North West of Khosravi, Kermanshah Province | |
| 74 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 78 km North West of Seyyed sohrab, Kermanshah Province | |
| 80 km North West of Aqabarar, Kermanshah Province | |
| 81 km North West of Tappeh rash, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 77 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 108 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 109 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 9.5 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110085 | IIEES | SNGE | N | 223.3 | 0.51 | 2016-10-20 16:42:10 | 2016-10-22 08:28:00 | n |
| 110086 | IIEES | SNGE | E | 216.9 | 0.45 | 2016-10-20 16:42:11 | 2016-10-22 08:28:00 | n |
| 110087 | IIEES | ASAO | N | 23.5 | 0.77 | 2016-10-20 16:43:35 | 2016-10-22 08:28:00 | n |
| 110088 | IIEES | KHMZ | N | 29.2 | 0.34 | 2016-10-20 16:42:58 | 2016-10-22 08:28:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2016-10-20 16:41:26 | -0.05 | y | 233 | 80 | |
| IIEES | SNGE | E | Sg | E | 2016-10-20 16:41:54 | -0.08 | y | 233 | 80 | |
| IIEES | ZNJK | Z | Pn | E | 2016-10-20 16:41:47 | 0.29 | y | 408 | 58 | |
| IIEES | ASAO | Z | Pn | E | 2016-10-20 16:41:54 | -0.55 | y | 477 | 91 | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-20 16:41:56 | 0.03 | y | 486 | 102 | |
| IIEES | KHMZ | N | S | E | 2016-10-20 16:42:46 | 0.3 | y | 486 | 102 | |
| IIEES | NASN | Z | Pn | E | 2016-10-20 16:42:32 | 0.16 | y | 770 | 104 |
