Magnitude |
2.7 |
| Date & Time (UTC) | 2016-11-11 07:08:51.9 |
| Date & Time (Local) | 1395/8/21 10:38:51.9 |

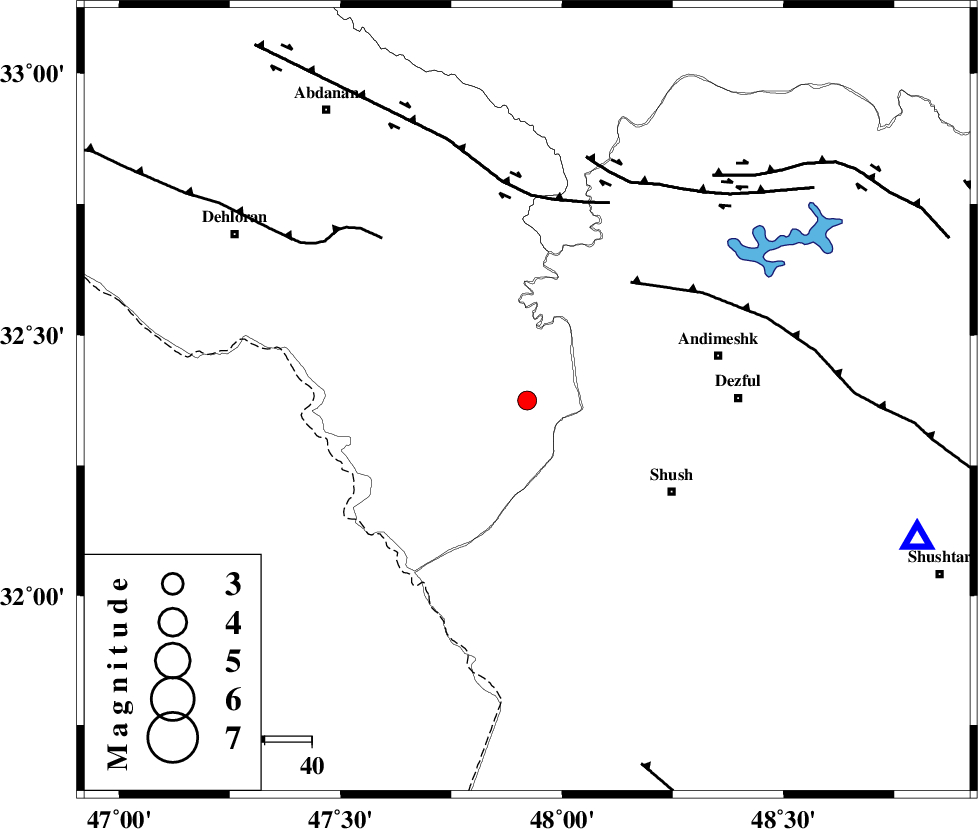

| Location | Lat:32.374 Lon: 47.921 |
| Region | Ilam Province, 45 km -West of Dezful |
Nearest Cities |
|
| 36 km North West of Shush, Khoozestan Province | |
| 40 km North West of Amaleh teimur, Khoozestan Province | |
| 42 km West of Andimeshk, Khoozestan Province | |
| 45 km West of Dezful, Khoozestan Province | |
| 46 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 43 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 46 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 8.3 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110630 | IIEES | KHMZ | N | 48.7 | 0.43 | 2016-11-11 07:10:06 | 2016-11-12 10:01:00 | n |
| 110631 | IIEES | KHMZ | E | 29.8 | 0.38 | 2016-11-11 07:10:07 | 2016-11-12 10:01:00 | n |
| 110632 | IIEES | SNGE | N | 16.5 | 0.61 | 2016-11-11 07:10:30 | 2016-11-12 10:01:00 | n |
| 110633 | IIEES | GHVR | E | 17.5 | 0.62 | 2016-11-11 07:10:47 | 2016-11-12 10:01:00 | n |
| 110634 | IIEES | GHVR | N | 13.6 | 0.43 | 2016-11-11 07:10:58 | 2016-11-12 10:01:00 | n |
| 110635 | IIEES | NASN | N | 4.7 | 0.49 | 2016-11-11 07:11:07 | 2016-11-12 10:01:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pn | E | 2016-11-11 07:09:25 | -0.06 | y | 212 | 311 | |
| IIEES | ILBA | N | Sg | E | 2016-11-11 07:09:52 | -0.03 | y | 212 | 311 | |
| IIEES | KHMZ | Z | Pn | E | 2016-11-11 07:09:30 | 0.07 | y | 244 | 51 | |
| IIEES | KHMZ | N | Sg | E | 2016-11-11 07:10:00 | -0.08 | y | 244 | 51 | |
| IIEES | SNGE | Z | Pn | E | 2016-11-11 07:09:37 | 0.05 | y | 306 | 350 | |
| IIEES | GHVR | Z | Pn | E | 2016-11-11 07:09:48 | 0.38 | y | 387 | 52 | |
| IIEES | NASN | Z | Pn | E | 2016-11-11 07:09:56 | -0.35 | y | 461 | 83 |
