Magnitude |
3.4 |
| Date & Time (UTC) | 2016-11-10 18:09:38.3 |
| Date & Time (Local) | 1395/8/20 21:39:38.3 |

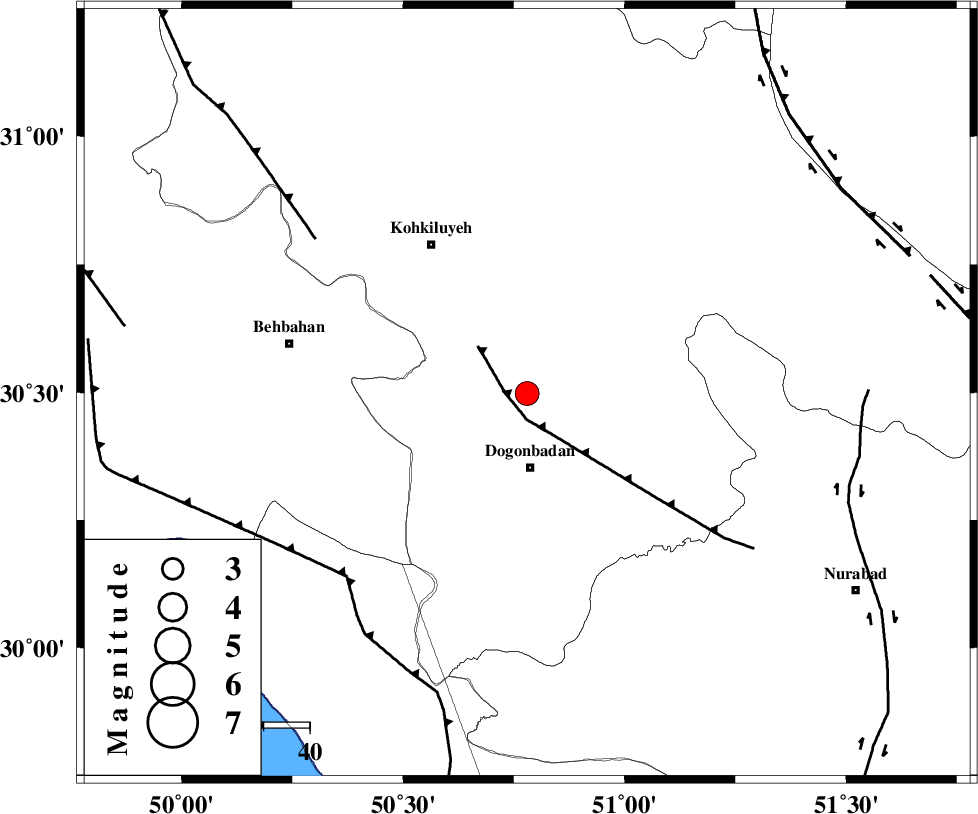

| Location | Lat:30.498 Lon: 50.78 |
| Region | Kohkiluieh va boyerahmad Province, 16 km North of Dogonbadan |
Nearest Cities |
|
| 16 km North of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 26 km North West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 38 km South East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 40 km North West of Basht, Kohkiluieh va boyerahmad Province | |
| 45 km South of Savari, Kohkiluieh va boyerahmad Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 5 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 56 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 56 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 6 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110636 | IIEES | AHRM | N | 319.2 | 0.6 | 2016-11-10 18:10:36 | 2016-11-12 11:15:00 | n |
| 110637 | IIEES | YZKH | N | 34.4 | 0.27 | 2016-11-10 18:11:25 | 2016-11-12 11:15:00 | n |
| 110638 | IIEES | YZKH | E | 38.4 | 0.27 | 2016-11-10 18:11:25 | 2016-11-12 11:15:00 | n |
| 110639 | IIEES | GHVR | N | 29.2 | 0.39 | 2016-11-10 18:11:34 | 2016-11-12 11:15:00 | n |
| 110640 | IIEES | GHVR | E | 31.5 | 0.47 | 2016-11-10 18:11:59 | 2016-11-12 11:15:00 | n |
| 110641 | IIEES | DAMV | E | 21.5 | 0.29 | 2016-11-10 18:11:59 | 2016-11-12 11:15:00 | n |
| 110642 | IIEES | DAMV | N | 20 | 0.37 | 2016-11-10 18:12:00 | 2016-11-12 11:15:00 | n |
| 110643 | IIEES | SNGE | N | 12 | 0.43 | 2016-11-10 18:12:06 | 2016-11-12 11:15:00 | n |
| 110644 | IIEES | SNGE | E | 12.7 | 0.37 | 2016-11-10 18:12:08 | 2016-11-12 11:15:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2016-11-10 18:10:08 | -0.18 | y | 188 | 164 | |
| IIEES | AHRM | N | Sg | E | 2016-11-10 18:10:31 | 0.14 | y | 188 | 164 | |
| IIEES | NASN | Z | Pn | E | 2016-11-10 18:10:25 | 0.29 | y | 320 | 36 | |
| IIEES | KHMZ | Z | Pn | E | 2016-11-10 18:10:31 | 0.05 | y | 368 | 348 | |
| IIEES | KHMZ | N | Sg | E | 2016-11-10 18:11:21 | 0.04 | y | 368 | 348 | |
| IIEES | YZKH | Z | Pn | E | 2016-11-10 18:10:38 | 0.24 | y | 419 | 59 | |
| IIEES | GHVR | Z | Pn | E | 2016-11-10 18:10:41 | 0.42 | y | 444 | 6 | |
| IIEES | ILBA | Z | Pn | E | 2016-11-10 18:10:51 | -3.08 | n | 4 | 554 | 310 |
| IIEES | KRBR | Z | Pn | E | 2016-11-10 18:10:57 | -0.08 | y | 578 | 94 | |
| IIEES | DAMV | Z | Pn | E | 2016-11-10 18:10:57 | -0.59 | y | 580 | 11 | |
| IIEES | CHTH | Z | Pn | E | 2016-11-10 18:11:00 | -0.46 | y | 601 | 3 | |
| IIEES | SNGE | Z | Pn | E | 2016-11-10 18:10:58 | -2.33 | n | 4 | 602 | 329 |
| IIEES | TABS | Z | Pn | E | 2016-11-10 18:11:11 | -0.1 | y | 693 | 58 | |
| IIEES | ZNJK | Z | Pn | E | 2016-11-10 18:11:14 | 0.17 | y | 712 | 345 | |
| IIEES | SHRO | Z | Pn | E | 2016-11-10 18:11:22 | -0.09 | y | 782 | 37 | |
| IIEES | BSRN | Z | Pn | E | 2016-11-10 18:11:26 | -0.03 | y | 811 | 76 | |
| IIEES | SHRT | Z | Pn | E | 2016-11-10 18:11:44 | -0.63 | y | 963 | 66 |
