Magnitude |
2.8 |
| Date & Time (UTC) | 2016-11-14 17:16:16.0 |
| Date & Time (Local) | 1395/8/24 20:46:16.0 |

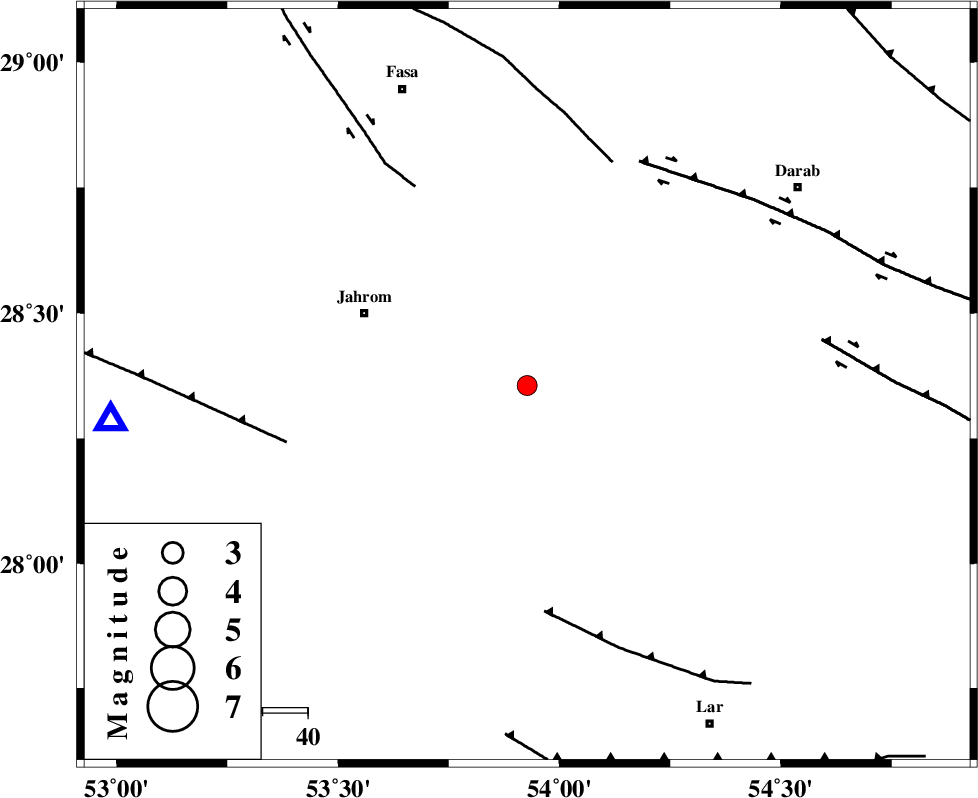

| Location | Lat:28.356 Lon: 53.927 |
| Region | Fars Province, 39 km South-East of Jahrom |
Nearest Cities |
|
| 20 km North of Juyam, Fars Province | |
| 23 km South East of Khorramabad, Fars Province | |
| 27 km West of Dabiran, Fars Province | |
| 33 km South East of Alaviyeh, Fars Province | |
| 39 km North East of Balafan, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 50 km | |
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 50 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 53 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | 4 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 110764 | IIEES | AHRM | N | 33.2 | 0.45 | 2016-11-14 17:17:47 | 2016-11-15 11:39:00 | n |
| 110765 | IIEES | KRBR | E | 21.5 | 0.33 | 2016-11-14 17:17:54 | 2016-11-15 11:39:00 | n |
| 110766 | IIEES | KRBR | N | 29.1 | 0.41 | 2016-11-14 17:17:56 | 2016-11-15 11:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2016-11-14 17:16:56 | 0 | y | 263 | 283 | |
| IIEES | KRBR | Z | Pn | E | 2016-11-14 17:17:04 | -0.02 | y | 329 | 56 | |
| IIEES | YZKH | Z | Pn | E | 2016-11-14 17:17:19 | -0.06 | y | 452 | 8 | |
| IIEES | NASN | Z | Pn | E | 2016-11-14 17:17:26 | 0.05 | y | 504 | 348 | |
| IIEES | BSRN | Z | Pn | E | 2016-11-14 17:17:43 | 0.05 | y | 641 | 50 |
