Magnitude |
3.7 |
| Date & Time (UTC) | 2016-12-15 22:01:30.6 |
| Date & Time (Local) | 1395/9/26 01:31:30.6 |

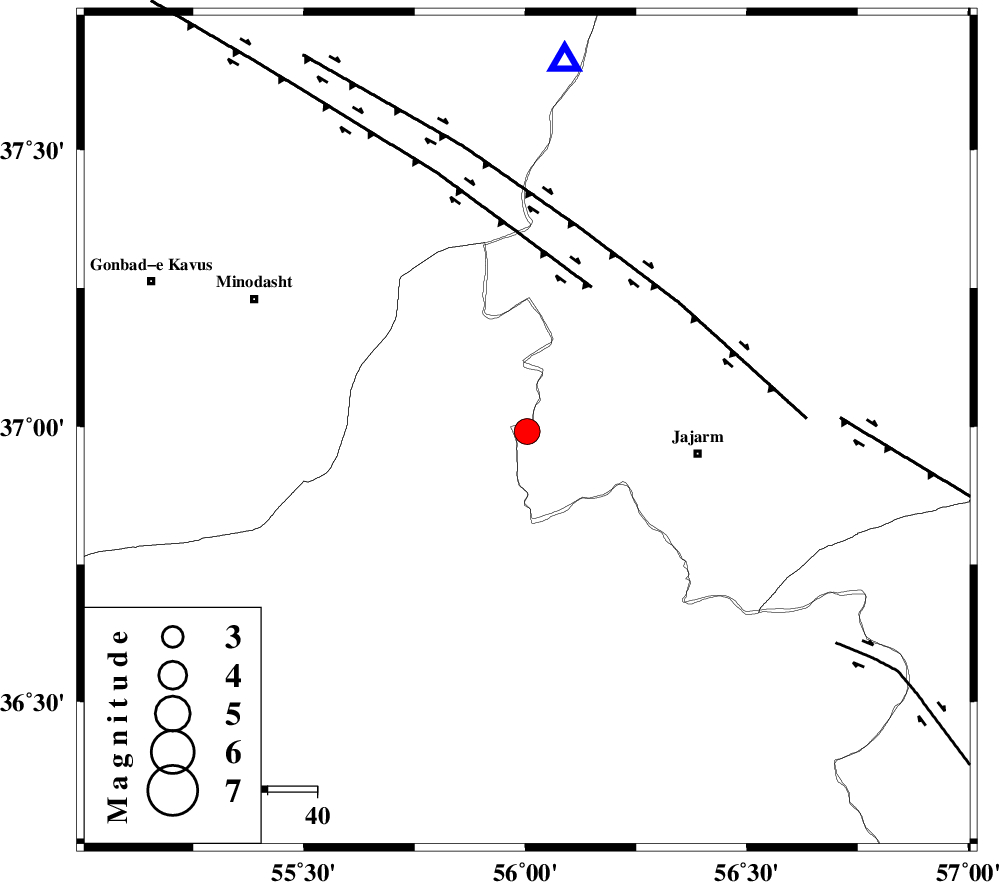

| Location | Lat:36.991 Lon: 56.004 |
| Region | Khorasan(north) Province, 34 km -West of Jajarm |
Nearest Cities |
|
| 20 km East of Nardin, Semnan Province | |
| 25 km North West of Garmeh, Khorasan(north) Province | |
| 30 km South East of Rezvan, Semnan Province | |
| 33 km East of Qaleh qafeh, Semnan Province | |
| 34 km North West of Jajarm, Khorasan(north) Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 18 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 25 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 53 km | |
| Number of Phases | 20 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111372 | IIEES | MRVT | E | 1718.8 | 0.37 | 2016-12-15 22:01:56 | 2016-12-18 06:10:00 | n |
| 111373 | IIEES | BJRD | E | 1781.3 | 0.69 | 2016-12-15 22:02:21 | 2016-12-18 06:10:00 | n |
| 111374 | IIEES | BJRD | N | 1120.2 | 0.4 | 2016-12-15 22:02:26 | 2016-12-18 06:10:00 | n |
| 111375 | IIEES | TABS | N | 85.7 | 0.56 | 2016-12-15 22:03:33 | 2016-12-18 06:10:00 | n |
| 111376 | IIEES | DAMV | N | 68.9 | 0.62 | 2016-12-15 22:03:31 | 2016-12-18 06:10:00 | n |
| 111377 | IIEES | DAMV | E | 105.2 | 0.44 | 2016-12-15 22:03:35 | 2016-12-18 06:10:00 | n |
| 111378 | IIEES | GHVR | N | 55.6 | 0.46 | 2016-12-15 22:04:06 | 2016-12-18 06:10:00 | n |
| 111379 | IIEES | GHVR | E | 69.9 | 0.54 | 2016-12-15 22:04:13 | 2016-12-18 06:10:00 | n |
| 111380 | IIEES | YZKH | E | 64.2 | 0.55 | 2016-12-15 22:03:41 | 2016-12-18 06:10:00 | n |
| 111381 | IIEES | YZKH | N | 52.8 | 0.32 | 2016-12-15 22:03:42 | 2016-12-18 06:10:00 | n |
| 111382 | IIEES | NASN | N | 18.9 | 0.41 | 2016-12-15 22:04:21 | 2016-12-18 06:10:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pg | E | 2016-12-15 22:01:43 | -0.25 | y | 74.6 | 6 | |
| IIEES | SHRO | Z | Pg | E | 2016-12-15 22:01:50 | 0.38 | y | 109 | 180 | |
| IIEES | SHRO | E | Sg | E | 2016-12-15 22:02:03 | -0.27 | y | 109 | 180 | |
| IIEES | BJRD | Z | Pg | E | 2016-12-15 22:01:55 | -0.22 | y | 147 | 57 | |
| IIEES | BJRD | N | Sg | E | 2016-12-15 22:02:15 | 0.32 | y | 147 | 57 | |
| IIEES | TABS | Z | Pn | E | 2016-12-15 22:02:26 | 0.23 | y | 384 | 164 | |
| IIEES | DAMV | Z | Pn | E | 2016-12-15 22:02:28 | 1.03 | y | 392 | 249 | |
| IIEES | CHTH | Z | Pn | E | 2016-12-15 22:02:36 | 0.66 | y | 453 | 256 | |
| IIEES | GHVR | Z | Pn | E | 2016-12-15 22:02:42 | 0.25 | y | 513 | 238 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-15 22:02:43 | -0.62 | y | 526 | 195 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-15 22:02:45 | -0.39 | y | 538 | 132 | |
| IIEES | GIDE | Z | Pn | E | 2016-12-15 22:02:43 | -2.62 | n | 4 | 543 | 271 |
| IIEES | NASN | Z | Pn | E | 2016-12-15 22:02:46 | -0.96 | y | 549 | 213 | |
| IIEES | ASAO | Z | Pn | E | 2016-12-15 22:02:54 | 0.43 | y | 605 | 245 | |
| IIEES | ZNJK | Z | Pn | E | 2016-12-15 22:02:59 | -1.01 | y | 654 | 269 | |
| IIEES | KHMZ | Z | Pn | E | 2016-12-15 22:03:00 | -0.41 | y | 657 | 238 | |
| IIEES | KRBR | Z | Pn | E | 2016-12-15 22:03:16 | 0.74 | y | 780 | 175 | |
| IIEES | SNGE | Z | Pn | E | 2016-12-15 22:03:19 | 0.2 | y | 808 | 257 | |
| IIEES | ILBA | Z | Pn | E | 2016-12-15 22:03:38 | 0.12 | y | 965 | 250 | |
| IIEES | MAKU | Z | Pn | E | 2016-12-15 22:03:44 | -1.73 | y | 1025 | 288 |
