Magnitude |
4 |
| Date & Time (UTC) | 2016-12-18 20:38:26.5 |
| Date & Time (Local) | 1395/9/29 00:08:26.5 |

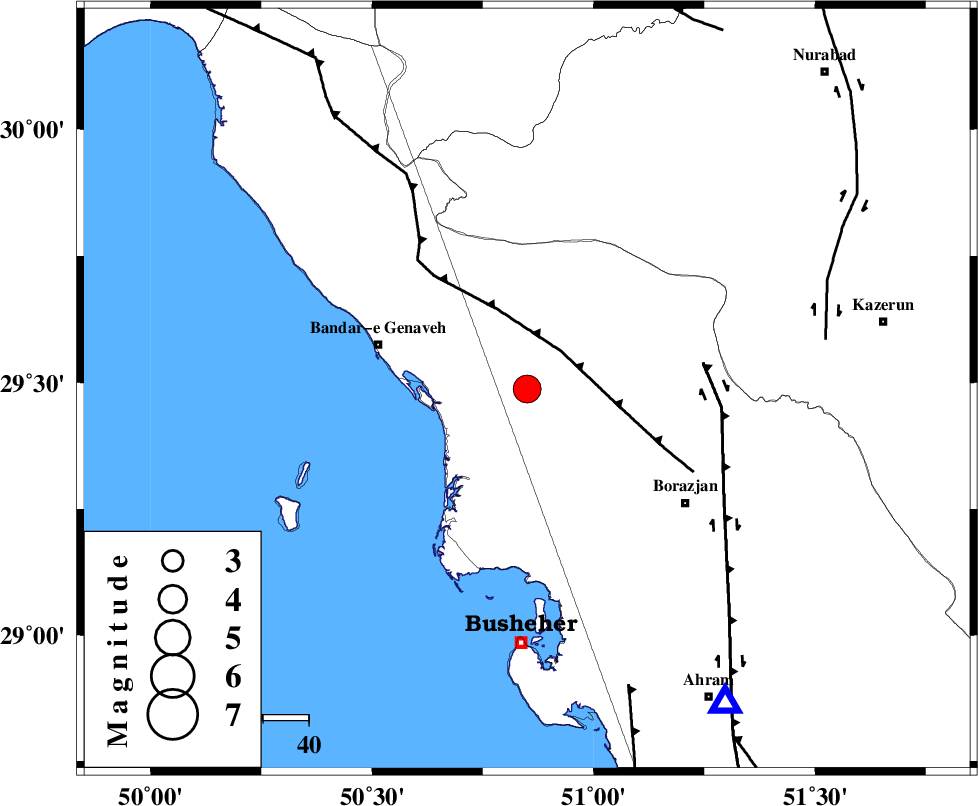

| Location | Lat:29.487 Lon: 50.85 |
| Region | Bushehr Province, 34 km -East of Bandar-e genaveh |
Nearest Cities |
|
| 10 km of Chehar rustaee, Bushehr Province | |
| 14 km North West of Dehkohneh, Bushehr Province | |
| 21 km North East of Bandarehrig, Bushehr Province | |
| 24 km North West of Shabankareh, Bushehr Province | |
| 25 km North of Kareband, Bushehr Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 11 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 39 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 66 km | |
| Number of Phases | 20 |
| RMS | 0.8 |
| Number of Stations | 20 |
| Error in Latitude | 11.1 km |
| Error in Longitude | 10.5 km |
| Error in Depth | 999.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 111438 | IIEES | KHMZ | N | 144.8 | 0.96 | 2016-12-18 20:40:51 | 2016-12-19 06:29:00 | n |
| 111439 | IIEES | ASAO | N | 55 | 0.77 | 2016-12-18 20:40:48 | 2016-12-19 06:29:00 | n |
| 111440 | IIEES | ASAO | E | 44.8 | 0.68 | 2016-12-18 20:41:08 | 2016-12-19 06:29:00 | n |
| 111441 | IIEES | BNDS | N | 44.6 | 0.47 | 2016-12-18 20:41:49 | 2016-12-19 06:29:00 | n |
| 111442 | IIEES | KRBR | N | 77.7 | 0.45 | 2016-12-18 20:40:52 | 2016-12-19 06:29:00 | n |
| 111443 | IIEES | KRBR | E | 60.9 | 0.74 | 2016-12-18 20:40:52 | 2016-12-19 06:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pn | E | 2016-12-18 20:39:25 | -0.27 | y | 412 | 26 | |
| IIEES | KHMZ | Z | Pn | E | 2016-12-18 20:39:34 | 0.33 | y | 479 | 350 | |
| IIEES | YZKH | Z | Pn | E | 2016-12-18 20:39:34 | 0.11 | y | 481 | 47 | |
| IIEES | GHVR | Z | Pn | E | 2016-12-18 20:39:44 | 1.02 | y | 555 | 4 | |
| IIEES | ASAO | Z | Pn | E | 2016-12-18 20:39:45 | 0.4 | y | 567 | 352 | |
| IIEES | BNDS | Z | Pn | E | 2016-12-18 20:39:45 | 0.18 | y | 570 | 113 | |
| IIEES | KRBR | Z | Pn | E | 2016-12-18 20:39:46 | 0.5 | y | 574 | 83 | |
| IIEES | ILBA | Z | Pn | E | 2016-12-18 20:39:53 | -0.03 | y | 636 | 317 | |
| IIEES | DAMV | Z | Pn | E | 2016-12-18 20:39:59 | -0.43 | y | 689 | 8 | |
| IIEES | SNGE | Z | Pn | E | 2016-12-18 20:40:00 | -0.93 | y | 704 | 333 | |
| IIEES | CHTH | Z | Pn | E | 2016-12-18 20:40:02 | -0.3 | y | 713 | 2 | |
| IIEES | TABS | Z | Pn | E | 2016-12-18 20:40:06 | -0.84 | y | 753 | 51 | |
| IIEES | ZNJK | Z | Pn | E | 2016-12-18 20:40:16 | -0.08 | y | 822 | 346 | |
| IIEES | GIDE | Z | Pn | E | 2016-12-18 20:40:17 | 0.07 | y | 829 | 354 | |
| IIEES | SHRO | Z | Pn | E | 2016-12-18 20:40:21 | -1.23 | y | 870 | 32 | |
| IIEES | ZHSF | Z | Pn | E | 2016-12-18 20:40:35 | 1.69 | y | 962 | 87 | |
| IIEES | SHRT | Z | Pn | E | 2016-12-18 20:40:39 | 0.08 | y | 1007 | 60 | |
| IIEES | MRVT | Z | Pn | E | 2016-12-18 20:40:41 | 0.02 | y | 1028 | 27 | |
| IIEES | CHBR | Z | Pn | E | 2016-12-18 20:40:41 | -2.37 | y | 1044 | 112 | |
| IIEES | MAKU | Z | Pn | E | 2016-12-18 20:41:08 | 1.63 | y | 1232 | 334 |
