Magnitude |
3.7 |
| Date & Time (UTC) | 2017-02-06 07:15:17.8 |
| Date & Time (Local) | 1395/11/18 10:45:17.8 |

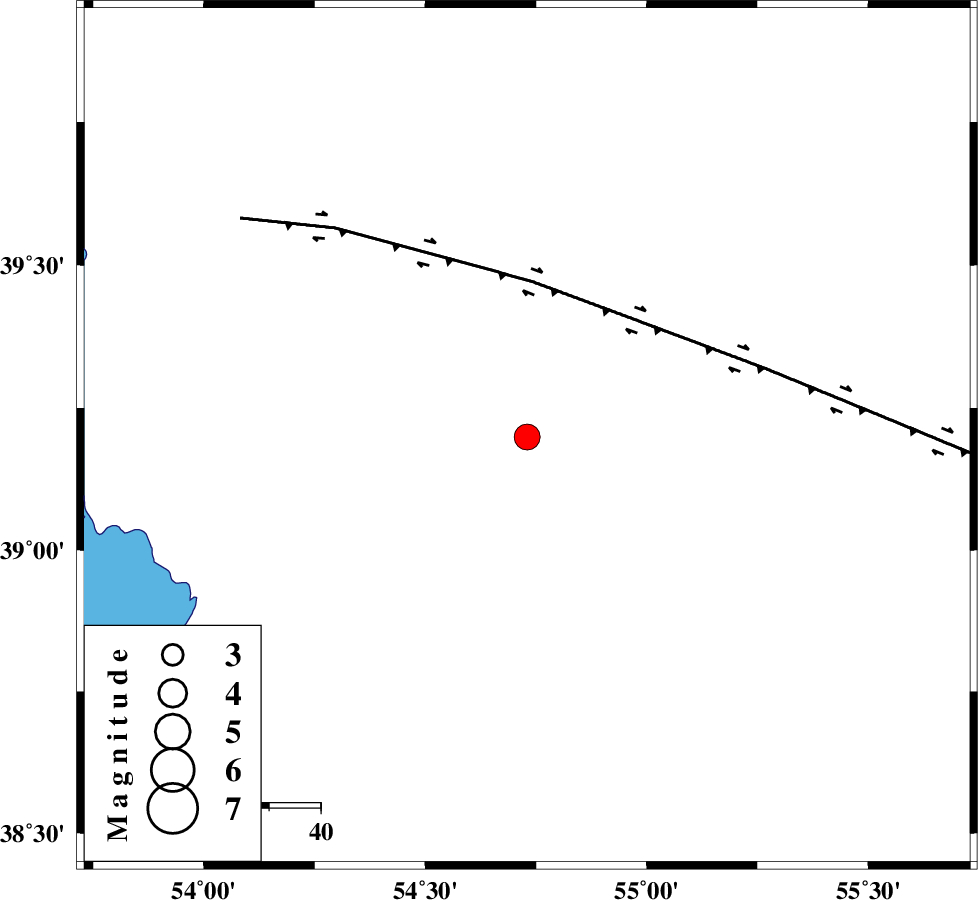

| Location | Lat:39.199 Lon: 54.73 |
| Region | Turkmenistan |
Nearest Cities |
|
| 154 km North West of Karand, Golestan Province | |
| 172 km North West of Qareh aghaj, Golestan Province | |
| 175 km North West of Dashliborun, Golestan Province | |
| 176 km South East of Turkmenbasi, Turkmenistan Province | |
| 179 km North West of Moravehtappeh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 30 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 148 km | |
| Number of Phases | 18 |
| RMS | 0.2 |
| Number of Stations | 17 |
| Error in Latitude | 5.7 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 113119 | IIEES | BJRD | N | 135.3 | 0.36 | 2017-02-06 07:16:53 | 2017-02-06 09:38:00 | n |
| 113120 | IIEES | BJRD | E | 115.4 | 0.45 | 2017-02-06 07:17:04 | 2017-02-06 09:38:00 | n |
| 113121 | IIEES | DAMV | N | 73.7 | 0.36 | 2017-02-06 07:17:16 | 2017-02-06 09:38:00 | n |
| 113122 | IIEES | GIDE | E | 43.3 | 0.38 | 2017-02-06 07:17:22 | 2017-02-06 09:38:00 | n |
| 113123 | IIEES | GIDE | N | 47.1 | 0.38 | 2017-02-06 07:17:27 | 2017-02-06 09:38:00 | n |
| 113124 | IIEES | THKV | N | 76.8 | 0.67 | 2017-02-06 07:17:23 | 2017-02-06 09:38:00 | n |
| 113125 | IIEES | THKV | E | 115.6 | 0.67 | 2017-02-06 07:17:24 | 2017-02-06 09:38:00 | n |
| 113126 | IIEES | GRMI | N | 31.9 | 0.05 | 2017-02-06 07:17:41 | 2017-02-06 09:38:00 | n |
| 113127 | IIEES | GRMI | E | 34 | 0.33 | 2017-02-06 07:17:44 | 2017-02-06 09:38:00 | n |
| 113128 | IIEES | ZNJK | E | 19.6 | 0.4 | 2017-02-06 07:17:43 | 2017-02-06 09:38:00 | n |
| 113129 | IIEES | ZNJK | N | 19.3 | 0.58 | 2017-02-06 07:17:43 | 2017-02-06 09:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pn | E | 2017-02-06 07:15:51 | 0.04 | y | 208 | 145 | |
| IIEES | MRVT | N | Sg | E | 2017-02-06 07:16:16 | -0.06 | y | 208 | 145 | |
| IIEES | BJRD | Z | Pn | E | 2017-02-06 07:15:56 | -4.7 | n | 4 | 287 | 125 |
| IIEES | SHRO | Z | Pn | E | 2017-02-06 07:16:11 | 0.15 | y | 372 | 162 | |
| IIEES | DAMV | Z | Pn | E | 2017-02-06 07:16:23 | 0.21 | y | 465 | 213 | |
| IIEES | CHTH | Z | Pn | E | 2017-02-06 07:16:25 | -0.23 | y | 485 | 222 | |
| IIEES | GIDE | Z | Pn | E | 2017-02-06 07:16:26 | -0.13 | y | 493 | 241 | |
| IIEES | THKV | Z | Pn | E | 2017-02-06 07:16:27 | -0.08 | y | 498 | 224 | |
| IIEES | GRMI | Z | Pn | E | 2017-02-06 07:16:39 | 0.1 | y | 594 | 268 | |
| IIEES | ZNJK | Z | Pn | E | 2017-02-06 07:16:40 | -0.07 | y | 601 | 244 | |
| IIEES | GHVR | Z | Pn | E | 2017-02-06 07:16:41 | 0.19 | y | 609 | 212 | |
| IIEES | TABS | Z | Pn | E | 2017-02-06 07:16:47 | 0.51 | y | 652 | 160 | |
| IIEES | ASAO | Z | Pn | E | 2017-02-06 07:16:48 | -0.01 | y | 665 | 221 | |
| IIEES | NASN | Z | Pn | E | 2017-02-06 07:16:56 | -0.04 | y | 731 | 194 | |
| IIEES | SHRT | Z | Pn | E | 2017-02-06 07:17:03 | -0.46 | y | 792 | 139 | |
| IIEES | SNGE | Z | Pn | E | 2017-02-06 07:17:04 | -0.11 | y | 798 | 237 | |
| IIEES | MAKU | Z | Pn | E | 2017-02-06 07:17:13 | -0.03 | y | 867 | 274 | |
| IIEES | BSRN | Z | Pn | E | 2017-02-06 07:17:16 | -0.36 | y | 896 | 152 |
