Magnitude |
3.4 |
| Date & Time (UTC) | 2017-02-15 22:28:14.7 |
| Date & Time (Local) | 1395/11/28 01:58:14.7 |
| Location | Lat:37.538 Lon: 44.754 |
| Region | Azarbaijan Gharbi Province, 27 km -West of Orumiyeh |
Nearest Cities |
|
| 5 km of Movana, Azarbaijan Gharbi Province | |
| 16 km North of Silvaneh, Azarbaijan Gharbi Province | |
| 20 km South of Ravand sofla, Azarbaijan Gharbi Province | |
| 20 km North West of Razhan, Azarbaijan Gharbi Province | |
| 24 km South East of Sarv, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |

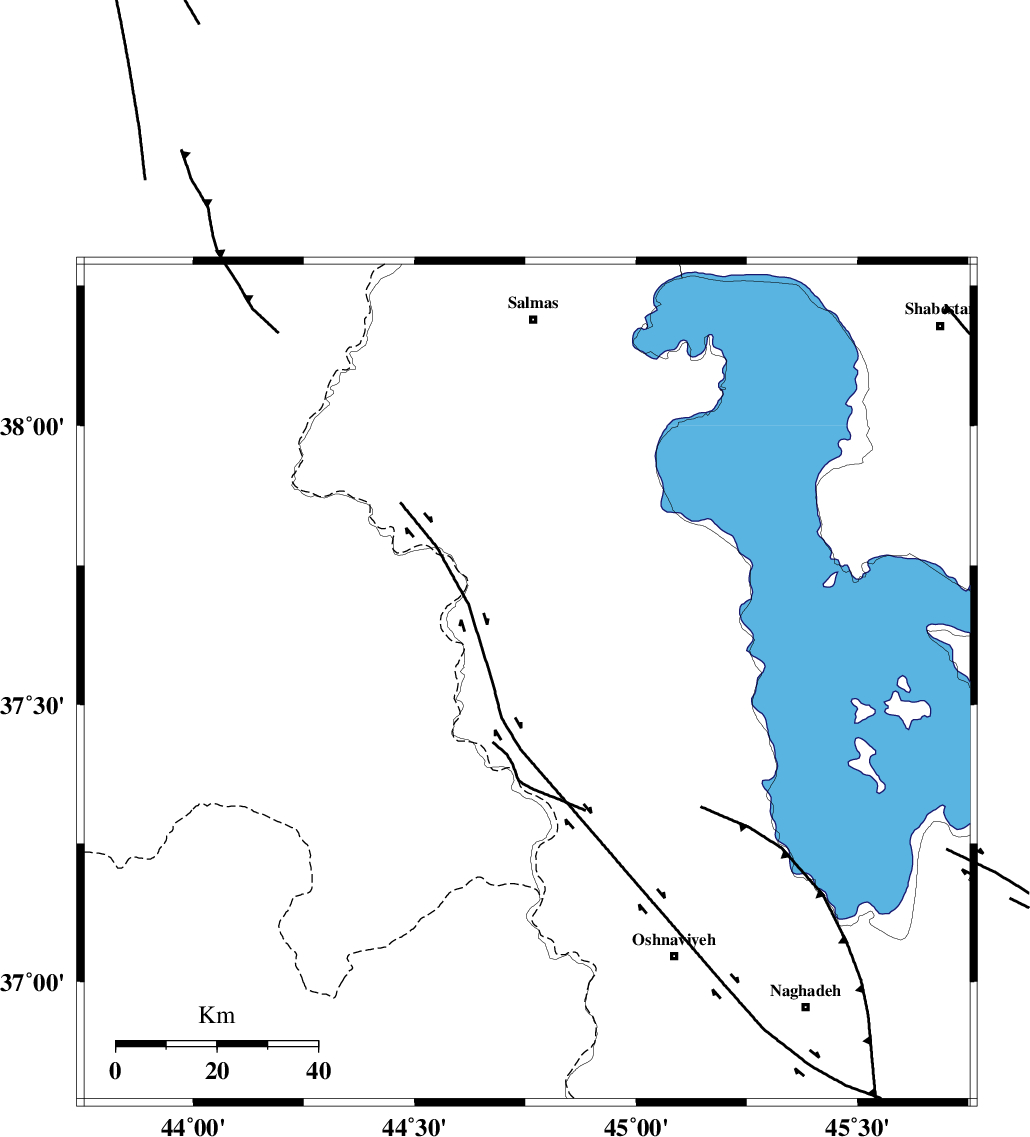

Faults within 150 km: |
|
| SALMAS (Length: 20 km) , Distance to epicenter: 57 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 83 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 96 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 4.7 km |
| Error in Longitude | 8 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 113428 | IIEES | SNGE | N | 107.9 | 0.79 | 2017-02-15 22:30:04 | 2017-02-18 08:20:00 | n |
| 113429 | IIEES | SNGE | E | 123.1 | 0.5 | 2017-02-15 22:30:04 | 2017-02-18 08:20:00 | n |
| 113430 | IIEES | GIDE | N | 38.6 | 0.48 | 2017-02-15 22:30:39 | 2017-02-18 08:20:00 | n |
| 113431 | IIEES | GIDE | E | 42.5 | 0.86 | 2017-02-15 22:30:41 | 2017-02-18 08:20:00 | n |
| 113432 | IIEES | THKV | N | 9.8 | 0.45 | 2017-02-15 22:31:05 | 2017-02-18 08:20:00 | n |
| 113433 | IIEES | THKV | E | 12.6 | 0.81 | 2017-02-15 22:31:10 | 2017-02-18 08:20:00 | n |
| 113434 | IIEES | ASAO | N | 4.8 | 0.97 | 2017-02-15 22:31:11 | 2017-02-18 08:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MAKU | Z | Pn | E | 2017-02-15 22:28:47 | 0.25 | y | 202 | 358 | |
| IIEES | MAKU | E | Sg | E | 2017-02-15 22:29:12 | -0.18 | y | 202 | 358 | |
| IIEES | GRMI | Z | Pn | E | 2017-02-15 22:29:04 | 3.98 | n | 4 | 309 | 62 |
| IIEES | SNGE | Z | Pn | E | 2017-02-15 22:29:06 | -0.29 | y | 357 | 139 | |
| IIEES | ZNJK | Z | Pn | E | 2017-02-15 22:29:07 | 0.11 | y | 362 | 104 | |
| IIEES | ZNJK | N | Sg | E | 2017-02-15 22:29:56 | -0.02 | y | 362 | 104 | |
| IIEES | ILBA | Z | Pn | E | 2017-02-15 22:29:16 | -2.14 | n | 4 | 454 | 163 |
| IIEES | GIDE | Z | Pn | E | 2017-02-15 22:29:19 | -0.04 | y | 463 | 97 | |
| IIEES | THKV | Z | Pn | E | 2017-02-15 22:29:34 | 0.23 | y | 576 | 106 | |
| IIEES | ASAO | Z | Pn | E | 2017-02-15 22:29:34 | 0.16 | y | 579 | 123 | |
| IIEES | KHMZ | Z | Pn | E | 2017-02-15 22:29:40 | -0.19 | y | 632 | 130 |
