Magnitude |
5.5 |
| Date & Time (UTC) | 2017-05-13 18:01:00.0 |
| Date & Time (Local) | 1396/2/23 22:31:00.0 |

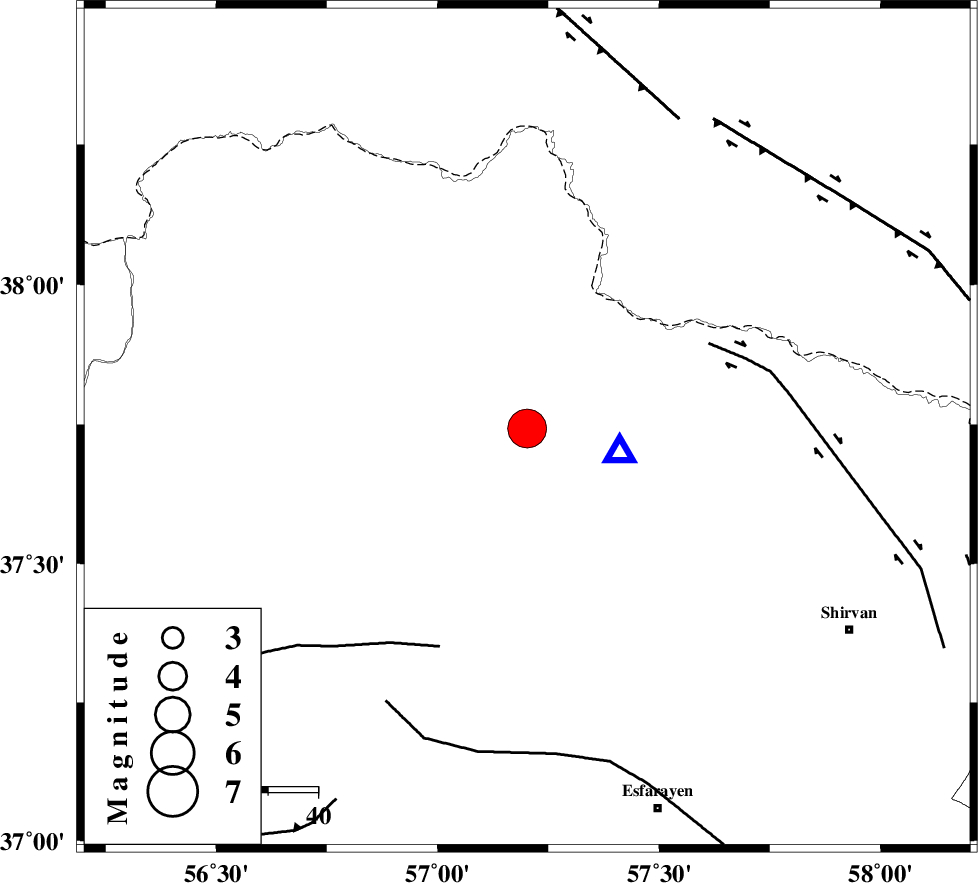

| Location | Lat:37.743 Lon: 57.202 |
| Region | Khorasan(north) Province, 32 km North-West of Bojnurd |
Nearest Cities |
|
| 20 km North East of Pish qaleh, Khorasan(north) Province | |
| 22 km South of Raz, Khorasan(north) Province | |
| 30 km South West of Gifan olia, Khorasan(north) Province | |
| 32 km North East of Ashkhaneh, Khorasan(north) Province | |
| 32 km North West of Bojnurd, Khorasan(north) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 40 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 47 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 61 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | 6.4 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115882 | IIEES | MRVT | E | 167000 | 0.88 | 2017-05-13 18:01:40 | 2017-05-14 04:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MRVT | Z | Pg | E | 2017-05-13 18:01:17 | 0.34 | y | 98.6 | 265 | |
| IIEES | MRVT | N | Sg | E | 2017-05-13 18:01:28 | -0.18 | y | 98.6 | 265 | |
| IIEES | SHRO | Z | Pn | E | 2017-05-13 18:01:34 | -0.43 | y | 220 | 209 | |
| IIEES | TABS | Z | Pn | E | 2017-05-13 18:02:03 | 0.03 | y | 454 | 181 | |
| IIEES | TABS | N | Sg | E | 2017-05-13 18:03:07 | 0.3 | y | 454 | 181 | |
| IIEES | SHRT | Z | Pn | E | 2017-05-13 18:02:13 | 0.35 | y | 534 | 147 | |
| IIEES | YZKH | Z | Pn | E | 2017-05-13 18:02:26 | -0.1 | y | 640 | 203 | |
| IIEES | GHVR | Z | Pn | E | 2017-05-13 18:02:27 | 0 | y | 647 | 238 | |
| IIEES | GIDE | Z | Pn | E | 2017-05-13 18:02:28 | -0.08 | y | 652 | 264 | |
| IIEES | BSRN | Z | Pn | E | 2017-05-13 18:02:29 | -0.67 | y | 665 | 164 | |
| IIEES | NASN | Z | Pn | E | 2017-05-13 18:02:31 | -0.53 | y | 678 | 217 | |
| IIEES | ASAO | Z | Pn | E | 2017-05-13 18:02:40 | 0.99 | y | 736 | 243 | |
| IIEES | KHMZ | Z | Pn | E | 2017-05-13 18:02:46 | 0.34 | y | 791 | 238 | |
| IIEES | KRBR | Z | Pn | E | 2017-05-13 18:02:54 | 0.04 | y | 862 | 183 | |
| IIEES | SNGE | Z | Pn | E | 2017-05-13 18:03:02 | -0.27 | y | 931 | 255 |
