Magnitude |
2.9 |
| Date & Time (UTC) | 2017-07-02 01:08:54.6 |
| Date & Time (Local) | 1396/4/11 05:38:54.6 |

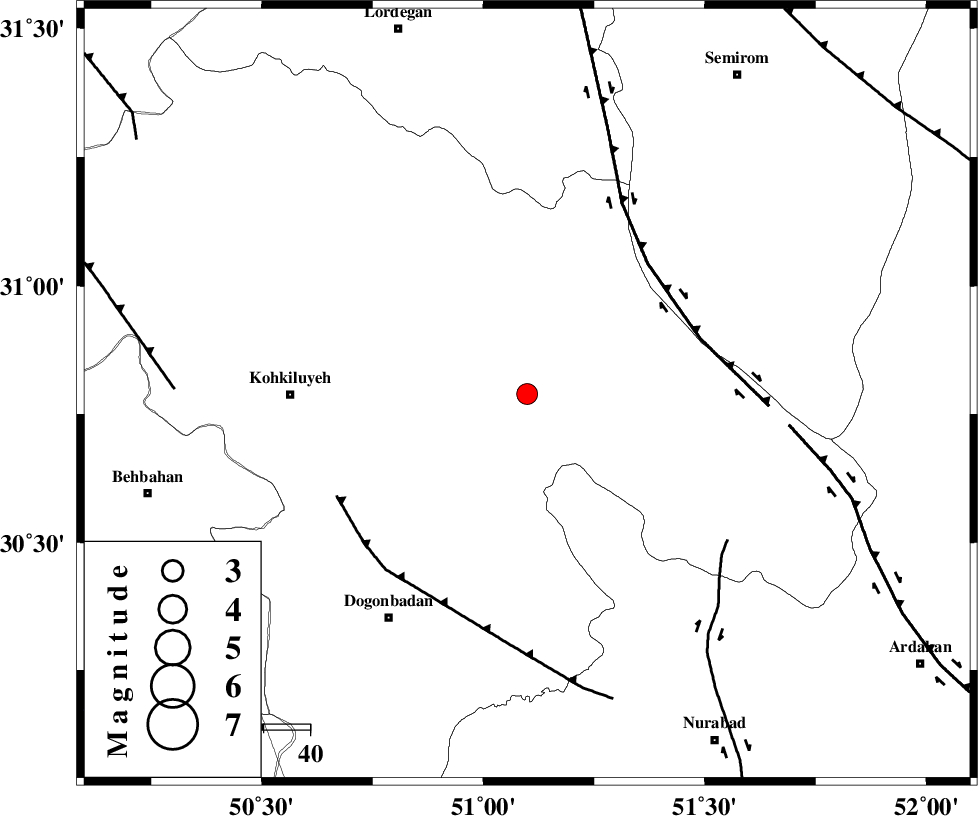

| Location | Lat:30.789 Lon: 51.099 |
| Region | Kohkiluieh va boyerahmad Province, 35 km -West of Sisakht |
Nearest Cities |
|
| 19 km North West of Chitab, Kohkiluieh va boyerahmad Province | |
| 23 km South of Margun, Kohkiluieh va boyerahmad Province | |
| 31 km West of Kerik, Kohkiluieh va boyerahmad Province | |
| 33 km North West of Sepidar, Kohkiluieh va boyerahmad Province | |
| 34 km South of Dezhak, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 38 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 47 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 54 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 2.1 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117226 | IIEES | AHRM | N | 95.2 | 0.62 | 2017-07-02 01:10:00 | 2017-07-02 05:13:00 | n |
| 117227 | IIEES | AHRM | E | 70.3 | 0.78 | 2017-07-02 01:10:08 | 2017-07-02 05:13:00 | n |
| 117228 | IIEES | GHIR | E | 20.4 | 0.54 | 2017-07-02 01:10:35 | 2017-07-02 05:13:00 | n |
| 117229 | IIEES | GHIR | N | 29.2 | 0.63 | 2017-07-02 01:10:40 | 2017-07-02 05:13:00 | n |
| 117230 | IIEES | ILBA | N | 4.7 | 0.52 | 2017-07-02 01:11:51 | 2017-07-02 05:13:00 | n |
| 117231 | IIEES | ILBA | E | 5.5 | 0.6 | 2017-07-02 01:12:03 | 2017-07-02 05:13:00 | n |
| 117232 | IIEES | SNGE | E | 4.7 | 0.51 | 2017-07-02 01:11:28 | 2017-07-02 05:13:00 | n |
| 117233 | IIEES | SNGE | N | 4.2 | 0.6 | 2017-07-02 01:11:32 | 2017-07-02 05:13:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2017-07-02 01:09:28 | -0.23 | y | 214 | 175 | |
| IIEES | AHRM | N | Sg | E | 2017-07-02 01:09:55 | -0.04 | y | 214 | 175 | |
| IIEES | NASN | Z | Pn | E | 2017-07-02 01:09:37 | 0.5 | y | 275 | 36 | |
| IIEES | NASN | N | Sg | E | 2017-07-02 01:10:12 | -0.48 | y | 275 | 36 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-02 01:09:41 | -2.38 | n | 4 | 332 | 146 |
| IIEES | KHMZ | Z | Pn | E | 2017-07-02 01:09:45 | 0.02 | y | 344 | 342 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-02 01:09:49 | 0.38 | y | 376 | 61 | |
| IIEES | ASAO | Z | Pn | E | 2017-07-02 01:09:55 | 0.15 | y | 429 | 347 | |
| IIEES | ILBA | Z | Pn | E | 2017-07-02 01:10:11 | 0.02 | y | 558 | 306 | |
| IIEES | SNGE | Z | Pn | E | 2017-07-02 01:10:15 | -0.36 | y | 592 | 325 |
