Magnitude |
2.7 |
| Date & Time (UTC) | 2017-07-23 20:22:42.0 |
| Date & Time (Local) | 1396/5/2 00:52:42.0 |

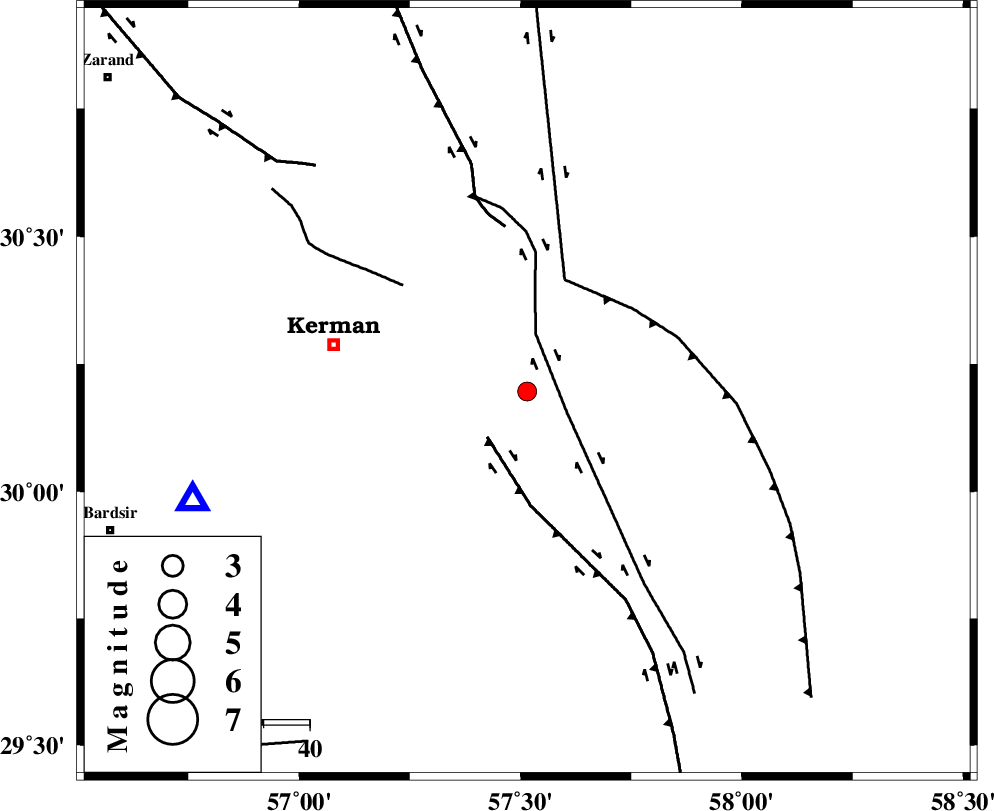

| Location | Lat:30.196 Lon: 57.515 |
| Region | Kerman Province, 43 km -East of Kerman |
Nearest Cities |
|
| 4 km North of Sirch, Kerman Province | |
| 14 km North West of Jushan, Kerman Province | |
| 27 km North East of Langar, Kerman Province | |
| 27 km North East of Mahan, Kerman Province | |
| 30 km South West of Shahdad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 10 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 13 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 26 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 7.5 km |
| Error in Longitude | 6 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117950 | IIEES | KRBR | E | 292.6 | 0.23 | 2017-07-23 20:23:10 | 2017-07-24 04:29:00 | n |
| 117951 | IIEES | KRBR | N | 341.2 | 0.31 | 2017-07-23 20:23:10 | 2017-07-24 04:29:00 | n |
| 117952 | IIEES | BSRN | E | 34.4 | 0.18 | 2017-07-23 20:23:59 | 2017-07-24 04:29:00 | n |
| 117953 | IIEES | BSRN | N | 38 | 0.18 | 2017-07-23 20:23:59 | 2017-07-24 04:29:00 | n |
| 117954 | IIEES | YZKH | E | 18.8 | 0.48 | 2017-07-23 20:24:36 | 2017-07-24 04:29:00 | n |
| 117955 | IIEES | YZKH | N | 13.5 | 0.48 | 2017-07-23 20:24:40 | 2017-07-24 04:29:00 | n |
| 117956 | IIEES | TABS | N | 20.9 | 0.53 | 2017-07-23 20:24:44 | 2017-07-24 04:29:00 | n |
| 117957 | IIEES | TABS | E | 13.5 | 0.6 | 2017-07-23 20:24:45 | 2017-07-24 04:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-07-23 20:22:55 | 0.16 | y | 76.5 | 252 | |
| IIEES | KRBR | N | Sg | E | 2017-07-23 20:23:04 | -0.35 | y | 76.5 | 252 | |
| IIEES | BSRN | Z | Pn | E | 2017-07-23 20:23:20 | 0.03 | y | 249 | 38 | |
| IIEES | BSRN | N | Sg | E | 2017-07-23 20:23:52 | -0.35 | y | 249 | 38 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-23 20:23:36 | 0.28 | y | 370 | 312 | |
| IIEES | TABS | Z | Pn | E | 2017-07-23 20:23:37 | 0.15 | y | 385 | 355 | |
| IIEES | SHRT | Z | Pn | E | 2017-07-23 20:23:47 | 0.22 | y | 464 | 34 |
