Magnitude |
2.9 |
| Date & Time (UTC) | 2017-11-12 21:40:56.9 |
| Date & Time (Local) | 1396/8/22 01:10:56.9 |

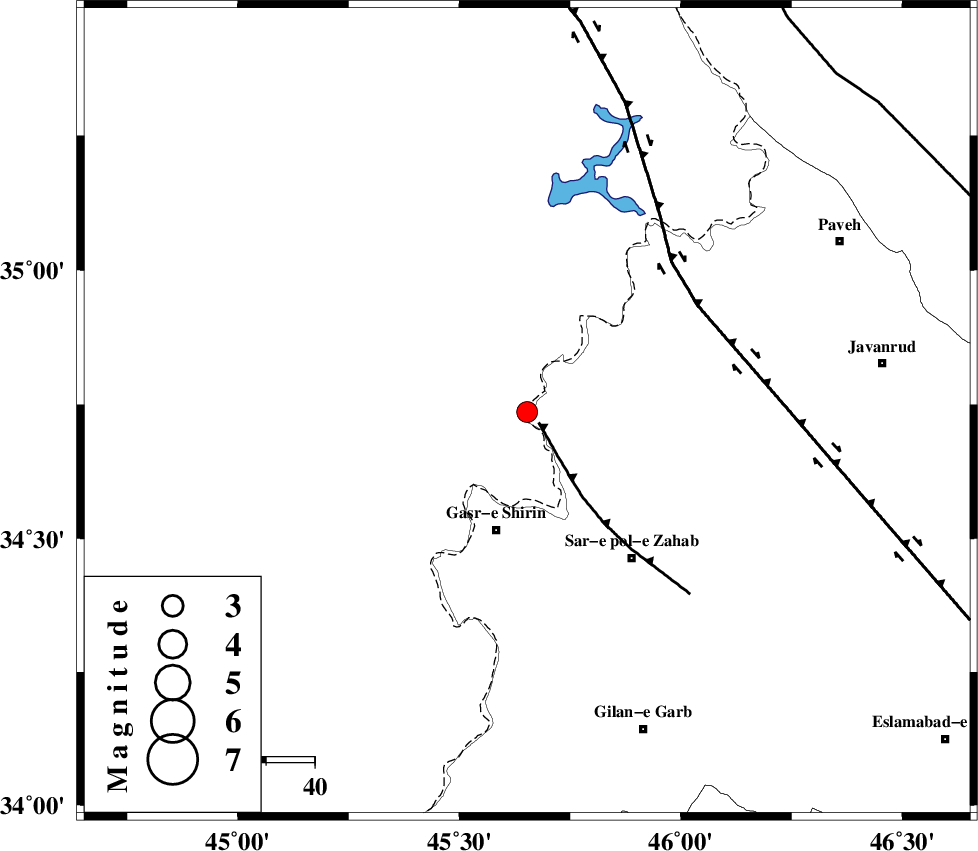

| Location | Lat:34.736 Lon: 45.653 |
| Region | Iraq, 17 km -West of Tazehabad |
Nearest Cities |
|
| 7 km of Tappeh rash, Kermanshah Province | |
| 14 km North West of Gardehnu, Kermanshah Province | |
| 17 km West of Tazehabad, Kermanshah Province | |
| 21 km North of Aqabarar, Kermanshah Province | |
| 22 km North West of Mirmiru, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 3 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 41 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 91 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 121478 | IIEES | SNGE | N | 170.9 | 0.59 | 2017-11-12 21:41:50 | 2017-11-13 09:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-12 21:41:19 | -0.23 | y | 134 | 157 | |
| IIEES | ILBA | N | Sg | E | 2017-11-12 21:41:37 | 0.17 | y | 134 | 157 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-12 21:41:24 | -0.16 | y | 160 | 75 | |
| IIEES | SNGE | N | Sg | E | 2017-11-12 21:41:44 | -0.01 | y | 160 | 75 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-12 21:41:49 | 0.18 | y | 348 | 51 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-12 21:42:07 | 0.2 | y | 494 | 23 | |
| IIEES | MAKU | Z | Pn | E | 2017-11-12 21:42:10 | -0.11 | y | 520 | 351 |
