Magnitude |
3.2 |
| Date & Time (UTC) | 2018-01-06 21:34:31.2 |
| Date & Time (Local) | 1396/10/17 01:04:31.2 |

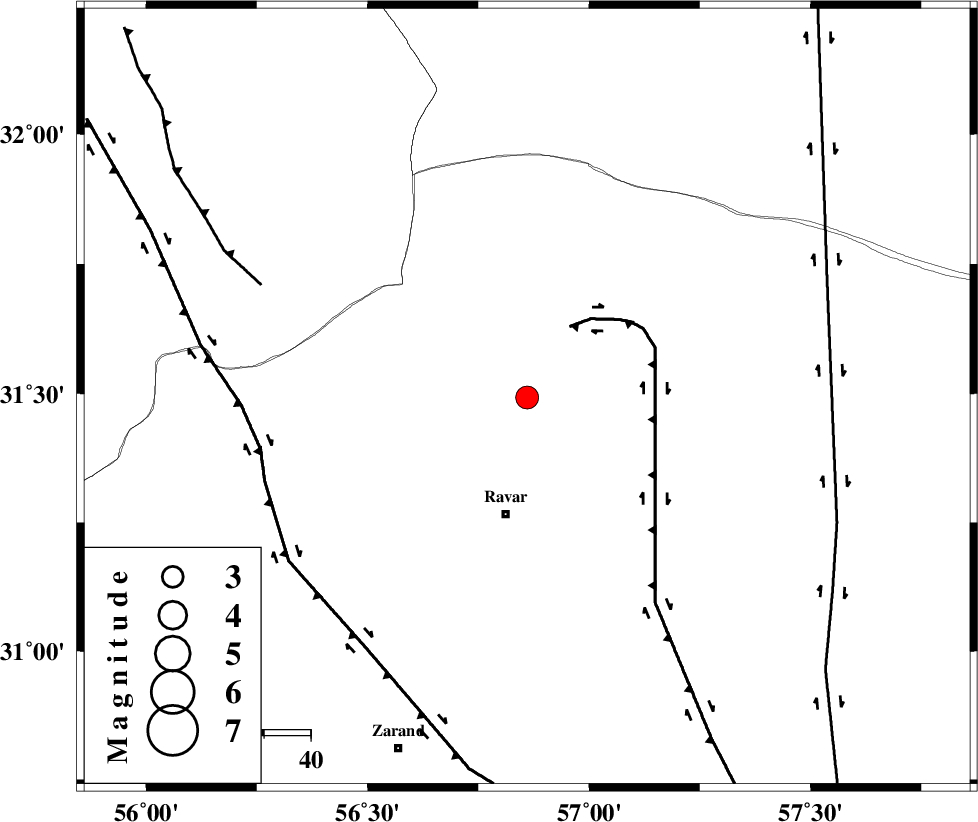

| Location | Lat:31.492 Lon: 56.86 |
| Region | Kerman Province, 26 km North of Ravar |
Nearest Cities |
|
| 20 km North of Dehali, Kerman Province | |
| 26 km North of Ravar, Kerman Province | |
| 54 km North East of Kuhbanan, Kerman Province | |
| 56 km North East of Dasht-e khak, Kerman Province | |
| 56 km North East of Jor, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 18 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 58 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 62 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126234 | IIEES | KRBR | E | 378.4 | 0.33 | 2018-01-06 21:35:23 | 2018-01-07 07:20:00 | n |
| 126235 | IIEES | KRBR | N | 398.7 | 0.24 | 2018-01-06 21:35:23 | 2018-01-07 07:20:00 | n |
| 126236 | IIEES | YZKH | E | 105.1 | 0.82 | 2018-01-06 21:35:43 | 2018-01-07 07:20:00 | n |
| 126237 | IIEES | YZKH | N | 109.7 | 0.59 | 2018-01-06 21:35:44 | 2018-01-07 07:20:00 | n |
| 126238 | IIEES | SHRO | N | 13.1 | 0.51 | 2018-01-06 21:37:06 | 2018-01-07 07:20:00 | n |
| 126239 | IIEES | SHRO | E | 14.4 | 0.51 | 2018-01-06 21:37:10 | 2018-01-07 07:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-01-06 21:34:59 | 0.25 | y | 168 | 183 | |
| IIEES | BSRN | Z | Pn | E | 2018-01-06 21:35:05 | -0.71 | y | 221 | 76 | |
| IIEES | BSRN | N | Sg | E | 2018-01-06 21:35:33 | -0.62 | y | 221 | 76 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-06 21:35:08 | -0.01 | y | 236 | 295 | |
| IIEES | YZKH | E | Sg | E | 2018-01-06 21:35:37 | -0.49 | y | 236 | 295 | |
| IIEES | TABS | Z | Pn | E | 2018-01-06 21:35:09 | 0.37 | y | 240 | 6 | |
| IIEES | SHRT | Z | Pn | E | 2018-01-06 21:35:29 | 0.96 | y | 401 | 53 | |
| IIEES | NASN | Z | Pn | E | 2018-01-06 21:35:29 | -0.43 | y | 409 | 292 | |
| IIEES | ZHSF | Z | Pn | E | 2018-01-06 21:35:32 | 0.23 | y | 430 | 118 | |
| IIEES | SHRO | Z | Pn | E | 2018-01-06 21:35:42 | 0.32 | y | 507 | 351 | |
| IIEES | MRVT | Z | Pn | E | 2018-01-06 21:36:05 | 0.88 | y | 688 | 354 |
