Magnitude |
3.2 |
| Date & Time (UTC) | 2018-02-09 12:05:31.6 |
| Date & Time (Local) | 1396/11/20 15:35:31.6 |

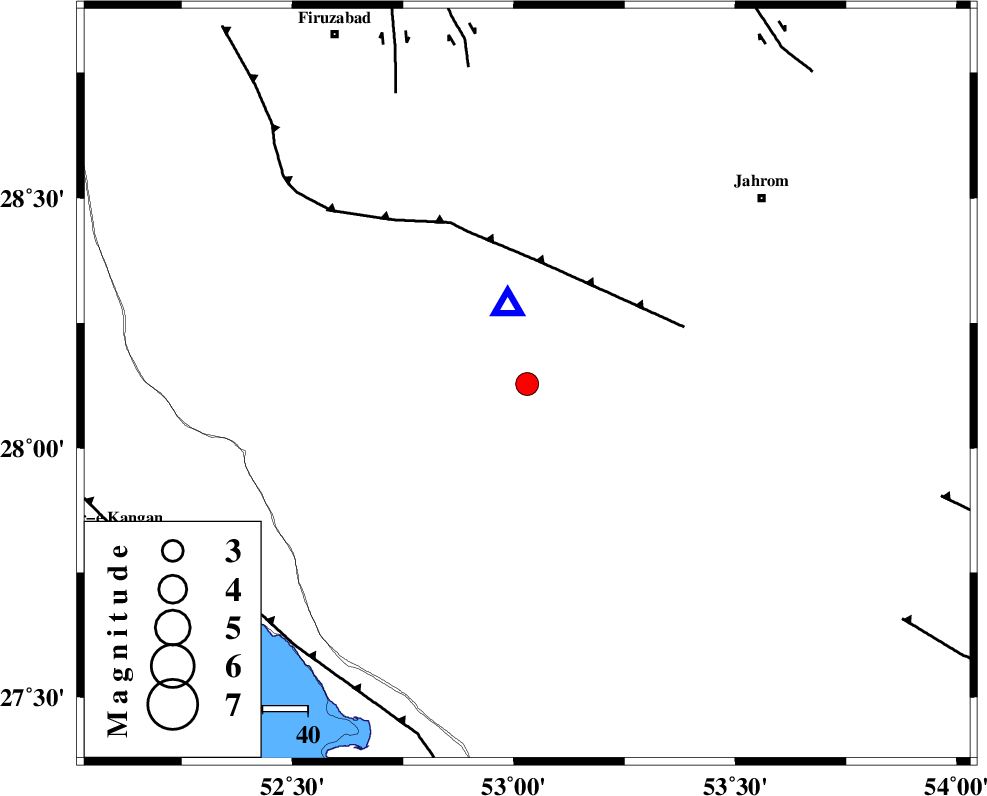

| Location | Lat:28.128 Lon: 53.03 |
| Region | Fars Province, 37 km South of Qir va Karzin |
Nearest Cities |
|
| 12 km West of Seyfabad, Fars Province | |
| 32 km South of Shahrak-e jonubi, Fars Province | |
| 33 km North East of Garmesht, Fars Province | |
| 37 km South of Qir va Karzin, Fars Province | |
| 39 km South West of Mobarakabad, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 28 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 71 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 71 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128058 | IIEES | AHRM | N | 155.5 | 0.44 | 2018-02-09 12:06:39 | 2018-02-10 09:18:00 | n |
| 128059 | IIEES | BNDS | N | 56.2 | 0.34 | 2018-02-09 12:07:24 | 2018-02-10 09:18:00 | n |
| 128060 | IIEES | BNDS | E | 50.2 | 0.54 | 2018-02-09 12:07:26 | 2018-02-10 09:18:00 | n |
| 128061 | IIEES | KRBR | N | 42 | 0.48 | 2018-02-09 12:07:39 | 2018-02-10 09:18:00 | n |
| 128062 | IIEES | KRBR | E | 32.1 | 0.4 | 2018-02-09 12:07:43 | 2018-02-10 09:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2018-02-09 12:05:35 | -0.11 | y | 17.9 | 346 | |
| IIEES | AHRM | Z | Pg | E | 2018-02-09 12:06:02 | 0.29 | y | 188 | 296 | |
| IIEES | AHRM | N | Sg | E | 2018-02-09 12:06:24 | -0.15 | y | 188 | 296 | |
| IIEES | BNDS | Z | Pn | E | 2018-02-09 12:06:18 | -0.19 | y | 320 | 104 | |
| IIEES | KRBR | Z | Pn | E | 2018-02-09 12:06:31 | 0.17 | y | 417 | 60 | |
| IIEES | YZKH | Z | Pn | E | 2018-02-09 12:06:40 | -0.18 | y | 496 | 17 | |
| IIEES | TABS | Z | Pn | E | 2018-02-09 12:07:09 | 0.31 | y | 726 | 32 |
