Magnitude |
3.5 |
| Date & Time (UTC) | 2018-09-25 21:50:51.5 |
| Date & Time (Local) | 1397/7/4 01:20:51.5 |

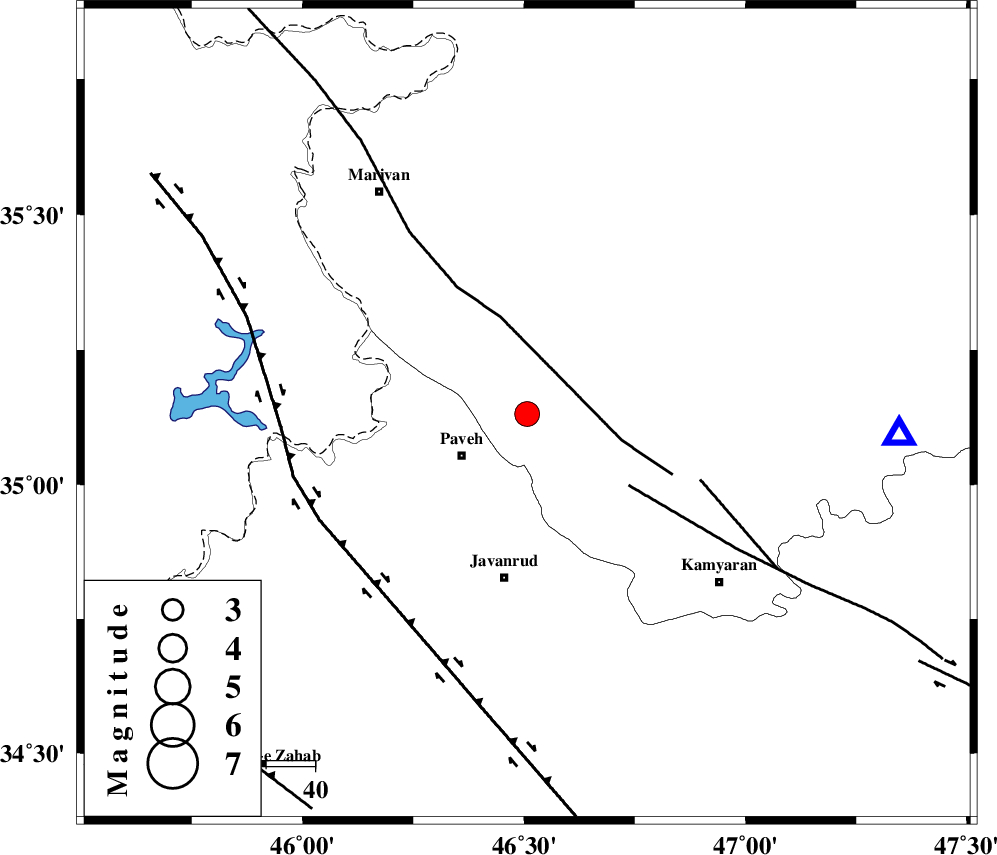

| Location | Lat:35.131 Lon: 46.507 |
| Region | Kurdistan Province, 16 km -East of Paveh |
Nearest Cities |
|
| 2 km of Zharizheh, Kurdistan Province | |
| 6 km of Baygalan, Kurdistan Province | |
| 15 km South West of Bisaran, Kurdistan Province | |
| 16 km North East of Paveh, Kermanshah Province | |
| 18 km South of Nagol, Kurdistan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 20 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 25 km | |
| MORVARID_F (Length: 24 km) , Distance to epicenter: 38 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | 2.4 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 137162 | IIEES | SNGE | E | 1796.7 | 0.65 | 2018-09-25 21:51:13 | 2018-09-26 10:37:00 | n |
| 137163 | IIEES | SRSL | N | 530.2 | 0.48 | 2018-09-25 21:51:50 | 2018-09-26 10:37:00 | n |
| 137164 | IIEES | SRSL | E | 559.6 | 0.48 | 2018-09-25 21:51:50 | 2018-09-26 10:37:00 | n |
| 137165 | IIEES | ILBA | N | 857.1 | 0.75 | 2018-09-25 21:51:45 | 2018-09-26 10:37:00 | n |
| 137166 | IIEES | ILBA | E | 722.4 | 0.62 | 2018-09-25 21:51:52 | 2018-09-26 10:37:00 | n |
| 137167 | IIEES | KHMZ | E | 84.3 | 0.58 | 2018-09-25 21:52:39 | 2018-09-26 10:37:00 | n |
| 137168 | IIEES | KHMZ | N | 72.6 | 0.65 | 2018-09-25 21:52:39 | 2018-09-26 10:37:00 | n |
| 137169 | IIEES | GIDE | N | 83.5 | 0.37 | 2018-09-25 21:52:34 | 2018-09-26 10:37:00 | n |
| 137170 | IIEES | GIDE | E | 84.9 | 0.83 | 2018-09-25 21:52:40 | 2018-09-26 10:37:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-09-25 21:51:00 | -4.63 | n | 4 | 76.7 | 93 |
| IIEES | SRSL | Z | Pg | E | 2018-09-25 21:51:16 | -0.25 | y | 154 | 321 | |
| IIEES | ILBA | Z | Pg | E | 2018-09-25 21:51:18 | -0.65 | y | 169 | 189 | |
| IIEES | ILBA | E | Sg | E | 2018-09-25 21:51:40 | 0.13 | y | 169 | 189 | |
| IIEES | ZNJK | Z | Pn | E | 2018-09-25 21:51:31 | 0.13 | y | 260 | 48 | |
| IIEES | ZNJK | N | Sg | E | 2018-09-25 21:52:04 | -0.65 | y | 260 | 48 | |
| IIEES | ASAO | Z | Pn | E | 2018-09-25 21:51:40 | 0.5 | y | 328 | 100 | |
| IIEES | KHMZ | Z | Pn | E | 2018-09-25 21:51:43 | 0.1 | y | 353 | 115 | |
| IIEES | GIDE | Z | Pn | E | 2018-09-25 21:51:44 | 0.2 | y | 366 | 56 | |
| IIEES | THKV | Z | Pn | E | 2018-09-25 21:51:50 | 0.63 | y | 406 | 76 | |
| IIEES | GRMI | Z | Pn | E | 2018-09-25 21:51:52 | 0.2 | y | 426 | 16 | |
| IIEES | CHTH | Z | Pn | E | 2018-09-25 21:51:52 | -0.26 | y | 428 | 77 | |
| IIEES | GHVR | Z | Pn | E | 2018-09-25 21:51:54 | 0.18 | y | 440 | 98 | |
| IIEES | MAKU | Z | Pn | E | 2018-09-25 21:52:01 | 0.52 | y | 496 | 342 | |
| IIEES | DAMV | Z | Pn | E | 2018-09-25 21:52:01 | -0.19 | y | 500 | 82 | |
| IIEES | NASN | Z | Pn | E | 2018-09-25 21:52:18 | -0.43 | y | 637 | 112 |
