Magnitude |
4.3 |
| Date & Time (UTC) | 2018-12-11 08:35:27.5 |
| Date & Time (Local) | 1397/9/20 12:05:27.5 |

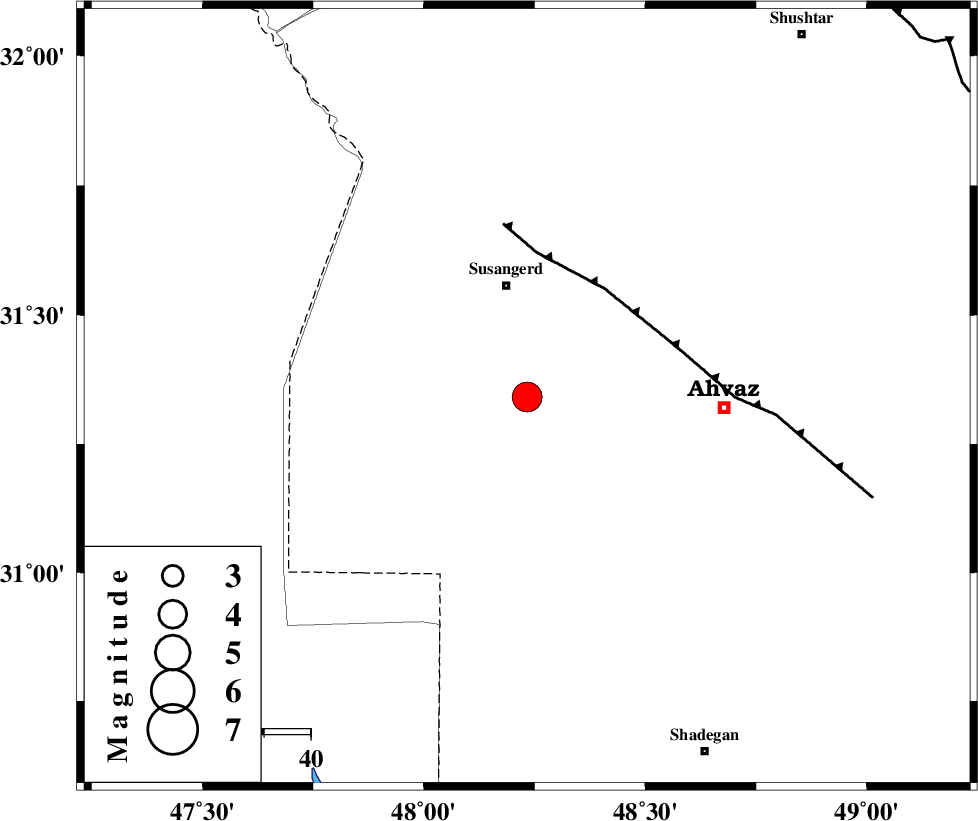

| Location | Lat:31.341 Lon: 48.233 |
| Region | Khoozestan Province, 24 km South of Susangerd |
Nearest Cities |
|
| 20 km South East of Hoveizeh, Khoozestan Province | |
| 22 km South of Jalaliyeh, Khoozestan Province | |
| 24 km South of Susangerd, Khoozestan Province | |
| 24 km South West of Hamidiyeh, Khoozestan Province | |
| 26 km South West of Dehkade, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 29 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 97 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 114 km | |
| Number of Phases | 21 |
| RMS | 0.5 |
| Number of Stations | 21 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 139260 | IIEES | ILBA | E | 1520.8 | 0.42 | 2018-12-11 08:37:05 | 2018-12-11 09:27:00 | n |
| 139261 | IIEES | ILBA | N | 1475.7 | 0.7 | 2018-12-11 08:37:10 | 2018-12-11 09:27:00 | n |
| 139262 | IIEES | AHRM | N | 526.2 | 0.49 | 2018-12-11 08:37:36 | 2018-12-11 09:27:00 | n |
| 139263 | IIEES | AHRM | E | 493.8 | 0.49 | 2018-12-11 08:37:47 | 2018-12-11 09:27:00 | n |
| 139264 | IIEES | SNGE | N | 216.3 | 0.5 | 2018-12-11 08:37:15 | 2018-12-11 09:27:00 | n |
| 139265 | IIEES | GHVR | N | 195 | 0.75 | 2018-12-11 08:37:43 | 2018-12-11 09:27:00 | n |
| 139266 | IIEES | GHVR | E | 218.8 | 0.87 | 2018-12-11 08:37:50 | 2018-12-11 09:27:00 | n |
| 139267 | IIEES | NASN | E | 168.7 | 0.27 | 2018-12-11 08:37:23 | 2018-12-11 09:27:00 | n |
| 139268 | IIEES | GHIR | N | 99 | 0.49 | 2018-12-11 08:38:31 | 2018-12-11 09:27:00 | n |
| 139269 | IIEES | SRSL | E | 85.7 | 0.38 | 2018-12-11 08:37:54 | 2018-12-11 09:27:00 | n |
| 139270 | IIEES | SRSL | N | 88.9 | 0.45 | 2018-12-11 08:37:58 | 2018-12-11 09:27:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-12-11 08:36:14 | 0.53 | y | 312 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-12-11 08:36:13 | -0.59 | y | 317 | 324 | |
| IIEES | ASAO | Z | Pn | E | 2018-12-11 08:36:25 | 0.82 | y | 393 | 25 | |
| IIEES | AHRM | Z | Pn | E | 2018-12-11 08:36:25 | 0.47 | y | 403 | 132 | |
| IIEES | SNGE | Z | Pn | E | 2018-12-11 08:36:28 | 0.41 | y | 424 | 349 | |
| IIEES | GHVR | Z | Pn | E | 2018-12-11 08:36:29 | -1.63 | n | 4 | 448 | 38 |
| IIEES | NASN | Z | Pn | E | 2018-12-11 08:36:32 | 0.05 | y | 461 | 68 | |
| IIEES | THKV | Z | Pn | E | 2018-12-11 08:36:45 | 0.22 | y | 564 | 25 | |
| IIEES | GHIR | Z | Pn | E | 2018-12-11 08:36:46 | -0.06 | y | 571 | 125 | |
| IIEES | CHTH | Z | Pn | E | 2018-12-11 08:36:46 | -0.27 | y | 573 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-12-11 08:36:48 | -0.45 | y | 589 | 35 | |
| IIEES | ZNJK | Z | Pn | E | 2018-12-11 08:36:49 | 0.14 | y | 593 | 4 | |
| IIEES | SRSL | Z | Pn | E | 2018-12-11 08:36:49 | -0.32 | y | 599 | 335 | |
| IIEES | YZKH | Z | Pn | E | 2018-12-11 08:36:50 | -0.57 | y | 613 | 77 | |
| IIEES | GIDE | Z | Pn | E | 2018-12-11 08:36:54 | 0.04 | y | 638 | 14 | |
| IIEES | GRMI | Z | Pn | E | 2018-12-11 08:37:18 | -0.04 | y | 829 | 358 | |
| IIEES | KRBR | Z | Pn | E | 2018-12-11 08:37:18 | -0.24 | y | 831 | 98 | |
| IIEES | TABS | Z | Pn | E | 2018-12-11 08:37:22 | -0.78 | y | 873 | 71 | |
| IIEES | SHRO | Z | Pn | E | 2018-12-11 08:37:24 | -1.01 | y | 888 | 52 | |
| IIEES | BSRN | Z | Pn | E | 2018-12-11 08:37:43 | -0.2 | y | 1035 | 83 | |
| IIEES | SHRT | Z | Pn | E | 2018-12-11 08:37:59 | 0.06 | y | 1161 | 74 |
