Magnitude |
3.3 |
| Date & Time (UTC) | 2018-12-26 06:57:43.1 |
| Date & Time (Local) | 1397/10/5 10:27:43.1 |

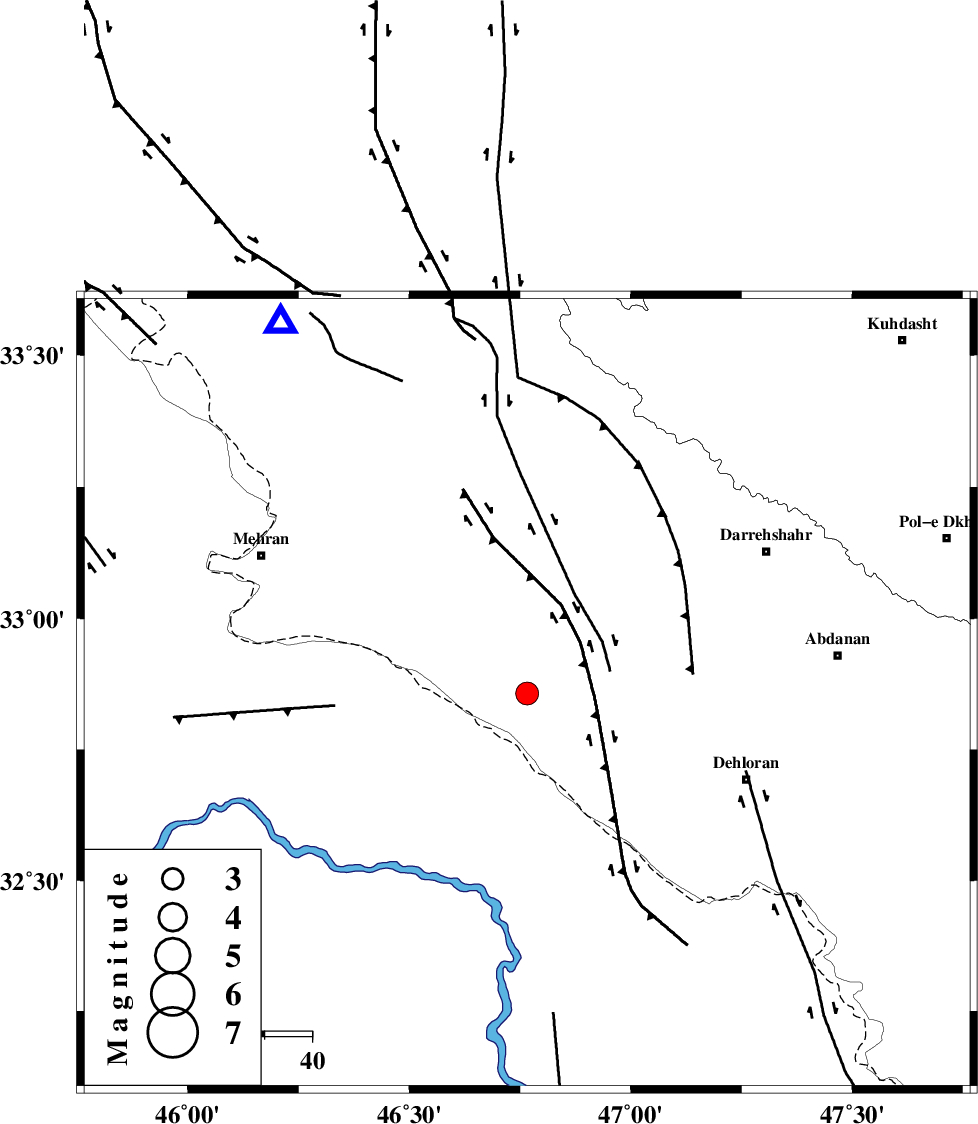

| Location | Lat:32.857 Lon: 46.766 |
| Region | Ilam Province, 50 km North-West of Dehloran |
Nearest Cities |
|
| 20 km North West of Bishehzar, Ilam Province | |
| 45 km South West of Meymeh, Ilam Province | |
| 48 km South East of Gonbad-e pirmohammad, Ilam Province | |
| 50 km North West of Dehloran, Ilam Province | |
| 50 km South West of Badreh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 5 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 45 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 50 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 139619 | IIEES | ILBA | E | 1008.6 | 0.33 | 2018-12-26 06:58:17 | 2018-12-26 09:10:00 | n |
| 139620 | IIEES | ILBA | N | 988.7 | 0.49 | 2018-12-26 06:58:18 | 2018-12-26 09:10:00 | n |
| 139621 | IIEES | SNGE | E | 143.3 | 0.61 | 2018-12-26 06:59:02 | 2018-12-26 09:10:00 | n |
| 139622 | IIEES | SNGE | N | 128 | 0.53 | 2018-12-26 06:59:04 | 2018-12-26 09:10:00 | n |
| 139623 | IIEES | ASAO | E | 34.3 | 0.56 | 2018-12-26 06:59:31 | 2018-12-26 09:10:00 | n |
| 139624 | IIEES | SRSL | N | 59.7 | 0.59 | 2018-12-26 06:59:42 | 2018-12-26 09:10:00 | n |
| 139625 | IIEES | SRSL | E | 57.2 | 0.66 | 2018-12-26 06:59:46 | 2018-12-26 09:10:00 | n |
| 139626 | IIEES | GHVR | E | 30.8 | 0.61 | 2018-12-26 06:59:40 | 2018-12-26 09:10:00 | n |
| 139627 | IIEES | GHVR | N | 25.3 | 0.7 | 2018-12-26 07:00:01 | 2018-12-26 09:10:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-12-26 06:57:59 | -0.25 | y | 99.7 | 329 | |
| IIEES | SNGE | Z | Pn | E | 2018-12-26 06:58:22 | 0.07 | y | 254 | 12 | |
| IIEES | SNGE | N | Sg | E | 2018-12-26 06:58:54 | -0.12 | y | 254 | 12 | |
| IIEES | KHMZ | Z | Pn | E | 2018-12-26 06:58:29 | -0.21 | y | 314 | 71 | |
| IIEES | ASAO | Z | Pn | E | 2018-12-26 06:58:35 | -0.03 | y | 356 | 57 | |
| IIEES | SRSL | Z | Pn | E | 2018-12-26 06:58:39 | 0.09 | y | 392 | 342 | |
| IIEES | SRSL | E | S | E | 2018-12-26 06:59:21 | 0.14 | y | 392 | 342 | |
| IIEES | GHVR | Z | Pn | E | 2018-12-26 06:58:47 | 0.09 | y | 453 | 65 | |
| IIEES | ZNJK | Z | Pn | E | 2018-12-26 06:58:48 | 0.38 | y | 458 | 22 |
