Magnitude |
4.2 |
| Date & Time (UTC) | 2020-06-09 19:44:54.5 |
| Date & Time (Local) | 1399/3/21 00:14:54.5 |

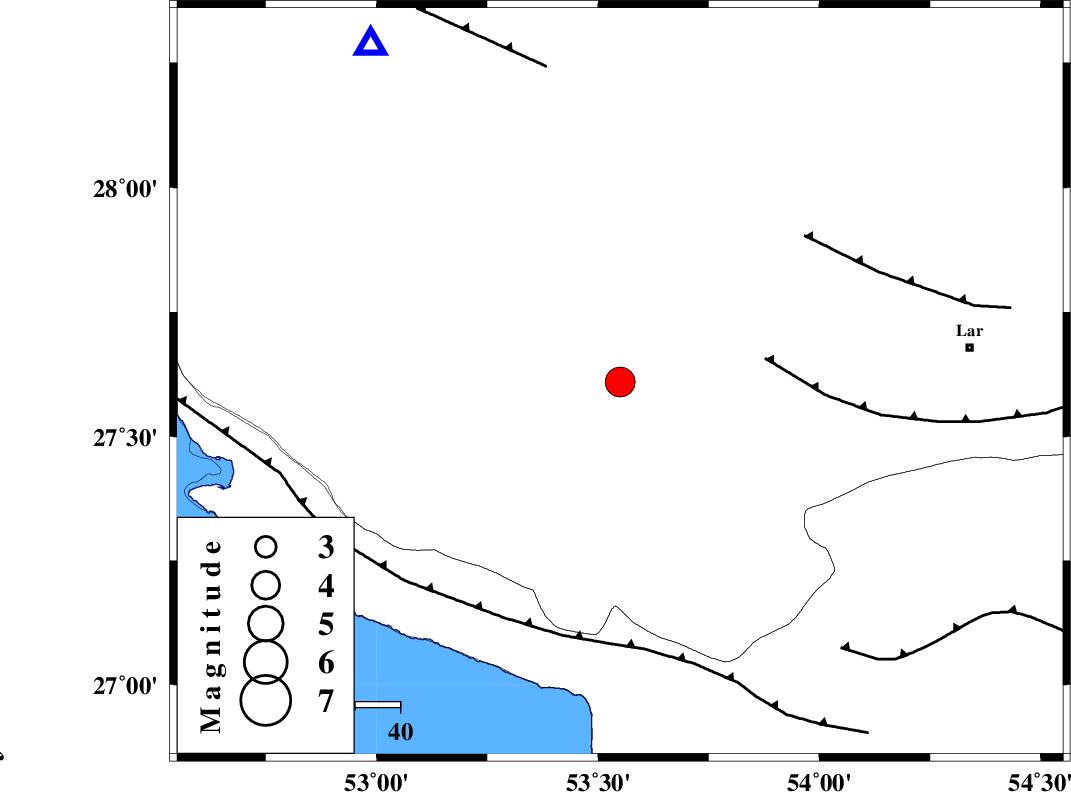

| Location | Lat:27.61 Lon: 53.55 |
| Region | Fars Province, 49 km North-East of Lamerd |
Nearest Cities |
|
| 4 km North of Fedagh, Fars Province | |
| 15 km South of Ard, Fars Province | |
| 21 km North of Beyram, Fars Province | |
| 25 km South West of Fishur, Fars Province | |
| 32 km South East of Khonj, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 33 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 52 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 58 km | |
| Number of Phases | 33 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | 3 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154283 | IIEES SC | LMD1 | Z | 11000 | 1 | 2020-06-09 19:45:33 | 2020-06-10 10:30:00 | n |
| 154284 | IIEES SC | BNDS | Z | 2000 | 1 | 2020-06-09 19:46:33 | 2020-06-10 10:30:00 | n |
| 154285 | IIEES SC | AHRM | Z | 120 | 1 | 2020-06-09 19:46:41 | 2020-06-10 10:30:00 | n |
| 154286 | IIEES SC | KLNJ | Z | 180 | 1 | 2020-06-09 19:47:43 | 2020-06-10 10:30:00 | n |
| 154287 | IIEES SC | YZKH | Z | 70 | 1 | 2020-06-09 19:48:02 | 2020-06-10 10:30:00 | n |
| 154288 | IIEES SC | NASN | Z | 46 | 1 | 2020-06-09 19:47:58 | 2020-06-10 10:30:00 | n |
| 154289 | IIEES SC | NASN | Z | 44 | 0.53 | 2020-06-09 19:46:31 | 2020-06-10 10:30:00 | n |
| 154290 | IIEES SC | GTMR | Z | 54 | 1 | 2020-06-09 19:48:42 | 2020-06-10 10:30:00 | n |
| 154291 | IIEES SC | GTMR | Z | 15 | 1.28 | 2020-06-09 19:46:56 | 2020-06-10 10:30:00 | n |
| 154292 | IIEES SC | BSRN | Z | 52 | 1 | 2020-06-09 19:48:51 | 2020-06-10 10:30:00 | n |
| 154293 | IIEES SC | BSRN | Z | 8.1 | 1.11 | 2020-06-09 19:47:00 | 2020-06-10 10:30:00 | n |
| 154294 | IIEES SC | ZHSF | Z | 10 | 0.68 | 2020-06-09 19:47:01 | 2020-06-10 10:30:00 | n |
| 154295 | IIEES SC | TABS | Z | 37 | 1 | 2020-06-09 19:48:58 | 2020-06-10 10:30:00 | n |
| 154296 | IIEES SC | TABS | Z | 23 | 0.73 | 2020-06-09 19:46:53 | 2020-06-10 10:30:00 | n |
| 154297 | IIEES SC | KHMZ | Z | 21 | 1 | 2020-06-09 19:48:46 | 2020-06-10 10:30:00 | n |
| 154298 | IIEES SC | KHMZ | Z | 7.7 | 0.67 | 2020-06-09 19:46:57 | 2020-06-10 10:30:00 | n |
| 154299 | IIEES SC | GHVR | Z | 860 | 1 | 2020-06-09 19:47:59 | 2020-06-10 10:30:00 | n |
| 154300 | IIEES SC | GHVR | Z | 37 | 2.18 | 2020-06-09 19:47:11 | 2020-06-10 10:30:00 | n |
| 154301 | IIEES SC | ASAO | Z | 24 | 1 | 2020-06-09 19:48:52 | 2020-06-10 10:30:00 | n |
| 154302 | IIEES SC | ASAO | Z | 8.4 | 0.63 | 2020-06-09 19:47:09 | 2020-06-10 10:30:00 | n |
| 154303 | IIEES SC | SRVN | Z | 21 | 1 | 2020-06-09 19:48:32 | 2020-06-10 10:30:00 | n |
| 154304 | IIEES SC | SRVN | Z | 25 | 0.68 | 2020-06-09 19:47:21 | 2020-06-10 10:30:00 | n |
| 154305 | IIEES SC | DAMV | Z | 16 | 0.59 | 2020-06-09 19:47:04 | 2020-06-10 10:30:00 | n |
| 154306 | IIEES SC | RAYN | Z | 17 | 0.61 | 2020-06-09 19:47:22 | 2020-06-10 10:30:00 | n |
| 154307 | IIEES SC | SHRT | Z | 6.4 | 0.77 | 2020-06-09 19:47:02 | 2020-06-10 10:30:00 | n |
| 154308 | IIEES SC | SHRO | Z | 12 | 0.97 | 2020-06-09 19:47:04 | 2020-06-10 10:30:00 | n |
| 154309 | IIEES SC | ILBA | Z | 6.1 | 0.83 | 2020-06-09 19:47:31 | 2020-06-10 10:30:00 | n |
| 154310 | IIEES SC | QABG | Z | 1.8 | 0.7 | 2020-06-09 19:47:27 | 2020-06-10 10:30:00 | n |
| 154311 | IIEES SC | GLO | Z | 74 | 0.81 | 2020-06-09 19:47:33 | 2020-06-10 10:30:00 | n |
| 154312 | IIEES SC | SBZV | Z | 5.1 | 1.69 | 2020-06-09 19:47:42 | 2020-06-10 10:30:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-06-09 19:45:03 | 0.1 | y | 44 | 232 | |
| IIEES SC | BNDS | Z | IP | I | 2020-06-09 19:45:34 | -0.1 | y | 255 | 95 | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-09 19:45:35 | 0.5 | y | 255 | 302 | |
| IIEES SC | KRBR | Z | IP | I | 2020-06-09 19:45:44 | -8.9 | n | 4 | 411 | 50 |
| IIEES SC | KLNJ | Z | IP | I | 2020-06-09 19:45:54 | -0.7 | y | 422 | 333 | |
| IIEES SC | YZKH | Z | IP | I | 2020-06-09 19:46:10 | 0.9 | y | 544 | 11 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-09 19:46:13 | -1.2 | y | 578 | 353 | |
| IIEES SC | GTMR | Z | IP | I | 2020-06-09 19:46:27 | -0.3 | y | 689 | 322 | |
| IIEES SC | BSRN | Z | IP | I | 2020-06-09 19:46:32 | -0.6 | y | 722 | 48 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-06-09 19:46:35 | 0.3 | y | 745 | 73 | |
| IIEES SC | TABS | Z | IP | I | 2020-06-09 19:46:35 | -0.6 | y | 756 | 27 | |
| IIEES SC | KHMZ | Z | IP | I | 2020-06-09 19:46:39 | 1.7 | y | 767 | 333 | |
| IIEES SC | GHVR | Z | IP | I | 2020-06-09 19:46:41 | 0.7 | y | 789 | 344 | |
| IIEES SC | ASAO | Z | IP | I | 2020-06-09 19:46:47 | 0.5 | y | 845 | 336 | |
| IIEES SC | SRVN | Z | IP | I | 2020-06-09 19:46:52 | 1.2 | y | 878 | 92 | |
| IIEES SC | DAMV | Z | IP | I | 2020-06-09 19:46:53 | -1.2 | y | 900 | 350 | |
| IIEES SC | RAYN | Z | IP | I | 2020-06-09 19:46:56 | -1.6 | y | 922 | 241 | |
| IIEES SC | SHRT | Z | IP | I | 2020-06-09 19:46:58 | 0.3 | y | 934 | 44 | |
| IIEES SC | SHRO | Z | IP | I | 2020-06-09 19:47:01 | -1 | y | 956 | 14 | |
| IIEES SC | ILBA | Z | IP | I | 2020-06-09 19:47:04 | 0.9 | y | 967 | 313 | |
| IIEES SC | QABG | Z | IP | I | 2020-06-09 19:47:03 | -0.5 | y | 978 | 337 | |
| IIEES SC | GLO | Z | IP | I | 2020-06-09 19:47:06 | 1.2 | y | 989 | 2 | |
| IIEES SC | SBZV | Z | IP | I | 2020-06-09 19:47:13 | 0.6 | y | 1045 | 22 | |
| IIEES SC | MRVT | E | IP | I | 2020-06-09 19:47:31 | 7.6 | n | 4 | 1145 | 12 |
| IIEES SC | NASN | Z | IVmB_BB | 2020-06-09 19:46:41 | y | 1 | 578 | 353 | ||
| IIEES SC | BSRN | Z | IVmB_BB | 2020-06-09 19:46:58 | y | 1 | 722 | 48 | ||
| IIEES SC | ZHSF | Z | IVmB_BB | 2020-06-09 19:47:29 | y | 1 | 745 | 73 | ||
| IIEES SC | TABS | Z | IVmB_BB | 2020-06-09 19:47:17 | y | 1 | 756 | 27 | ||
| IIEES SC | GHVR | Z | IVmB_BB | 2020-06-09 19:47:19 | y | 1 | 789 | 344 | ||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-06-09 19:47:20 | y | 1 | 845 | 336 | ||
| IIEES SC | DAMV | Z | IVmB_BB | 2020-06-09 19:47:04 | y | 1 | 900 | 350 | ||
| IIEES SC | SHRO | Z | IVmB_BB | 2020-06-09 19:47:37 | y | 1 | 956 | 14 | ||
| IIEES SC | GLO | Z | IVmB_BB | 2020-06-09 19:47:34 | y | 1 | 989 | 2 |
