Magnitude |
3.4 |
| Date & Time (UTC) | 2020-06-11 02:41:55.7 |
| Date & Time (Local) | 1399/3/22 07:11:55.7 |

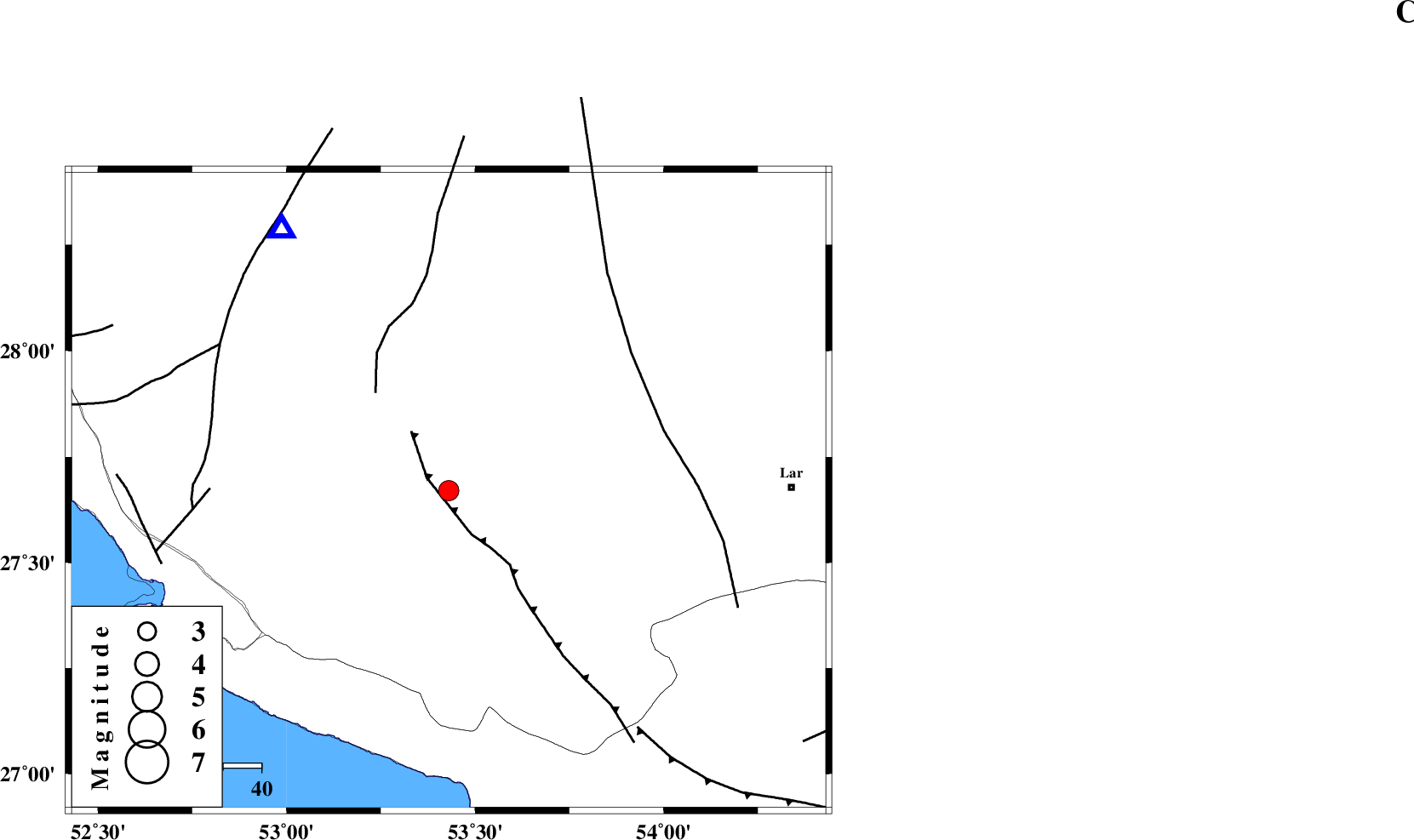

| Location | Lat:27.67 Lon: 53.43 |
| Region | Fars Province, 46 km North-East of Lamerd |
Nearest Cities |
|
| 13 km North of Fedagh, Fars Province | |
| 21 km West of Ard, Fars Province | |
| 22 km South of Khonj, Fars Province | |
| 28 km North of Beyram, Fars Province | |
| 29 km South West of Fishur, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 44 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 59 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 61 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 3 km |
| Error in Longitude | 0 km |
| Error in Depth | 25 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 154413 | IIEES SC | LMD1 | Z | 4700 | 1 | 2020-06-11 02:42:16 | 2020-06-13 10:26:00 | n |
| 154414 | IIEES SC | AHRM | Z | 46 | 1 | 2020-06-11 02:43:22 | 2020-06-13 10:26:00 | n |
| 154415 | IIEES SC | YZKH | Z | 11 | 1 | 2020-06-11 02:44:47 | 2020-06-13 10:26:00 | n |
| 154416 | IIEES SC | NASN | Z | 9.6 | 1 | 2020-06-11 02:44:35 | 2020-06-13 10:26:00 | n |
| 154417 | IIEES SC | TABS | Z | 5.3 | 1 | 2020-06-11 02:44:58 | 2020-06-13 10:26:00 | n |
| 154418 | IIEES SC | ASAO | Z | 7.5 | 1 | 2020-06-11 02:45:14 | 2020-06-13 10:26:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | LMD1 | Z | IP | I | 2020-06-11 02:42:03 | 0 | y | 44 | 215 | |
| IIEES SC | AHRM | Z | IP | I | 2020-06-11 02:42:34 | 0.1 | y | 244 | 302 | |
| IIEES SC | KRBR | Z | IP | I | 2020-06-11 02:42:46 | -9.6 | n | 4 | 411 | 52 |
| IIEES SC | YZKH | Z | IP | I | 2020-06-11 02:43:10 | 0.3 | y | 533 | 12 | |
| IIEES SC | NASN | Z | IP | I | 2020-06-11 02:43:14 | -0.4 | y | 567 | 354 | |
| IIEES SC | TABS | Z | IP | I | 2020-06-11 02:43:36 | -0.7 | y | 756 | 28 | |
| IIEES SC | ASAO | Z | IP | I | 2020-06-11 02:43:47 | -0.1 | y | 834 | 337 | |
| IIEES SC | ILBA | Z | IP | I | 2020-06-11 02:44:00 | -2.2 | n | 4 | 956 | 314 |
| IIEES SC | GLO | Z | IP | I | 2020-06-11 02:44:08 | 2.5 | n | 4 | 978 | 2 |
