Magnitude |
3.2 |
| Date & Time (UTC) | 2020-09-19 09:23:13.5 |
| Date & Time (Local) | 1399/6/29 13:53:13.5 |
| Location | Lat:30.8 Lon: 57.23 |
| Region | Kerman Province, 59 km North-East of Kerman |
Nearest Cities |
|
| 18 km North of Harjand, Kerman Province | |
| 25 km North East of Hejdak, Kerman Province | |
| 33 km North of Dehlulu, Kerman Province | |
| 38 km North East of Hutak, Kerman Province | |
| 38 km North East of Chatrud, Kerman Province | |
| Depth | 10 km |
| Agency | |

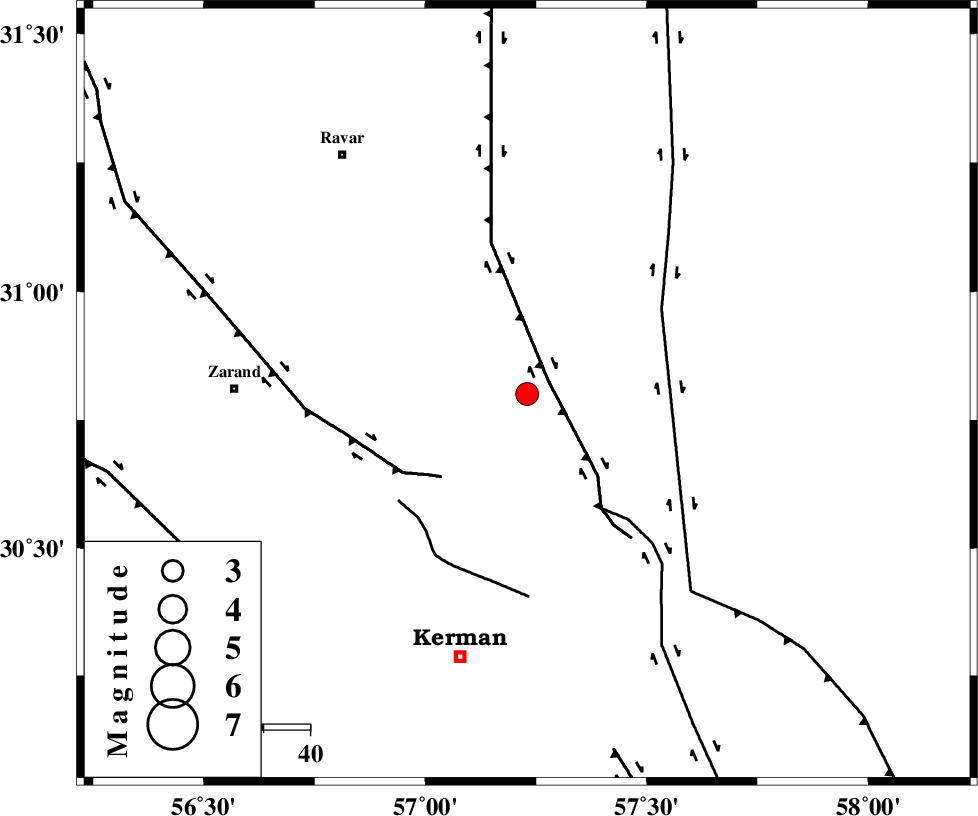

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 5 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 26 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 29 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | 1 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 157428 | IIEES SC | KRBR | Z | 360 | 1 | 2020-09-19 09:23:51 | 2020-09-20 12:09:00 | n |
| 157429 | IIEES SC | BSRN | Z | 92 | 1 | 2020-09-19 09:24:25 | 2020-09-20 12:09:00 | n |
| 157430 | IIEES SC | MEH | Z | 75 | 1 | 2020-09-19 09:25:05 | 2020-09-20 12:09:00 | n |
| 157431 | IIEES SC | YZKH | Z | 71 | 1 | 2020-09-19 09:24:43 | 2020-09-20 12:09:00 | n |
| 157432 | IIEES SC | TABS | Z | 94 | 1 | 2020-09-19 09:24:53 | 2020-09-20 12:09:00 | n |
| 157433 | IIEES SC | ZHSF | Z | 11 | 1 | 2020-09-19 09:25:06 | 2020-09-20 12:09:00 | n |
| 157434 | IIEES SC | BNDS | Z | 14 | 1 | 2020-09-19 09:25:08 | 2020-09-20 12:09:00 | n |
| 157435 | IIEES SC | SHRT | Z | 16 | 1 | 2020-09-19 09:25:33 | 2020-09-20 12:09:00 | n |
| 157436 | IIEES SC | NASN | Z | 14 | 1 | 2020-09-19 09:25:33 | 2020-09-20 12:09:00 | n |
| 157437 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-09-19 09:26:06 | 2020-09-20 12:09:00 | n |
| 157438 | IIEES SC | SHRO | Z | 6.4 | 0.83 | 2020-09-19 09:24:56 | 2020-09-20 12:09:00 | n |
| 157439 | IIEES SC | SBZV | Z | 10 | 1 | 2020-09-19 09:26:30 | 2020-09-20 12:09:00 | n |
| 157440 | IIEES SC | SBZV | Z | 6.1 | 0.6 | 2020-09-19 09:25:03 | 2020-09-20 12:09:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | KRBR | Z | IP | I | 2020-09-19 09:23:31 | 0.3 | y | 100 | 207 | |
| IIEES SC | BSRN | Z | IP | I | 2020-09-19 09:23:49 | 0.3 | y | 222 | 54 | |
| IIEES SC | MEH | Z | IP | I | 2020-09-19 09:23:53 | -0.4 | y | 255 | 285 | |
| IIEES SC | YZKH | Z | IP | I | 2020-09-19 09:24:00 | 0.1 | y | 311 | 305 | |
| IIEES SC | TABS | Z | IP | I | 2020-09-19 09:24:01 | 0.1 | y | 311 | 358 | |
| IIEES SC | ZHSF | Z | IP | I | 2020-09-19 09:24:07 | -0.2 | y | 366 | 111 | |
| IIEES SC | BNDS | Z | IP | I | 2020-09-19 09:24:10 | 0 | y | 389 | 195 | |
| IIEES SC | SHRT | Z | IP | I | 2020-09-19 09:24:14 | 0 | y | 422 | 42 | |
| IIEES SC | NASN | Z | IP | I | 2020-09-19 09:24:20 | -0.2 | y | 478 | 298 | |
| IIEES SC | SHRO | Z | IP | I | 2020-09-19 09:24:35 | 0 | y | 589 | 349 | |
| IIEES SC | SBZV | Z | IP | I | 2020-09-19 09:24:39 | 0.6 | y | 622 | 3 |
