Magnitude |
3.1 |
| Date & Time (UTC) | 2021-05-09 23:58:01.3 |
| Date & Time (Local) | 1400/2/20 04:28:01.3 |

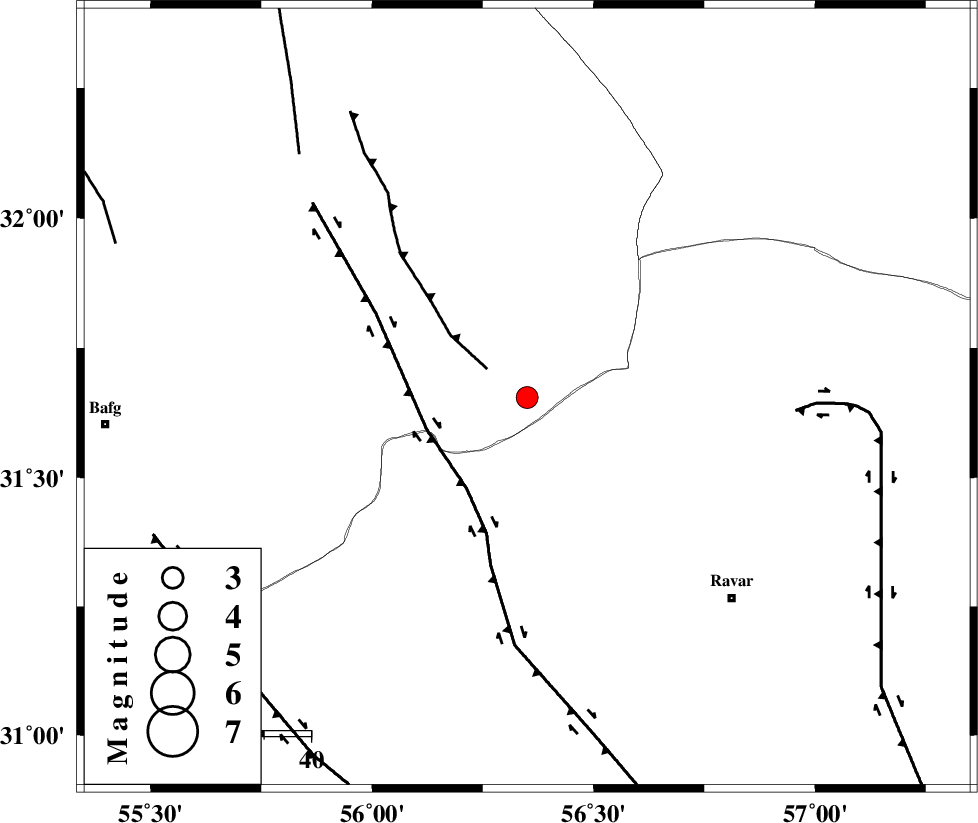

| Location | Lat:31.654 Lon: 56.35 |
| Region | Yazd Province, 61 km North-West of Ravar |
Nearest Cities |
|
| 12 km East of Asfih, Yazd Province | |
| 27 km East of Benestan, Yazd Province | |
| 27 km North of Kuhbanan, Kerman Province | |
| 33 km North of Jor, Kerman Province | |
| 39 km South East of Behabad, Yazd Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 10 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 23 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 57 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 17 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 162913 | IIEES SC | KRBR | Z | 0.5 | 1 | 2021-05-09 23:58:32 | 2021-05-12 09:45:00 | n |
| 162914 | IIEES SC | BSRN | Z | 0.2 | 1 | 2021-05-09 23:58:41 | 2021-05-12 09:45:00 | n |
| 162915 | IIEES SC | NASN | Z | 0.05 | 1 | 2021-05-09 23:58:53 | 2021-05-12 09:45:00 | n |
| 162916 | IIEES SC | SHRT | Z | 0.04 | 1 | 2021-05-09 23:59:02 | 2021-05-12 09:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | MEH | Z | EPg | E | 2021-05-09 23:58:28 | -0.7 | y | 0 | 168 | 260 |
| IIEES SC | YZKH | Z | EPg | E | 2021-05-09 23:58:32 | 0.4 | y | 0 | 185 | 296 |
| IIEES SC | KRBR | Z | EPg | E | 2021-05-09 23:58:32 | 0.3 | y | 0 | 189 | 168 |
| IIEES SC | TABS | Z | EPn | E | 2021-05-09 23:58:38 | 0.8 | y | 0 | 233 | 18 |
| IIEES SC | BSRN | Z | EPn | E | 2021-05-09 23:58:41 | -0.8 | y | 0 | 265 | 83 |
| IIEES SC | KBAM | Z | EPn | E | 2021-05-09 23:58:52 | 0.2 | y | 0 | 345 | 144 |
| IIEES SC | NASN | Z | EPn | E | 2021-05-09 23:58:53 | -0.2 | y | 0 | 357 | 291 |
| IIEES SC | SHRT | Z | EPn | E | 2021-05-09 23:59:02 | 0 | y | 0 | 431 | 59 |
| IIEES SC | SHRO | Z | EPn | E | 2021-05-09 23:59:09 | -0.3 | y | 0 | 484 | 356 |
