Magnitude |
3.4 |
| Date & Time (UTC) | 2020-08-31 05:28:27.6 |
| Date & Time (Local) | 1399/6/10 09:58:27.6 |
| Location | Lat:27.907 Lon: 53.302 |
| Region | Fars Province, 65 km North-East of Lamerd |
Nearest Cities |
|
| 13 km North West of Khonj, Fars Province | |
| 32 km South East of Seyfabad, Fars Province | |
| 38 km North West of Ard, Fars Province | |
| 39 km North West of Fishur, Fars Province | |
| 40 km South West of Balafan, Fars Province | |
| Depth | 12 km |
| Agency | |

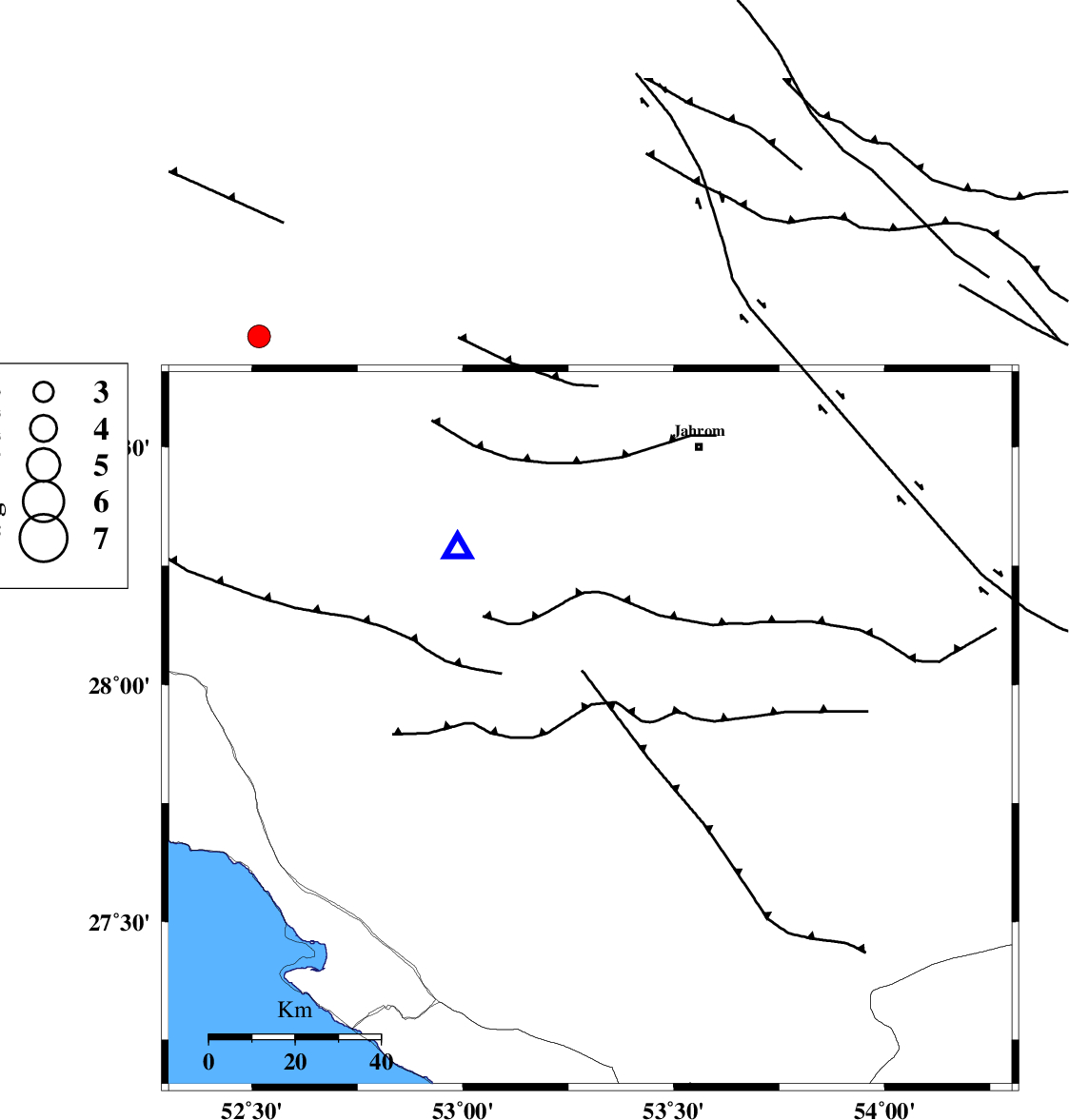

Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 38 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 63 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 65 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 194555 | IIEES SC | AHRM | Z | 0.2 | 1 | 2020-08-31 05:29:02 | 2024-08-19 10:02:00 | n |
| 194556 | IIEES SC | AHRM | Z | 0.2 | 1 | 2020-08-31 05:29:30 | 2024-08-19 10:02:00 | n |
| 194557 | IIEES SC | BNDS | Z | 0.1 | 1 | 2020-08-31 05:29:11 | 2024-08-19 10:02:00 | n |
| 194558 | IIEES SC | YZKH | Z | 0.04 | 1 | 2020-08-31 05:29:40 | 2024-08-19 10:02:00 | n |
| 194559 | IIEES SC | NASN | Z | 0.03 | 1 | 2020-08-31 05:29:43 | 2024-08-19 10:02:00 | n |
| 194560 | IIEES SC | GTMR | Z | 0.03 | 1 | 2020-08-31 05:29:55 | 2024-08-19 10:02:00 | n |
| 194561 | IIEES SC | BSRN | Z | 0.02 | 1 | 2020-08-31 05:30:04 | 2024-08-19 10:02:00 | n |
| 194562 | IIEES SC | KHMZ | Z | 0.02 | 1 | 2020-08-31 05:30:05 | 2024-08-19 10:02:00 | n |
| 194563 | IIEES SC | TABS | Z | 0.02 | 1 | 2020-08-31 05:30:06 | 2024-08-19 10:02:00 | n |
| 194564 | IIEES SC | ASAO | Z | 0.02 | 1 | 2020-08-31 05:30:14 | 2024-08-19 10:02:00 | n |
| 194565 | IIEES SC | DAMV | Z | 0.02 | 1 | 2020-08-31 05:30:23 | 2024-08-19 10:02:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | GHIR | Z | EPg | E | 2020-08-31 05:28:36 | -0.8 | y | 0 | 52 | 323 |
| IIEES SC | AHRM | Z | EPn | E | 2020-08-31 05:29:02 | -0.3 | y | 0 | 223 | 298 |
| IIEES SC | AHRM | Z | ES | E | 2020-08-31 05:29:30 | 0.9 | y | 0 | 223 | 298 |
| IIEES SC | BNDS | Z | EPn | E | 2020-08-31 05:29:11 | 0 | y | 0 | 289 | 101 |
| IIEES SC | KRBR | Z | EPn | E | 2020-08-31 05:29:27 | 0.6 | y | 0 | 408 | 56 |
| IIEES SC | YZKH | Z | EPn | E | 2020-08-31 05:29:40 | 0.6 | y | 0 | 512 | 14 |
| IIEES SC | NASN | Z | EPn | E | 2020-08-31 05:29:43 | 0.1 | y | 0 | 544 | 355 |
| IIEES SC | GTMR | Z | EPn | E | 2020-08-31 05:29:55 | -0.1 | y | 0 | 647 | 321 |
| IIEES SC | BSRN | Z | EPn | E | 2020-08-31 05:30:04 | -0.7 | y | 0 | 720 | 51 |
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-31 05:30:05 | -0.1 | y | 0 | 721 | 334 |
| IIEES SC | TABS | Z | EPn | E | 2020-08-31 05:30:06 | 0 | y | 0 | 734 | 30 |
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-31 05:30:07 | -2.1 | n | 4 | 753 | 75 |
| IIEES SC | ASAO | Z | EPn | E | 2020-08-31 05:30:14 | -0.2 | y | 0 | 800 | 337 |
| IIEES SC | DAMV | Z | EPn | E | 2020-08-31 05:30:23 | -0.2 | y | 0 | 866 | 352 |
| IIEES SC | ILBA | Z | EPn | E | 2020-08-31 05:30:30 | -0.5 | y | 0 | 929 | 313 |
| IIEES SC | ABGH | Z | EPn | E | 2020-08-31 05:30:40 | 2.2 | n | 4 | 989 | 8 |
