Magnitude |
3 |
| Date & Time (UTC) | 2020-08-07 14:53:32.4 |
| Date & Time (Local) | 1399/5/17 19:23:32.4 |

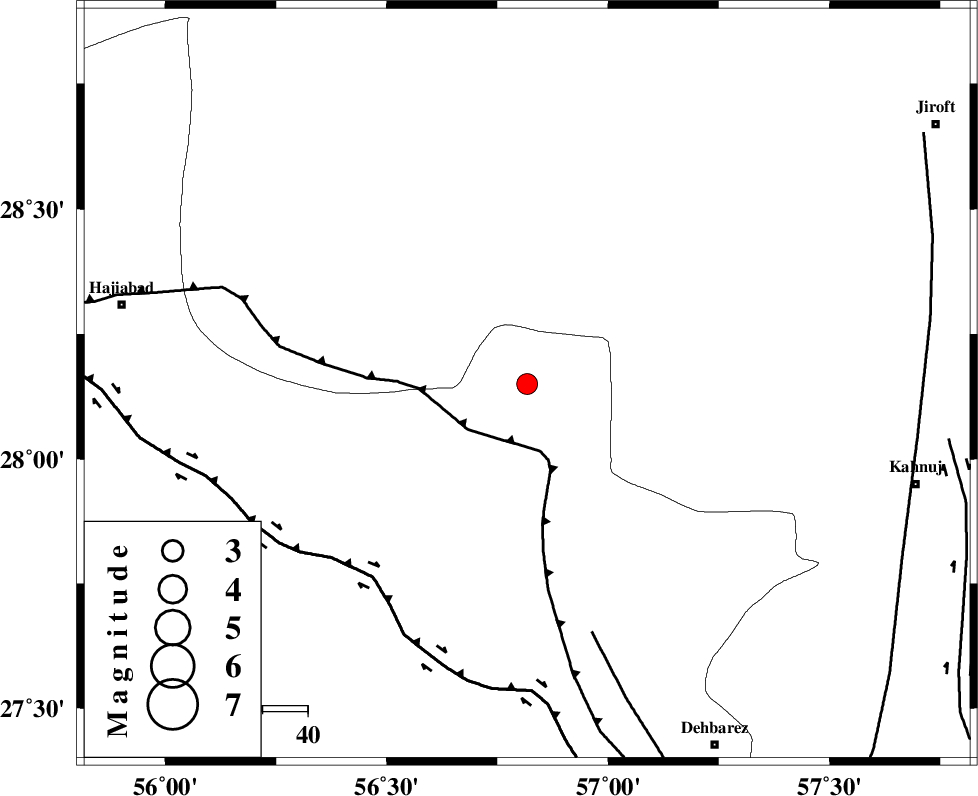

| Location | Lat:28.15 Lon: 56.817 |
| Region | Hormozgan Province, 91 km South-East of Hajiabad |
Nearest Cities |
|
| 22 km South of Sarkhan, Kerman Province | |
| 45 km North West of Faryab, Kerman Province | |
| 49 km West of Hurpasefid, Kerman Province | |
| 54 km South East of Shahmaran, Kerman Province | |
| 55 km South East of Arzuieeh, Kerman Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 55 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 57 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 12.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 194887 | IIEES SC | BNDS | Z | 0.5 | 1 | 2020-08-07 14:53:50 | 2024-09-09 11:50:00 | n |
| 194888 | IIEES SC | BNDS | Z | 0.5 | 1 | 2020-08-07 14:54:02 | 2024-09-09 11:50:00 | n |
| 194889 | IIEES SC | ZHSF | Z | 0.02 | 1 | 2020-08-07 14:54:31 | 2024-09-09 11:50:00 | n |
| 194890 | IIEES SC | BSRN | Z | 0.04 | 1 | 2020-08-07 14:54:39 | 2024-09-09 11:50:00 | n |
| 194891 | IIEES SC | YZKH | Z | 0.02 | 1 | 2020-08-07 14:54:44 | 2024-09-09 11:50:00 | n |
| 194892 | IIEES SC | NASN | Z | 0.01 | 1 | 2020-08-07 14:54:59 | 2024-09-09 11:50:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | BNDS | Z | EPg | E | 2020-08-07 14:53:50 | 0.3 | y | 0 | 105 | 217 |
| IIEES SC | BNDS | Z | ESg | E | 2020-08-07 14:54:02 | -0.4 | y | 0 | 105 | 217 |
| IIEES SC | KRBR | Z | EPn | E | 2020-08-07 14:54:06 | 1.4 | n | 4 | 203 | 358 |
| IIEES SC | GHIR | Z | EPn | E | 2020-08-07 14:54:27 | 0.8 | y | 0 | 376 | 272 |
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-07 14:54:31 | -0.2 | y | 0 | 418 | 67 |
| IIEES SC | BSRN | Z | EPn | E | 2020-08-07 14:54:39 | 0.6 | y | 0 | 478 | 28 |
| IIEES SC | YZKH | Z | EPn | E | 2020-08-07 14:54:44 | 0.6 | y | 0 | 516 | 336 |
| IIEES SC | NASN | Z | EPn | E | 2020-08-07 14:54:59 | -0.2 | y | 0 | 643 | 323 |
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-07 14:55:31 | -0.8 | y | 0 | 902 | 313 |
| IIEES SC | CHTH | Z | EPn | E | 2020-08-07 14:55:45 | -0.5 | y | 0 | 1014 | 328 |
| IIEES SC | THKV | Z | EPn | E | 2020-08-07 14:55:47 | 0.1 | y | 0 | 1028 | 327 |
| IIEES SC | MRVT | Z | EPn | E | 2020-08-07 14:55:50 | -0.3 | y | 0 | 1057 | 356 |
