Magnitude |
3 |
| Date & Time (UTC) | 2020-08-08 01:32:37.4 |
| Date & Time (Local) | 1399/5/18 06:02:37.4 |

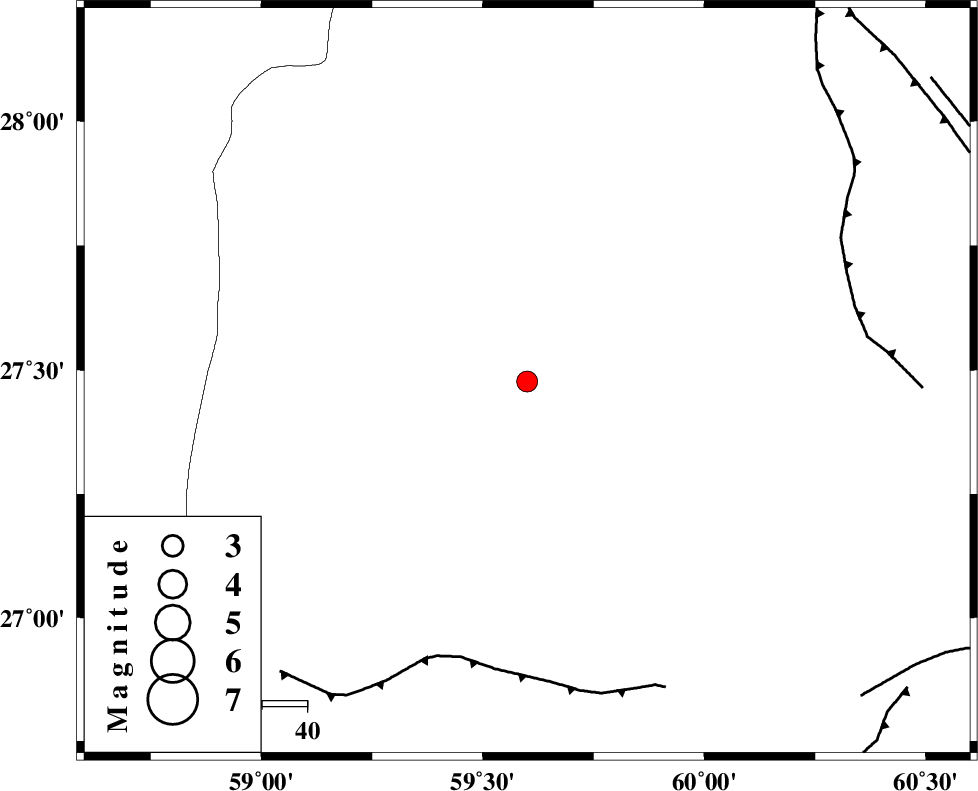

| Location | Lat:27.477 Lon: 59.6 |
| Region | Sistan va Baloochestan Province, 112 km North-West of Iranshahr |
Nearest Cities |
|
| 16 km North East of Kalemursi, Sistan va Baloochestan Province | |
| 71 km South West of Bozman, Sistan va Baloochestan Province | |
| 74 km North West of Maskutan, Sistan va Baloochestan Province | |
| 75 km South West of Kiman, Sistan va Baloochestan Province | |
| 77 km North West of Qasemabad, Sistan va Baloochestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| S_JAZMURIAN_F (Length: 91 km) , Distance to epicenter: 64 km | |
| KASKIN_F (Length: 100 km) , Distance to epicenter: 75 km | |
| MASKUTAN_F (Length: 40 km) , Distance to epicenter: 103 km | |
| Number of Phases | 6 |
| RMS | 0.5 |
| Number of Stations | 6 |
| Error in Latitude | 27 km |
| Error in Longitude | 27 km |
| Error in Depth | 999 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 194919 | IIEES SC | KRBR | Z | 0.04 | 1 | 2020-08-08 01:33:35 | 2024-09-15 09:19:00 | n |
| 194920 | IIEES SC | BSRN | Z | 0.01 | 1 | 2020-08-08 01:33:46 | 2024-09-15 09:19:00 | n |
| 194921 | IIEES SC | TABS | Z | 0.01 | 1 | 2020-08-08 01:34:15 | 2024-09-15 09:19:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-08 01:33:14 | -3.3 | n | 4 | 263 | 26 |
| IIEES SC | BNDS | Z | EPn | E | 2020-08-08 01:33:27 | 0.2 | y | 0 | 339 | 269 |
| IIEES SC | KRBR | Z | EPn | E | 2020-08-08 01:33:35 | 0.8 | y | 0 | 392 | 315 |
| IIEES SC | BSRN | Z | EPn | E | 2020-08-08 01:33:46 | -0.6 | y | 0 | 500 | 355 |
| IIEES SC | GHIR | Z | EPn | E | 2020-08-08 01:34:06 | -0.7 | y | 0 | 657 | 278 |
| IIEES SC | TABS | Z | EPn | E | 2020-08-08 01:34:15 | 0.2 | y | 0 | 724 | 341 |
