Magnitude
 4.4
Date & Time (UTC) 2026-08-13 21:23:46.0
Date & Time (Local) 1405/5/23  00:53:46.0

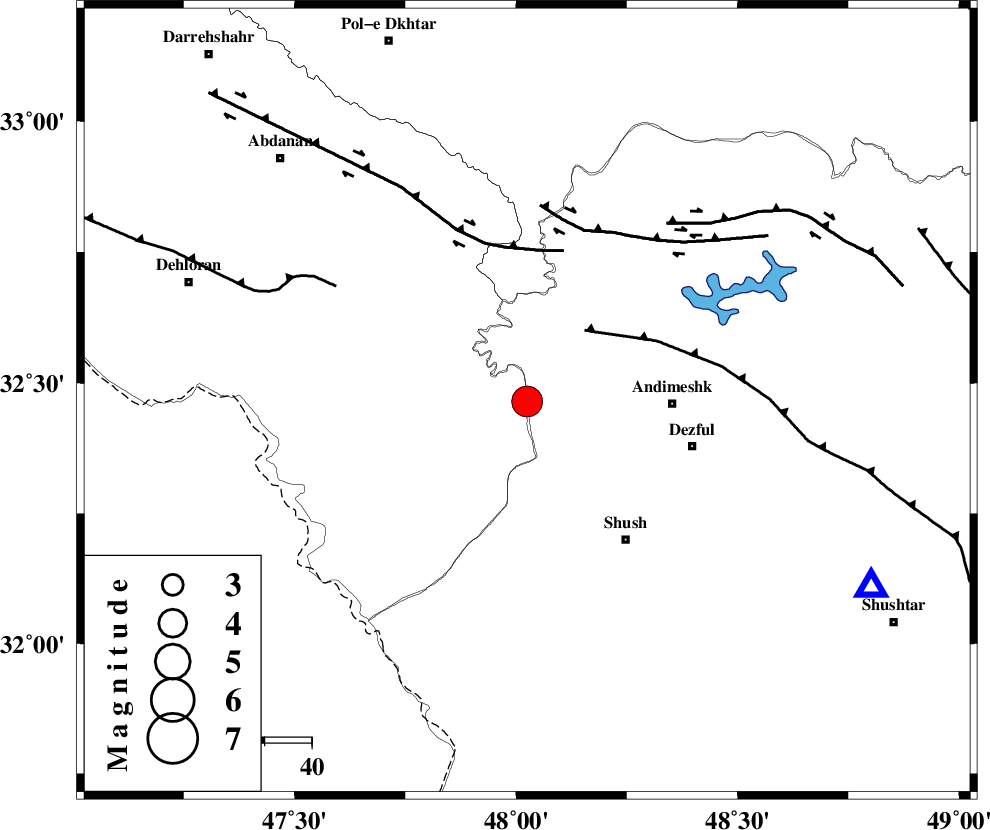

Location Lat:32.465 Lon: 48.025
Region Ilam Province, 31 km -West of Andimeshk
Nearest Cities
31 km North West of Andimeshk, Khoozestan Province
32 km South West of Hoseinieh, Khoozestan Province
36 km North West of Shush, Khoozestan Province
36 km North West of Dezful, Khoozestan Province
38 km South West of Bidruyeh, Khoozestan Province
Depth 9 km
Agency
Faults within 150 km:
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 19 km
BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 32 km
BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 38 km
Number of Phases 22
RMS 0.3
Number of Stations 22
Error in Latitude 1.8 km
Error in Longitude 1.8 km
Error in Depth 8.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
202368IIEES SCSHROZ 0.0812026-08-13 21:25:382026-08-15 07:29:00n
202369IIEES SCKRVRZ 0.112026-08-13 21:25:382026-08-15 07:29:00n
202370IIEES SCTABSZ 0.0412026-08-13 21:25:392026-08-15 07:29:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCAMS1Z EPg E2026-08-13 21:24:134.4n4135110
IIEES SCDOBZ EPg E2026-08-13 21:24:10-0.2y01476
IIEES SCHNVDZ EPn E2026-08-13 21:24:190.1y02066
IIEES SCBSR2Z EPn E2026-08-13 21:24:294.6n4244189
IIEES SCBRJZ EPn E2026-08-13 21:24:341.7n4312101
IIEES SCGHVRZ EPn E2026-08-13 21:24:422.2n437453
IIEES SCNASNZ EPn E2026-08-13 21:24:43-7.4n445085
IIEES SCAHRMZ EPn E2026-08-13 21:24:570.4y0508142
IIEES SCGIDEZ EPn E2026-08-13 21:24:590.3y052118
IIEES SCYZKHZ EPn E2026-08-13 21:24:57-13.5n461891
IIEES SCGHIRZ EPn E2026-08-13 21:25:170.2y0665134
IIEES SCSHROZ EPn E2026-08-13 21:25:380.4y083462
IIEES SCKRVRZ EPn E2026-08-13 21:25:38-0.4y083996
IIEES SCTABSZ EPn E2026-08-13 21:25:39-1.2y085981
IIEES SCKRBRZ EPn E2026-08-13 21:25:43-0.4y0877108
IIEES SCGENOZ EPn E2026-08-13 21:25:54-0.1y0966126
IIEES SCRAYNZ EPn E2026-08-13 21:26:010y01022194
IIEES SCSHRTZ EPn E2026-08-13 21:26:181y0115383
IIEES SCUOSSZ EPn E2026-08-13 21:26:17-0.3y01155136
IIEES SCZHSFZ EPn E2026-08-13 21:26:29-0.6y01257105
IIEES SCCHBRZ EPn E2026-08-13 21:26:49-2.2n41433122
IIEES SCSRVNZ EPn E2026-08-13 21:26:59-0.5y01497112
