Magnitude |
2.5 |
| Date & Time (UTC) | 2013-06-24 16:05:16.1 |
| Date & Time (Local) | 1392/4/3 20:35:16.1 |

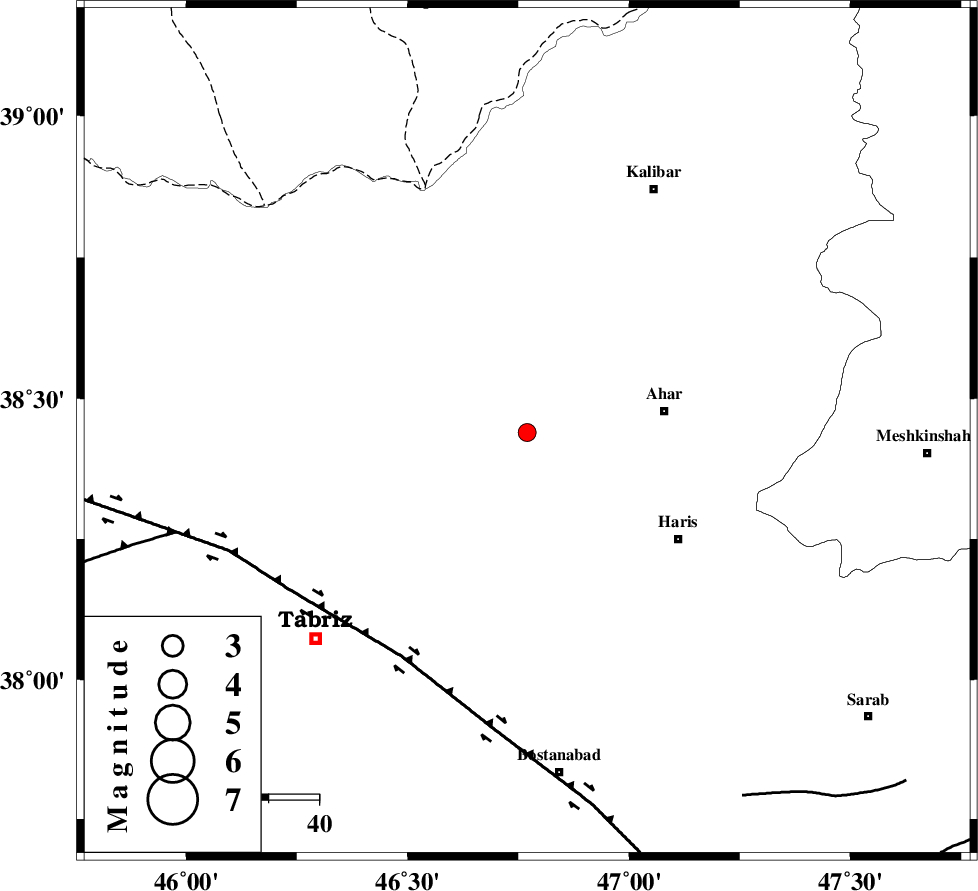

| Location | Lat:38.44 Lon: 46.77 |
| Region | Azarbaijan Sharghi Province, 27 km West of Ahar |
Nearest Cities |
|
| 13 km East of Varzagan, Azarbaijan Sharghi Province | |
| 16 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km North East of Sarand, Azarbaijan Sharghi Province | |
| 21 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 51 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | 4 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 89746 | IIEES | GRMI | E | 126.9 | 0.2 | 2013-06-24 16:05:48 | 2013-06-24 05:57:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GRMI | Z | Pg | E | 2013-06-24 16:05:34 | -0.01 | y | 106 | 67 | |
| IIEES | GRMI | N | Sg | E | 2013-06-24 16:05:47 | -0.01 | y | 106 | 67 | |
| IIEES | MAKU | Z | Pn | E | 2013-06-24 16:05:49 | 0.18 | y | 207 | 300 | |
| IIEES | MAKU | N | Sg | E | 2013-06-24 16:06:15 | -0.11 | y | 207 | 300 | |
| IIEES | ZNJK | Z | Pn | E | 2013-06-24 16:05:56 | -0.06 | y | 259 | 139 |
