Magnitude |
3.6 |
| Date & Time (UTC) | 2014-10-15 14:12:05.3 |
| Date & Time (Local) | 1393/7/23 17:42:05.3 |

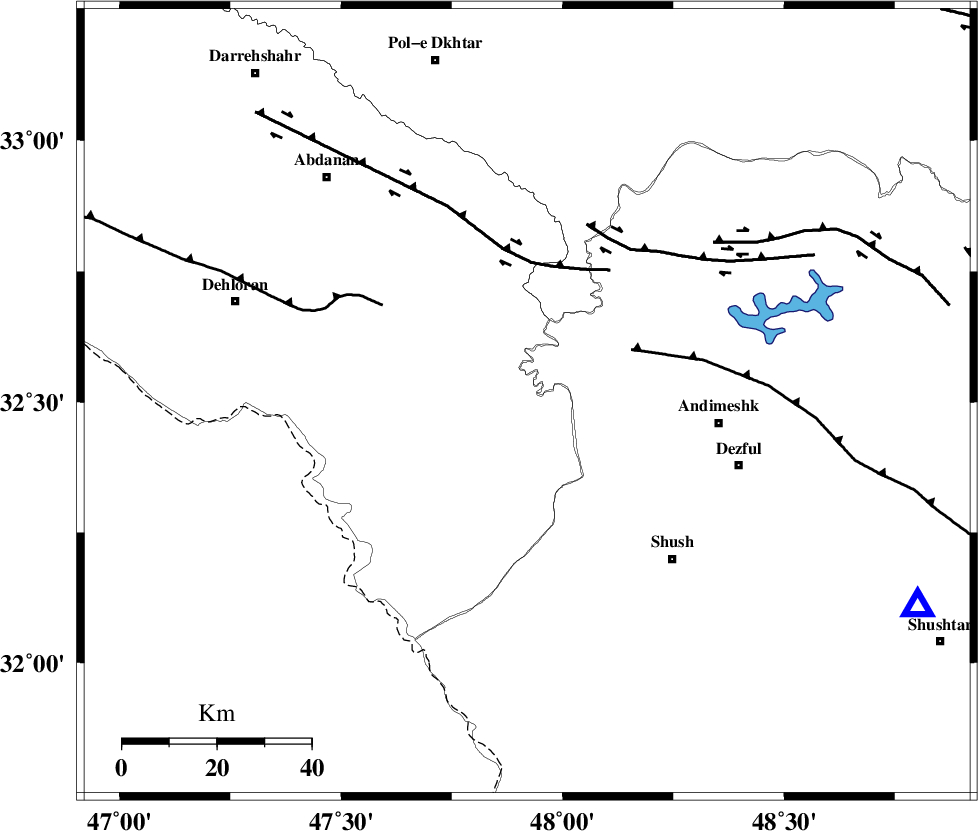

| Location | Lat:32.5 Lon: 47.92 |
| Region | Ilam Province, 41 km West of Andimeshk |
Nearest Cities |
|
| 37 km South West of Hoseinieh, Khoozestan Province | |
| 41 km North West of Andimeshk, Khoozestan Province | |
| 41 km South West of Bidruyeh, Khoozestan Province | |
| 45 km North West of Shush, Khoozestan Province | |
| 47 km North West of Dezful, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 25 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 29 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 37 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 93907 | IIEES | AHRM | N | 69.3 | 0.6 | 2014-10-15 14:14:49 | 2014-10-15 02:39:00 | n |
| 93908 | IIEES | AHRM | E | 44.2 | 0.6 | 2014-10-15 14:14:49 | 2014-10-15 02:39:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2014-10-15 14:12:41 | -0.08 | y | 235 | 54 | |
| IIEES | KHMZ | E | Sg | E | 2014-10-15 14:13:11 | 0 | y | 235 | 54 | |
| IIEES | SNGE | Z | Pn | E | 2014-10-15 14:12:49 | 0.02 | y | 292 | 350 | |
| IIEES | ASAO | Z | Pn | E | 2014-10-15 14:12:50 | -0.09 | y | 299 | 40 | |
| IIEES | ASAO | E | Sg | E | 2014-10-15 14:13:29 | 0.01 | y | 299 | 40 | |
| IIEES | GHVR | Z | Pn | E | 2014-10-15 14:12:59 | 0.16 | y | 379 | 54 | |
| IIEES | GHVR | E | S | E | 2014-10-15 14:13:39 | 0.01 | y | 379 | 54 |
