Magnitude |
2.5 |
| Date & Time (UTC) | 2015-09-06 01:35:42.5 |
| Date & Time (Local) | 1394/6/15 06:05:42.5 |

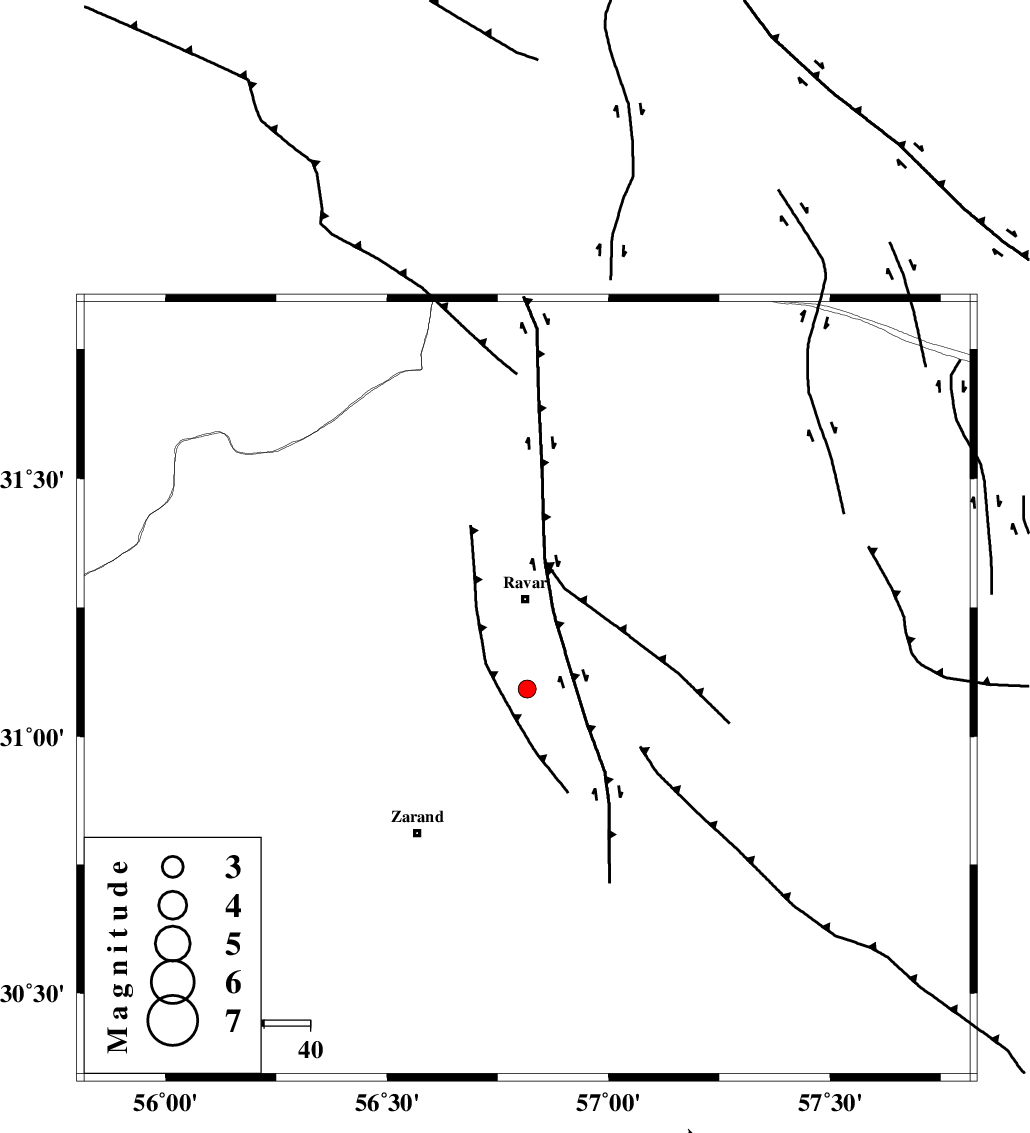

| Location | Lat:31.092 Lon: 56.816 |
| Region | Kerman Province, 19 km South of Ravar |
Nearest Cities |
|
| 19 km South of Ravar, Kerman Province | |
| 20 km North East of Ahmadi, Kerman Province | |
| 25 km North East of Dasht-e khak, Kerman Province | |
| 26 km South of Dehali, Kerman Province | |
| 28 km North of Hatkan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 32 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 32 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 57 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 100743 | IIEES | KRBR | N | 85.4 | 0.39 | 2015-09-06 01:36:19 | 2015-09-06 07:20:00 | n |
| 100744 | IIEES | YZKH | E | 23.1 | 0.31 | 2015-09-06 01:36:58 | 2015-09-06 07:20:00 | n |
| 100745 | IIEES | YZKH | N | 21.7 | 0.7 | 2015-09-06 01:37:01 | 2015-09-06 07:20:00 | n |
| 100746 | IIEES | TABS | E | 48.7 | 0.42 | 2015-09-06 01:37:15 | 2015-09-06 07:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2015-09-06 01:36:03 | 0.15 | y | 123 | 183 | |
| IIEES | KRBR | N | Sg | E | 2015-09-06 01:36:18 | -0.07 | y | 123 | 183 | |
| IIEES | BSRN | Z | Pn | E | 2015-09-06 01:36:19 | -0.31 | y | 240 | 66 | |
| IIEES | YZKH | Z | Pn | E | 2015-09-06 01:36:22 | 0.06 | y | 255 | 305 | |
| IIEES | YZKH | N | Sg | E | 2015-09-06 01:36:54 | -0.16 | y | 255 | 305 | |
| IIEES | TABS | Z | Pn | E | 2015-09-06 01:36:25 | 0.35 | y | 285 | 6 |
