Magnitude
 2.6
Date & Time (UTC) 2015-09-05 09:20:54.4
Date & Time (Local) 1394/6/14  13:50:54.4

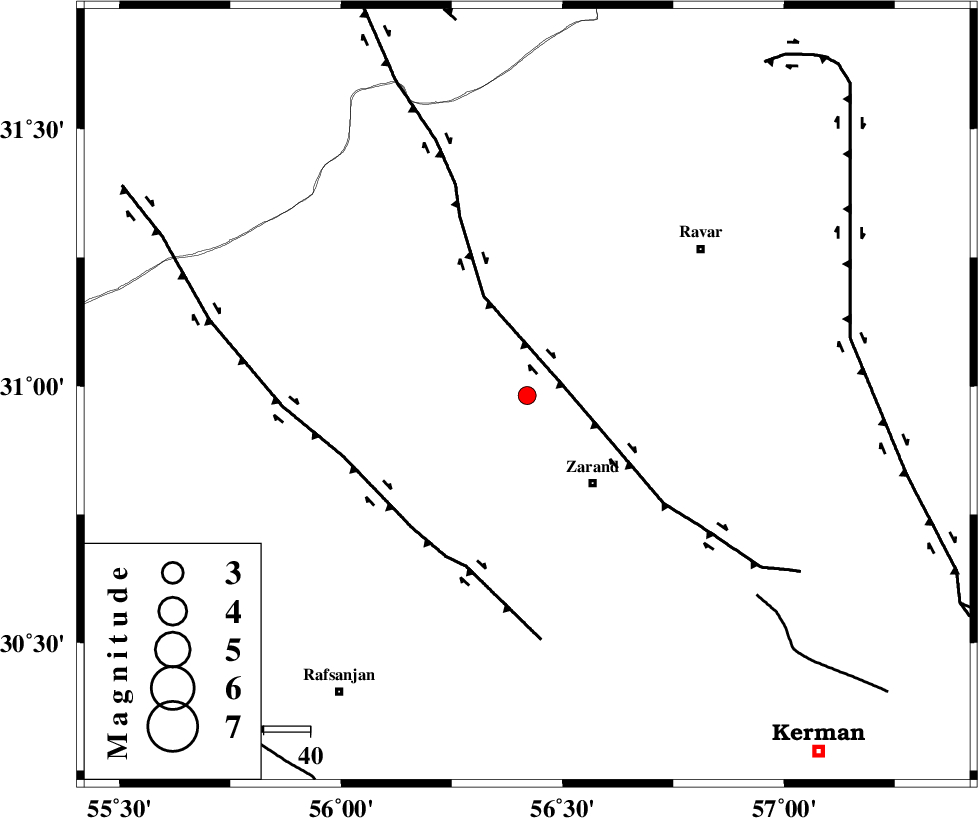

Location Lat:30.982 Lon: 56.42
Region Kerman Province, 24 km North-West of Zarand
Nearest Cities
16 km West of Dasht-e khak, Kerman Province
19 km South of Toghroljerd, Kerman Province
20 km West of Ahmadi, Kerman Province
24 km North West of Zarand, Kerman Province
25 km North West of Mohammadabad, Kerman Province
Depth 17 km
Agency
Faults within 150 km:
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 8 km
DARIVAN_F (Length: 131 km) , Distance to epicenter: 38 km
CHATRUD_F (Length: 37 km) , Distance to epicenter: 66 km
Number of Phases 4
RMS 0
Number of Stations 3
Error in Latitude 2.3 km
Error in Longitude 2.4 km
Error in Depth 5.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
100751IIEESKRBRE 197.50.252015-09-05 09:21:312015-09-06 07:44:00n
100752IIEESKRBRN 139.50.192015-09-05 09:21:342015-09-06 07:44:00n
100753IIEESYZKHN 50.90.432015-09-05 09:22:012015-09-06 07:44:00n
100754IIEESYZKHE 53.10.342015-09-05 09:22:072015-09-06 07:44:00n
100755IIEESBSRNE 15.90.412015-09-05 09:22:262015-09-06 07:44:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESKRBRZ Pg E2015-09-05 09:21:140y116163
IIEESYZKHZ Pn E2015-09-05 09:21:310y233312
IIEESBSRNZ Pn E2015-09-05 09:21:360y27966
IIEESBSRNN Sg E2015-09-05 09:22:130y27966
