Magnitude |
3.6 |
| Date & Time (UTC) | 2015-09-23 18:00:56.5 |
| Date & Time (Local) | 1394/7/1 21:30:56.5 |
| Location | Lat:31.622 Lon: 50.96 |
| Region | Chaharmahal Bakhtiari Province, 20 km North-East of Lordegan |
Nearest Cities |
|
| 12 km North of Aluni, Chaharmahal Bakhtiari Province | |
| 16 km East of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 20 km North East of Lordegan, Chaharmahal Bakhtiari Province | |
| 29 km North East of Sardasht, Chaharmahal Bakhtiari Province | |
| 33 km South West of Gandoman, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |

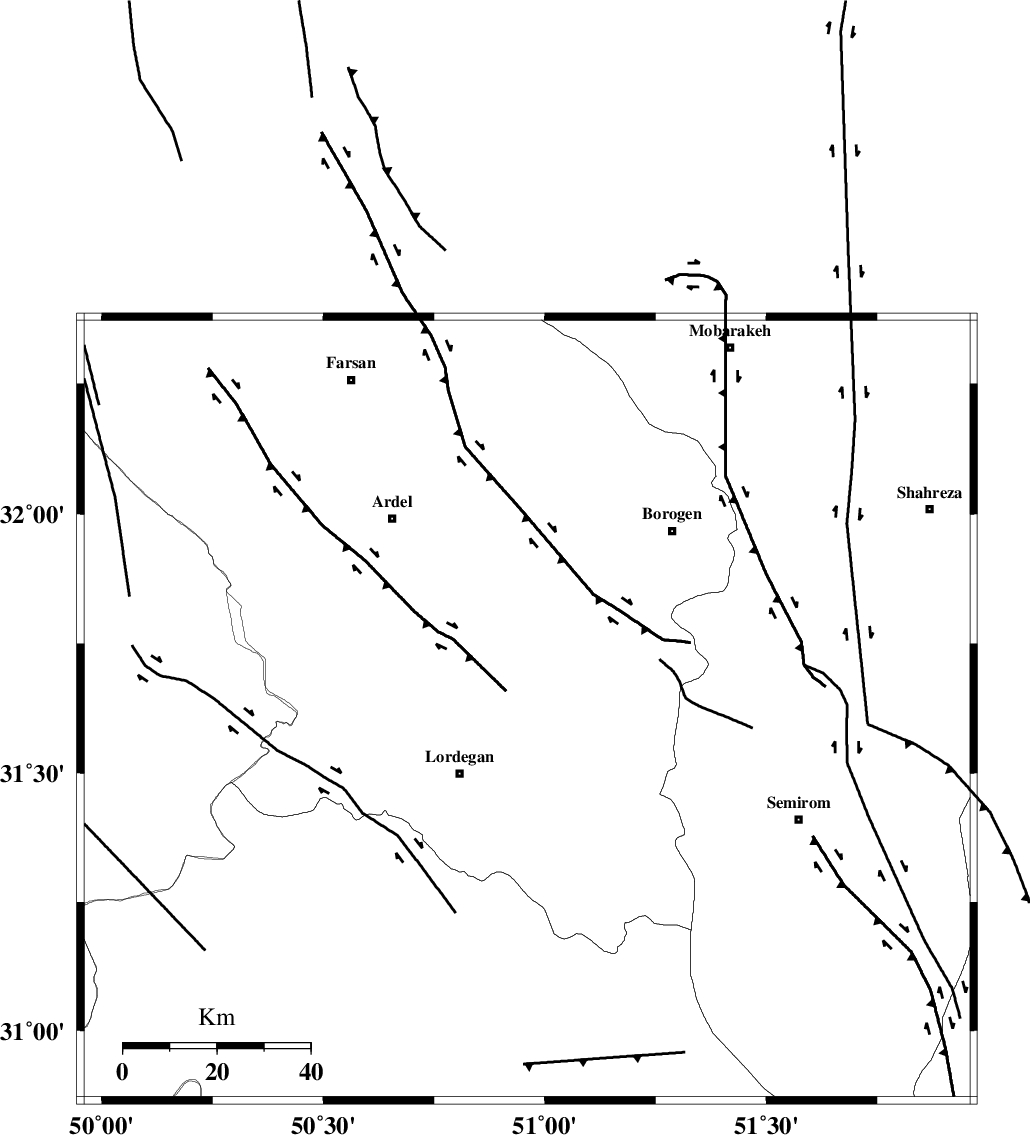

Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 7 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 14 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 21 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | 2.4 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 101119 | IIEES | NASN | E | 718.1 | 0.51 | 2015-09-23 18:02:06 | 2015-09-26 07:16:00 | n |
| 101120 | IIEES | NASN | N | 452.3 | 0.65 | 2015-09-23 18:02:12 | 2015-09-26 07:16:00 | n |
| 101121 | IIEES | AHRM | N | 154.2 | 0.76 | 2015-09-23 18:02:40 | 2015-09-26 07:16:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pn | E | 2015-09-23 18:01:31 | 0.07 | y | 218 | 53 | |
| IIEES | KHMZ | Z | Pn | E | 2015-09-23 18:01:35 | -0.07 | y | 253 | 339 | |
| IIEES | AHRM | Z | Pn | E | 2015-09-23 18:01:42 | -0.24 | y | 307 | 174 | |
| IIEES | GHVR | Z | Pn | E | 2015-09-23 18:01:43 | -0.11 | y | 318 | 5 | |
| IIEES | GHVR | N | Sg | E | 2015-09-23 18:02:25 | -0.3 | y | 318 | 5 | |
| IIEES | YZKH | Z | Pn | E | 2015-09-23 18:01:48 | 0.05 | y | 354 | 75 | |
| IIEES | CHTH | Z | Pn | E | 2015-09-23 18:02:03 | 0.21 | y | 476 | 2 | |
| IIEES | KRBR | Z | Pn | E | 2015-09-23 18:02:16 | -0.01 | y | 584 | 107 | |
| IIEES | ZNJK | Z | Pn | E | 2015-09-23 18:02:19 | 0.6 | y | 598 | 340 | |
| IIEES | TABS | Z | Pn | E | 2015-09-23 18:02:21 | 0.16 | y | 620 | 67 | |
| IIEES | SHRO | Z | Pn | E | 2015-09-23 18:02:27 | -0.1 | y | 675 | 43 | |
| IIEES | BSRN | Z | Pn | E | 2015-09-23 18:02:40 | 0.02 | y | 774 | 85 | |
| IIEES | MRVT | Z | Pn | E | 2015-09-23 18:02:45 | 0.11 | y | 818 | 34 |
