eventspec – IIEES Earthquake Process Program

Magnitude	3.2
Date & Time (UTC)	2015-10-10 23:21:00.3
Date & Time (Local)	1394/7/19 02:51:00.3

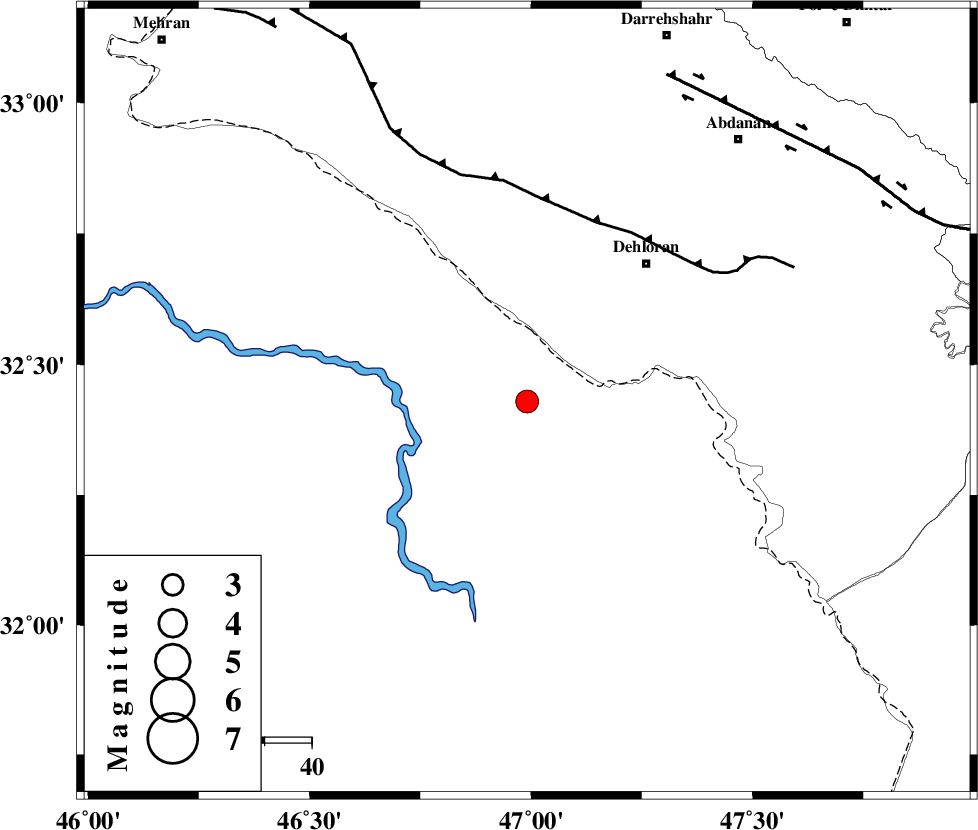

Location	Lat:32.429 Lon: 46.991
Region	Iraq, 39 km South-West of Dehloran
Nearest Cities
	37 km South West of Musian, Ilam Province
	39 km South West of Dehloran, Ilam Province
	44 km South of Bishehzar, Ilam Province
	71 km South West of Abdanan, Ilam Province
	75 km South West of Sarabbagh, Ilam Province
Depth	17 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 41 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 76 km
	ZFF4 (Length: 128 km) , Distance to epicenter: 96 km
Number of Phases	8
RMS	0.2
Number of Stations	6
Error in Latitude	7.1 km
Error in Longitude	7.8 km
Error in Depth	5.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
101611	IIEES	NASN	E	21.7	0.5	2015-10-10 23:23:13	2015-10-11 07:06:00	n
101612	IIEES	NASN	N	13.2	0.3	2015-10-10 23:23:15	2015-10-11 07:06:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	KHMZ	Z	Pn	E	2015-10-10 23:21:47	0.27	y	313	62
IIEES	ASAO	Z	Pn	E	2015-10-10 23:21:53	0.08	y	367	49
IIEES	ASAO	N	Sg	E	2015-10-10 23:22:43	-0.01	y	367	49
IIEES	GHVR	Z	Pn	E	2015-10-10 23:22:04	-0.02	y	456	59
IIEES	GHVR	E	S	E	2015-10-10 23:22:51	-0.02	y	456	59
IIEES	CHTH	Z	Pn	E	2015-10-10 23:22:14	-0.36	y	542	44
IIEES	NASN	Z	Pn	E	2015-10-10 23:22:15	-0.2	y	548	84
IIEES	DAMV	Z	P	E	2015-10-10 23:22:20	0.12	y	581	51
