Magnitude |
3.3 |
| Date & Time (UTC) | 2015-10-13 21:41:49.7 |
| Date & Time (Local) | 1394/7/22 01:11:49.7 |

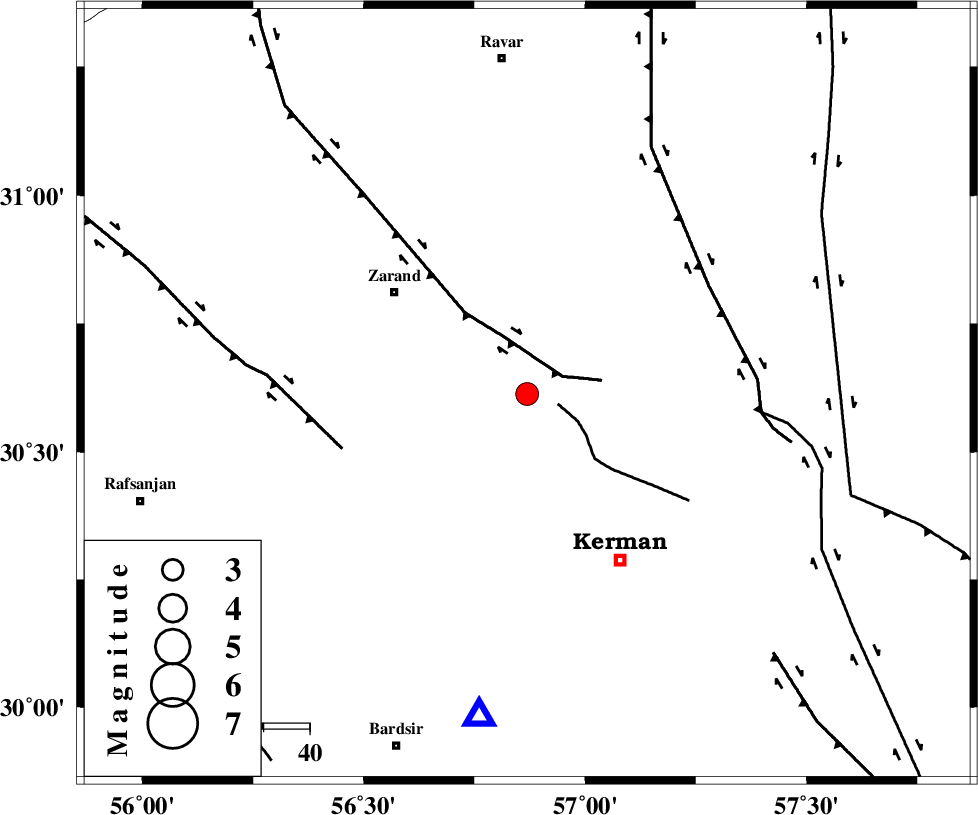

| Location | Lat:30.613 Lon: 56.869 |
| Region | Kerman Province, 36 km South-East of Zarand |
Nearest Cities |
|
| 4 km North of Chatrud, Kerman Province | |
| 6 km North of Kazemabad, Kerman Province | |
| 8 km North of Hutak, Kerman Province | |
| 14 km South of Khankuk, Kerman Province | |
| 19 km South West of Hejdak, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 7 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 42 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 101725 | IIEES | KRBR | E | 860 | 0.18 | 2015-10-13 21:42:11 | 2015-10-14 08:48:00 | n |
| 101726 | IIEES | KRBR | N | 848.8 | 0.23 | 2015-10-13 21:42:14 | 2015-10-14 08:48:00 | n |
| 101727 | IIEES | BSRN | E | 210.5 | 0.29 | 2015-10-13 21:43:06 | 2015-10-14 08:48:00 | n |
| 101728 | IIEES | BSRN | N | 174.7 | 0.29 | 2015-10-13 21:43:10 | 2015-10-14 08:48:00 | n |
| 101729 | IIEES | BNDS | N | 90.3 | 0.33 | 2015-10-13 21:43:33 | 2015-10-14 08:48:00 | n |
| 101730 | IIEES | BNDS | E | 89 | 0.33 | 2015-10-13 21:43:36 | 2015-10-14 08:48:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2015-10-13 21:42:01 | -0.21 | y | 70.6 | 189 | |
| IIEES | KRBR | N | Sg | E | 2015-10-13 21:42:11 | -0.19 | y | 70.6 | 189 | |
| IIEES | BSRN | Z | Pn | E | 2015-10-13 21:42:29 | -0.28 | y | 262 | 55 | |
| IIEES | YZKH | Z | Pn | E | 2015-10-13 21:42:34 | 0.43 | y | 293 | 313 | |
| IIEES | YZKH | E | Sg | E | 2015-10-13 21:43:11 | -0.44 | y | 293 | 313 | |
| IIEES | TABS | Z | Pn | E | 2015-10-13 21:42:39 | 0.1 | y | 338 | 4 | |
| IIEES | BNDS | Z | Pn | E | 2015-10-13 21:42:42 | 0.45 | y | 363 | 191 | |
| IIEES | NASN | Z | Pn | E | 2015-10-13 21:42:54 | 0.31 | y | 455 | 303 |
