Magnitude |
4 |
| Date & Time (UTC) | 2015-10-20 15:17:06.4 |
| Date & Time (Local) | 1394/7/28 18:47:06.4 |

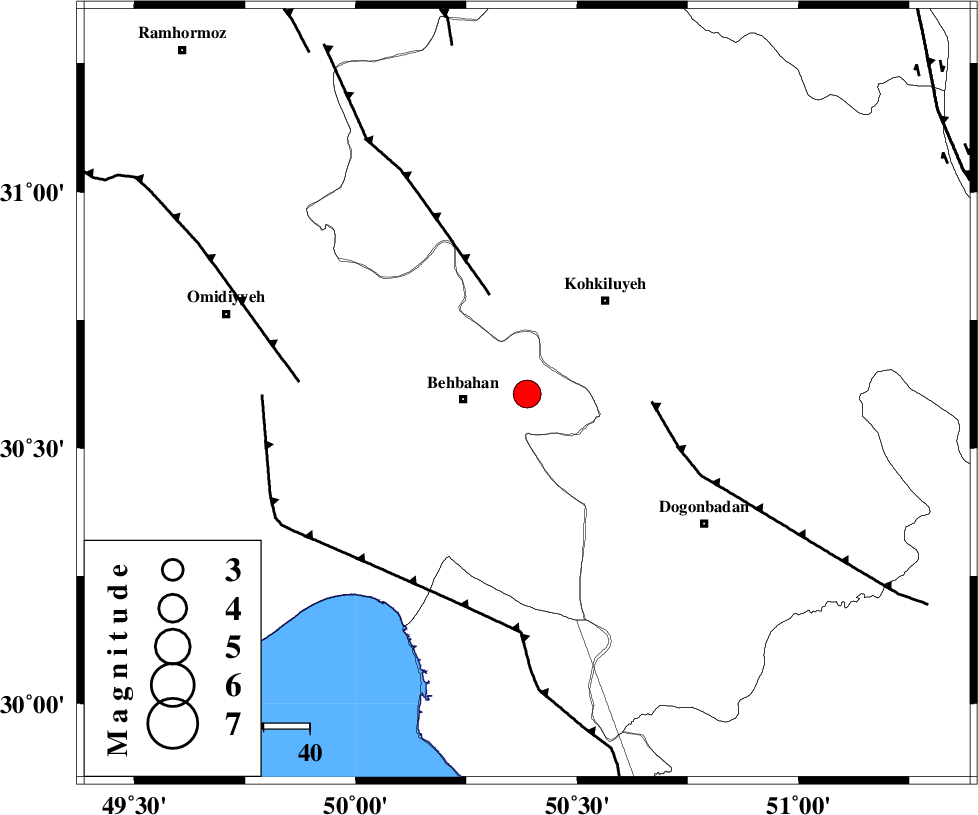

| Location | Lat:30.606 Lon: 50.387 |
| Region | Khoozestan Province, 14 km -East of Behbahan |
Nearest Cities |
|
| 9 km of Mansuriyeh, Khoozestan Province | |
| 14 km North East of Behbahan, Khoozestan Province | |
| 23 km South East of Dodange-ye bozorg, Khoozestan Province | |
| 26 km South West of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 36 km North East of Sardasht, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF4 (Length: 62 km) , Distance to epicenter: 23 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 27 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 48 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 16 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 101938 | IIEES | AHRM | E | 673.7 | 0.44 | 2015-10-20 15:18:16 | 2015-10-21 06:25:00 | n |
| 101939 | IIEES | NASN | N | 579.3 | 0.32 | 2015-10-20 15:18:37 | 2015-10-21 06:25:00 | n |
| 101940 | IIEES | NASN | E | 624.7 | 0.24 | 2015-10-20 15:18:45 | 2015-10-21 06:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2015-10-20 15:17:40 | 0.08 | y | 212 | 155 | |
| IIEES | AHRM | N | Sg | E | 2015-10-20 15:18:06 | -0.06 | y | 212 | 155 | |
| IIEES | NASN | Z | Pn | E | 2015-10-20 15:17:56 | 0.2 | y | 334 | 43 | |
| IIEES | KHMZ | Z | Pn | E | 2015-10-20 15:17:58 | 0.32 | y | 350 | 354 | |
| IIEES | ASAO | Z | Pn | E | 2015-10-20 15:18:08 | 0.09 | y | 438 | 356 | |
| IIEES | YZKH | Z | Pn | E | 2015-10-20 15:18:09 | 0.07 | y | 446 | 63 | |
| IIEES | DAMV | Z | Pn | E | 2015-10-20 15:18:25 | -0.04 | y | 577 | 14 | |
| IIEES | THKV | Z | Pn | E | 2015-10-20 15:18:27 | -0.23 | y | 591 | 4 | |
| IIEES | CHTH | Z | Pn | E | 2015-10-20 15:18:27 | -0.2 | y | 592 | 6 | |
| IIEES | KRBR | Z | Pn | E | 2015-10-20 15:18:31 | 0.06 | y | 617 | 95 | |
| IIEES | BNDS | Z | Pn | E | 2015-10-20 15:18:37 | 0.28 | y | 666 | 121 | |
| IIEES | ZNJK | Z | Pn | E | 2015-10-20 15:18:39 | -0.18 | y | 691 | 347 | |
| IIEES | TABS | Z | Pn | E | 2015-10-20 15:18:43 | -0.07 | y | 719 | 60 | |
| IIEES | BSRN | Z | Pn | E | 2015-10-20 15:18:58 | -0.71 | y | 845 | 77 | |
| IIEES | GRMI | Z | Pn | E | 2015-10-20 15:19:10 | -0.49 | y | 938 | 347 | |
| IIEES | MRVT | Z | Pn | E | 2015-10-20 15:19:10 | -0.41 | y | 942 | 32 | |
| IIEES | BJRD | Z | Pn | E | 2015-10-20 15:19:20 | 0.23 | y | 1018 | 38 |
