Magnitude |
2.6 |
| Date & Time (UTC) | 2015-10-24 17:48:38.2 |
| Date & Time (Local) | 1394/8/2 21:18:38.2 |

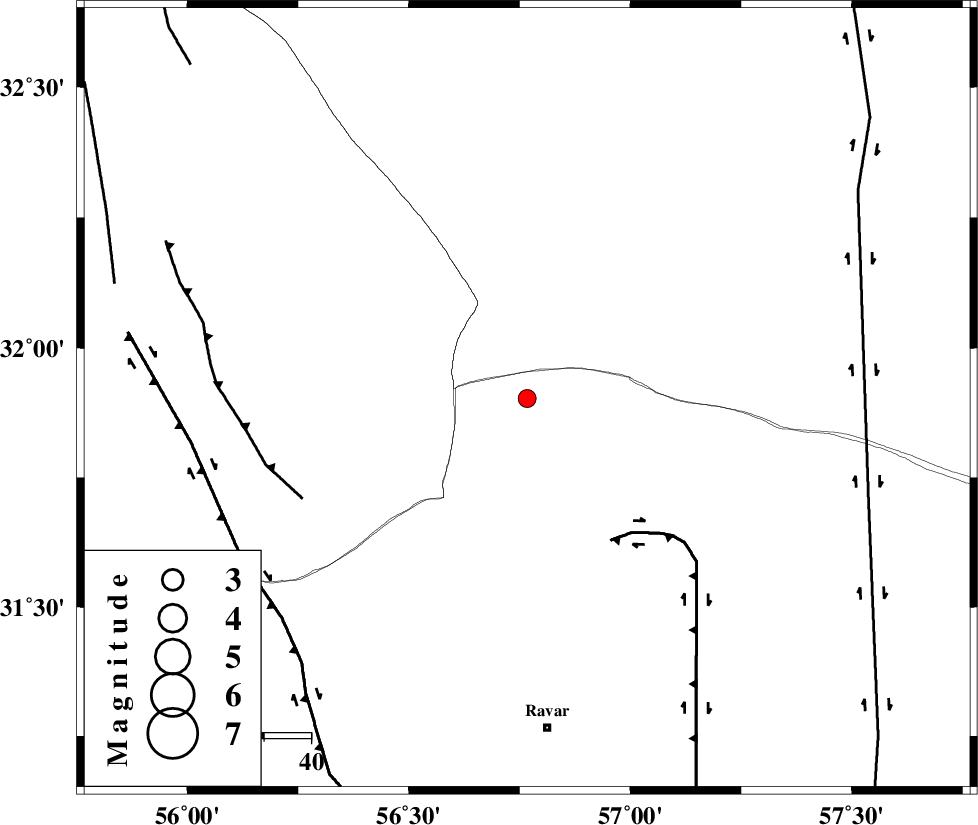

| Location | Lat:31.902 Lon: 56.767 |
| Region | Kerman Province, 71 km North of Ravar |
Nearest Cities |
|
| 57 km North East of Asfih, Yazd Province | |
| 64 km North of Dehali, Kerman Province | |
| 67 km North East of Benestan, Yazd Province | |
| 70 km North East of Behabad, Yazd Province | |
| 70 km North East of Kuhbanan, Kerman Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 35 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 52 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 70 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 4 |
| Error in Latitude | 2.4 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 102016 | IIEES | TABS | N | 67.2 | 0.3 | 2015-10-24 17:49:38 | 2015-10-25 11:28:00 | n |
| 102017 | IIEES | YZKH | E | 107.5 | 0.36 | 2015-10-24 17:49:40 | 2015-10-25 11:28:00 | n |
| 102018 | IIEES | KRBR | N | 31.8 | 0.2 | 2015-10-24 17:49:40 | 2015-10-25 11:28:00 | n |
| 102019 | IIEES | KRBR | E | 30.5 | 0.2 | 2015-10-24 17:49:41 | 2015-10-25 11:28:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2015-10-24 17:49:10 | -0.03 | y | 197 | 10 | |
| IIEES | TABS | N | Sg | E | 2015-10-24 17:49:34 | 0.36 | y | 197 | 10 | |
| IIEES | YZKH | Z | Pn | E | 2015-10-24 17:49:12 | 0.32 | y | 212 | 285 | |
| IIEES | YZKH | E | Sg | E | 2015-10-24 17:49:38 | -0.41 | y | 212 | 285 | |
| IIEES | KRBR | Z | Pn | E | 2015-10-24 17:49:12 | 0.38 | y | 213 | 180 | |
| IIEES | KRBR | N | Sg | E | 2015-10-24 17:49:38 | 0.08 | y | 213 | 180 | |
| IIEES | BSRN | Z | Pn | E | 2015-10-24 17:49:12 | -0.7 | y | 223 | 88 |
