Magnitude |
2.7 |
| Date & Time (UTC) | 2015-11-07 13:32:40.6 |
| Date & Time (Local) | 1394/8/16 17:02:40.6 |
| Location | Lat:31.07 Lon: 51.532 |
| Region | Esfahan Province, 24 km North of Sisakht |
Nearest Cities |
|
| 6 km North of Kameh, Esfahan Province | |
| 23 km South West of Hanae, Esfahan Province | |
| 24 km North of Sisakht, Kohkiluieh va boyerahmad Province | |
| 27 km East of Meymand, Kohkiluieh va boyerahmad Province | |
| 31 km North East of Kerik, Kohkiluieh va boyerahmad Province | |
| Depth | 18 km |
| Agency | |

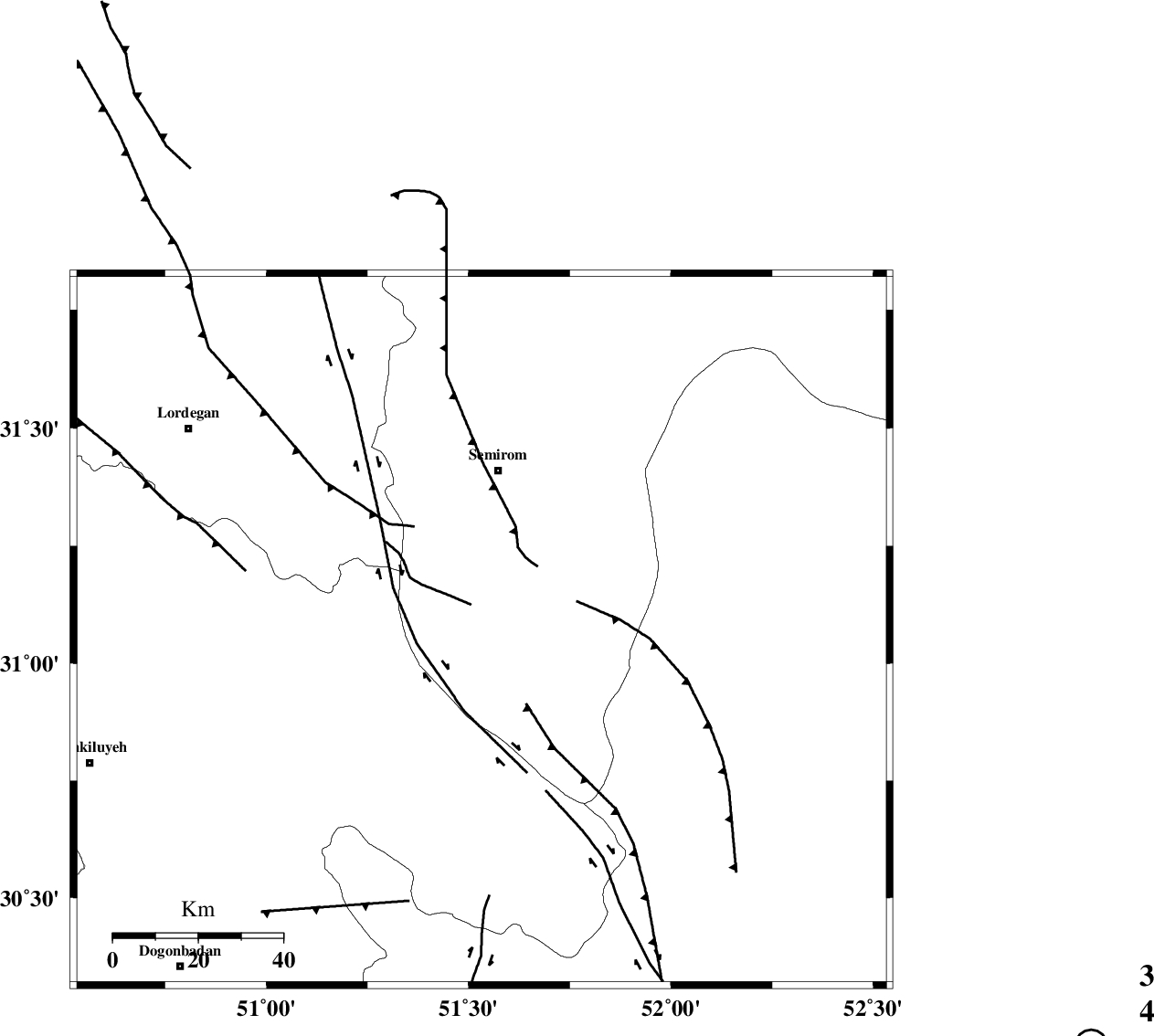

Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 16 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 41 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 49 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | 3.5 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 102252 | IIEES | YZKH | E | 15 | 0.61 | 2015-11-07 13:34:12 | 2015-11-08 01:00:00 | n |
| 102253 | IIEES | SNGE | N | 3 | 0.54 | 2015-11-07 13:35:48 | 2015-11-08 01:00:00 | n |
| 102254 | IIEES | TABS | E | 7.9 | 0.95 | 2015-11-07 13:35:37 | 2015-11-08 01:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pn | E | 2015-11-07 13:33:16 | -0.06 | y | 227 | 32 | |
| IIEES | NASN | N | Sg | E | 2015-11-07 13:33:45 | 0 | y | 227 | 32 | |
| IIEES | YZKH | Z | Pn | E | 2015-11-07 13:33:28 | -0.04 | y | 325 | 62 | |
| IIEES | YZKH | N | Sn | 2015-11-07 13:34:03 | 0.01 | y | 325 | 62 | ||
| IIEES | KHMZ | Z | Pn | E | 2015-11-07 13:33:29 | -0.07 | y | 331 | 334 | |
| IIEES | GHVR | Z | Pn | E | 2015-11-07 13:33:35 | 0 | y | 379 | 356 | |
| IIEES | ASAO | Z | Pn | E | 2015-11-07 13:33:39 | 0.11 | y | 411 | 340 | |
| IIEES | SNGE | Z | Pn | E | 2015-11-07 13:34:20 | 18.7 | n | 4 | 593 | 320 |
| IIEES | TABS | Z | P | E | 2015-11-07 13:34:02 | 0.11 | y | 599 | 60 |
